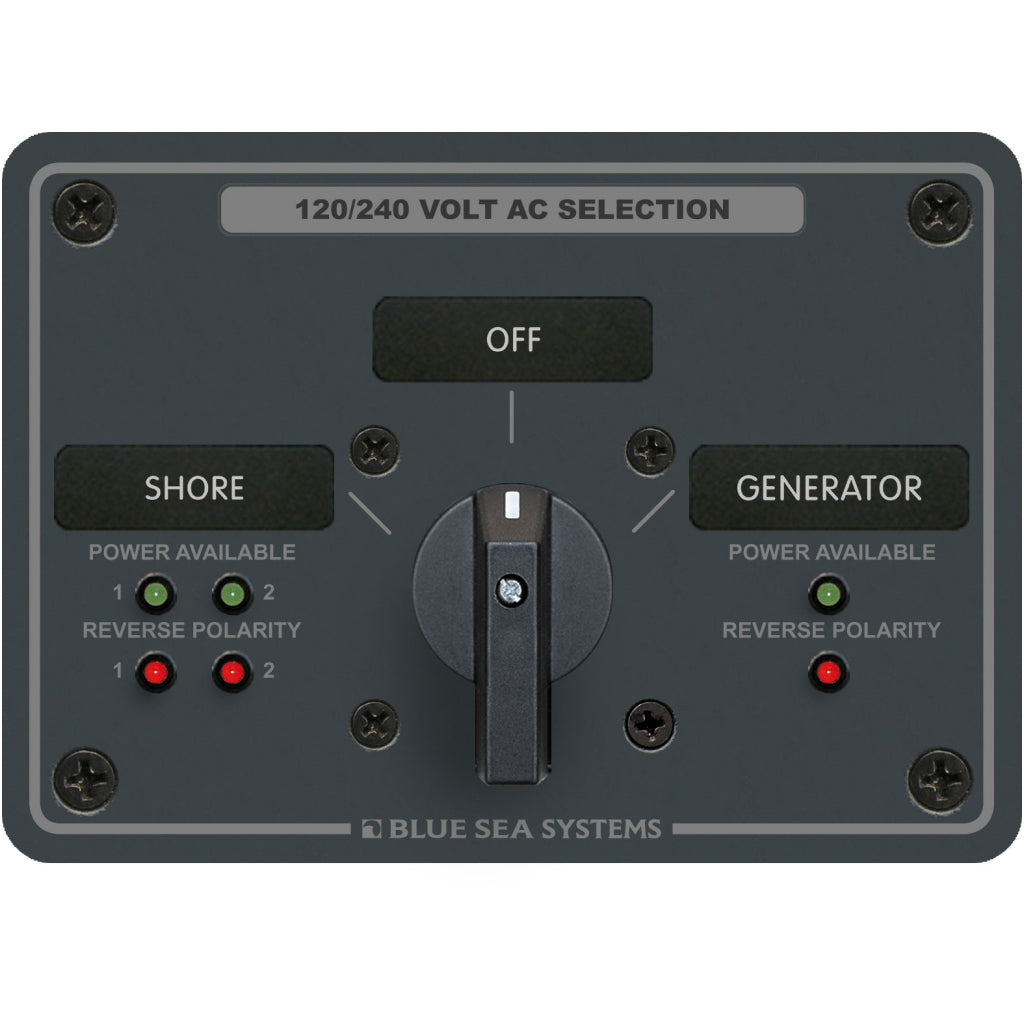

Blue Sea 30A 2 Pos. AC Rotary Switch Panel

Item# 8386

Features:

• Switches between 2 - 120 Volt AC shore power sources and 1 - 120/240 Volt AC source to 2 - 120V AC load groups
• Includes 9011 heavy duty industrial rated switch
• Two-part polyurethane slate gray finish
• Heavy 1/8" aluminum 5052 alloy
• Red reverse polarity LED indicators
• Green power available LED indicators
• Switches AC sources
• Compact solution when circuit protection is provided elsewhere
• Allows connecting one of two or three different AC sources to one circuit
• Includes heavy duty industrial-rated switch
• Red reverse polarity LED indicators
• Green power-available LED indicators

Specifications:

• Positions:2 OFF
• Nominal Voltage:240V AC
• Poles:4
• Maximum Amperage:30A
• Source In:3
• Height:3.75in (95.25 mm)
• Width:5.25in (133.35 mm)
• Depth:2.98in (75.69 mm)
• Weight:0.76lb (0.34 kg)
