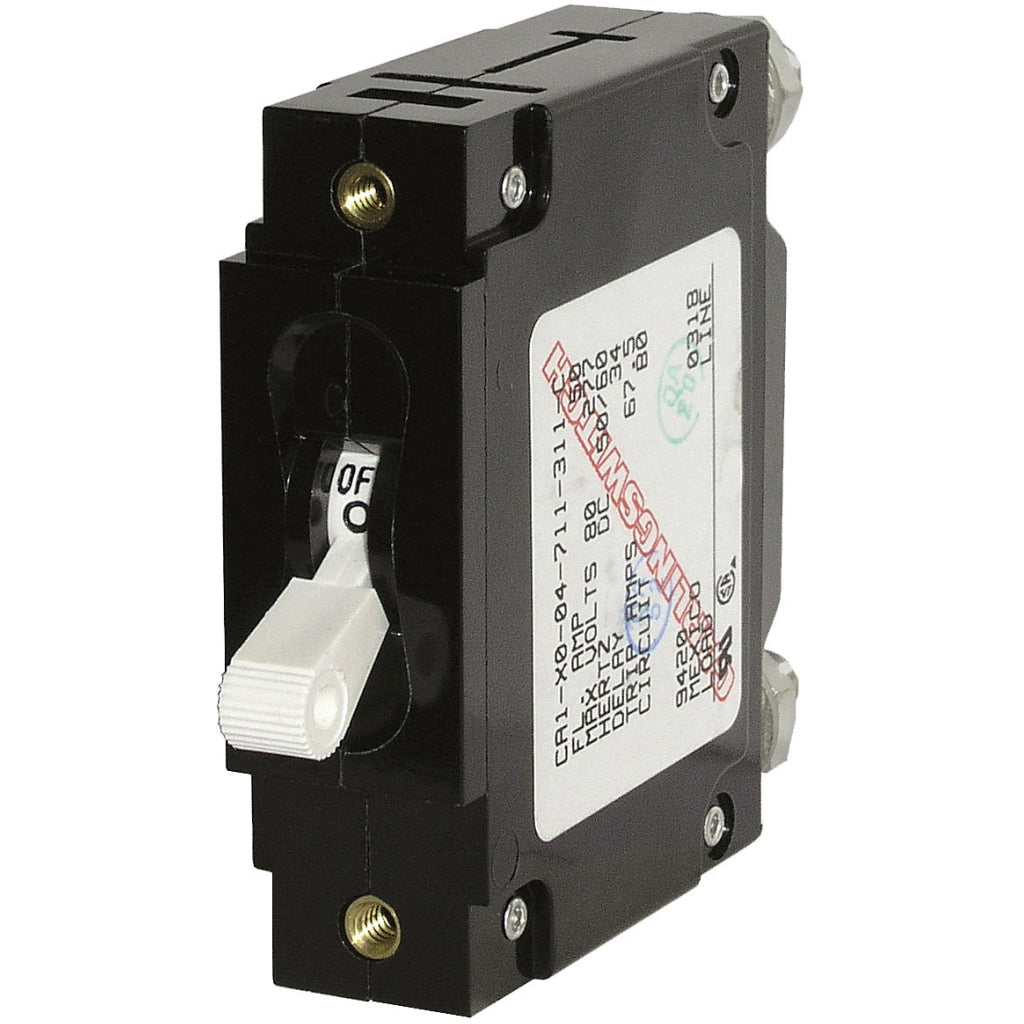

Blue Sea 30A C-Series Circuit Breaker

$51.99
Item Number: BS7355

Features:

  • Provides overcurrent protection for inverters, bow thrusters, and windlasses
  • Combines switching and circuit protection into a single device
  • "Trip Free"—cannot be held closed after trip

Specifications:

  • Amperage:30AC
  • 30A DC
  • Color:White
  • Actuator Style: Toggle
  • Poles:1
  • Maximum Voltage:240V AC
  • 80V DC
  • Circuit Breaker Type: Magnetic Hydraulic - trip free
  • Terminal Stud Torque:35 in-lb (3.95 Nm)
  • Interrupt Capacity: 5000A 125V AC
  • 5000A 240V AC
  • 10000A 80V DC
  • Minimum Operating Temperature: -40° C
  • Maximum Operating Temperature: 85° C
  • Mounting Screw:6-32 Stainless Steel
  • Mounting Screw Torque:6 in-lb (0.68 Nm)
  • Switching Cycles:10000
  • Terminal Stud:1/4-20 Tin-Plated Brass
  • Weight:0.25lb (0.11 kg)
