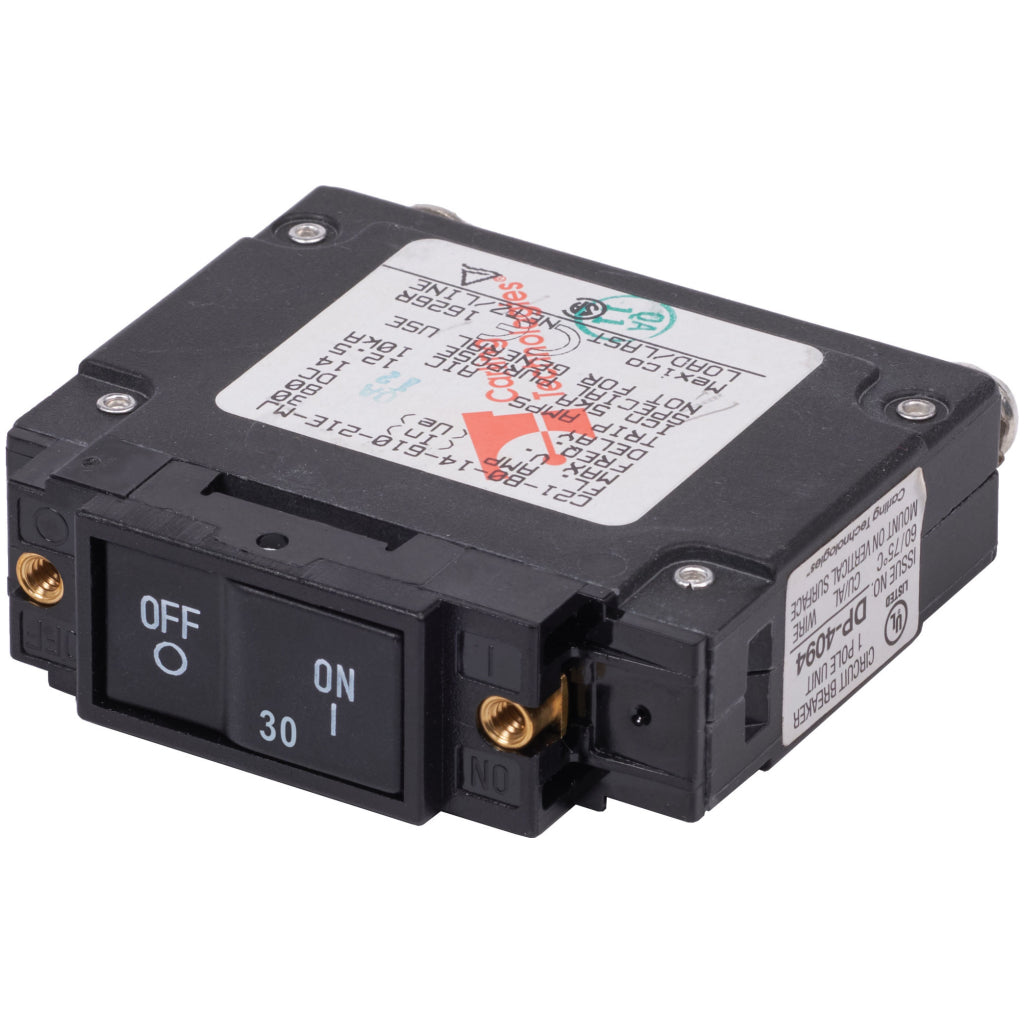

Item# 7444
Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46)
Specifications:
- Amperage:30A DC
- Actuator Style:Flat Rocker
- Poles:1
- Maximum Voltage:80V DC
- Circuit Breaker Type:Magnetic Hydraulic—Trip free
- Terminal Type:10-32 Screw Tin-Plated Brass
- Interrupt Capacity: 10000A
- Minimum Operating Temperature:-40° C
- Maximum Operating Temperature: 85° C
- Maximum Terminal Torque:15-20 in-lb (1.69 Nm)
- Mounting Screw:6-32 SS
- Mounting Screw Torque:7-9 in-lb (0.79 Nm)
