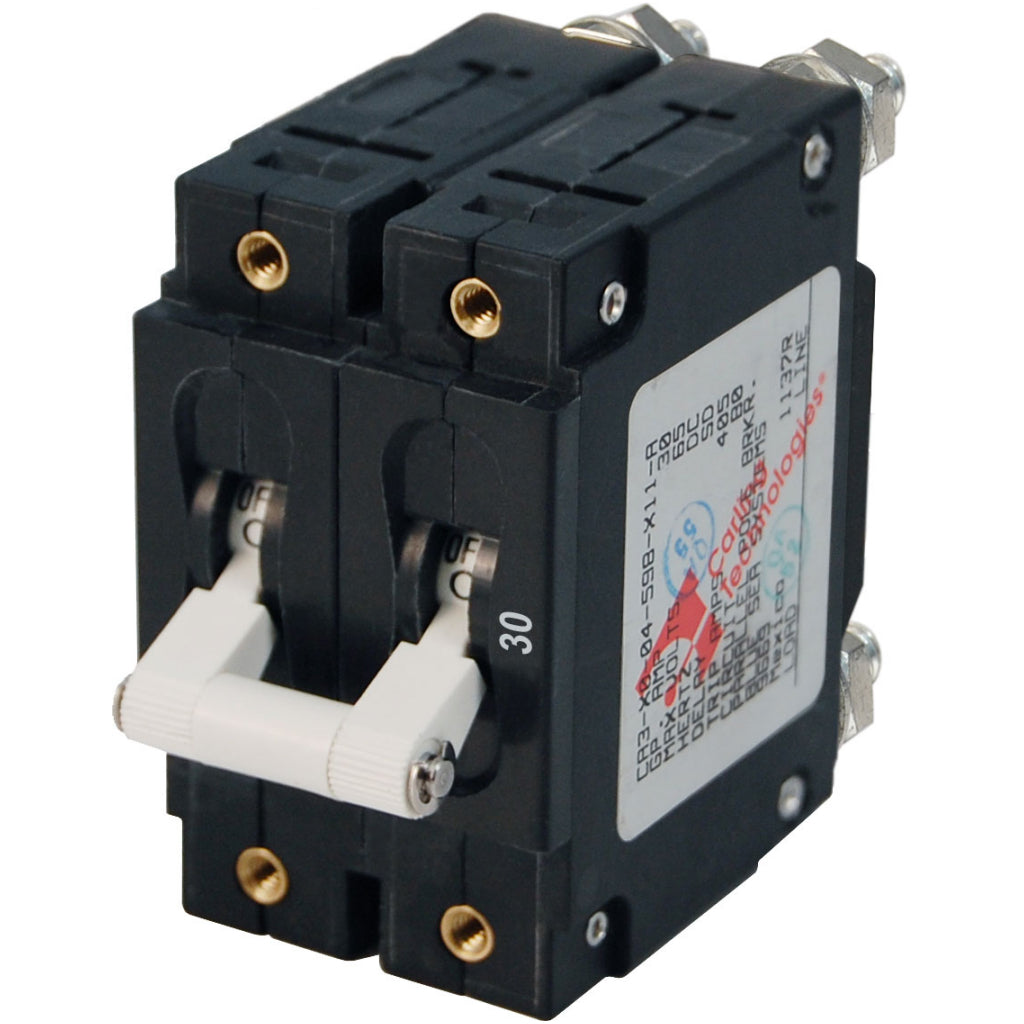

Item# 7365

Features:

• 5,000 Ampere interrupt capacity to meet ABYC requirements for 120/240 Volt 50 Ampere main protection
• Double pole used as 120 volt AC main circuit breaker to switch hot and neutral
• Double and triple pole circuit breakers will trip all poles will trip if any one pole trips
• “Trip Free” design cannot be held “ON” during fault current condition

• Provides overcurrent protection for inverters, bow thrusters, and windlasses
• Combines switching and circuit protection into a single device
• "Trip Free"—cannot be held closed after trip

Specifications:

• Amperage:30A AC
• Color:White
• Actuator Style: Toggle
• Poles:2
• Maximum Voltage:120V AC
• 240V AC
• Circuit Breaker Type: Magnetic Hydraulic - trip free
• Terminal Stud Torque:35 in-lb (3.95 Nm)
• Interrupt Capacity: 5000A 240V AC
• Minimum Operating Temperature:-40° C
• Maximum Operating Temperature: 85° C
• Mounting Screw:6-32 Stainless Steel
• Mounting Screw Torque:6 in-lb (0.68 Nm)
• Switching Cycles:10000
• Terminal Stud:1/4-20 Tin-Plated Brass
• Weight:0.60lb (0.27 kg)
