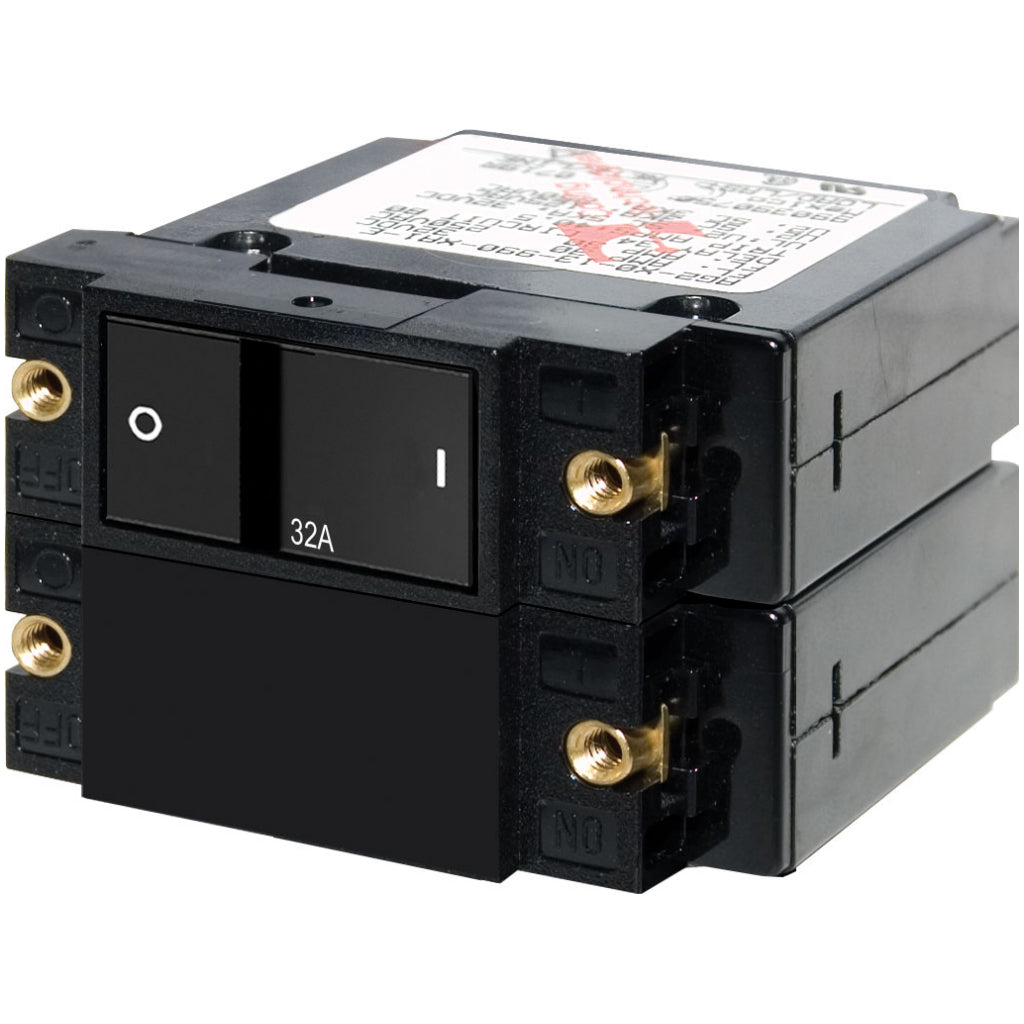

Item# 7415

Features:

• Color actuator indicates “OFF” position
• “Trip Free” design cannot be held “ON” during fault current condition
• International ON/OFF symbols support vertical or horizontal mounting

Specifications:

• Amperage:32A AC
• 32A DC
• Actuator Style: Raised Rocker
• Poles:2
• Maximum Voltage:120V AC
• 240V AC
• 32V DC
• Circuit Breaker Type: Magnetic Hydraulic - trip free
• Interrupt Capacity: 3000A 240V AC
• 1500A 240V ACTUV
• 5000A 32V DC
• Minimum Operating Temperature:-40° C
• Maximum Operating Temperature: 85° C
• Mounting Screw:6-32 Stainless Steel
• Mounting Screw Torque:6 in-lb (0.68 Nm)
• Screw Terminal Torque:14 in-lb (1.58 Nm)
• Switching Cycles:10000
• Terminal Screws:10-32 Stainless Steel
• Weight:0.38lb (0.17 kg)
