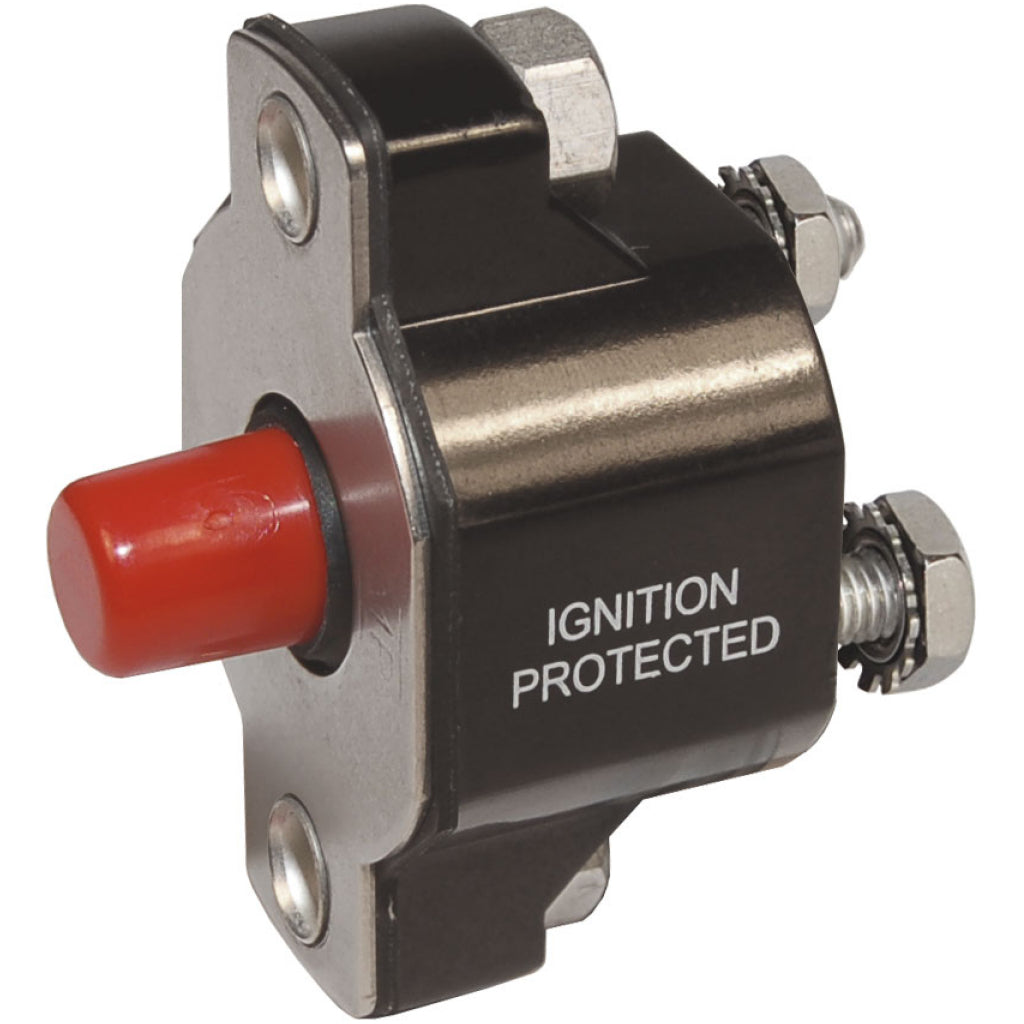

Item# 2141

Features:

• Weatherproof
• Can be used as Main, Branch, or 24 hour circuit protection
• Compact design enables high density circuit protection configurations
• Push-to-reset operation
• “Trip Free” design cannot be held “ON” during fault current condition
• Ignition protected - Safe for installation aboard gasoline powered boats
• Captive star lock washers meet requirements for anti-rotation and eliminate handling of small, easily dropped parts

Specifications:

• Amperage:40A
• Maximum Voltage:120V AC
• 32V DC
• Circuit Breaker Type: Thermal trip, manual push-button reset only
• Terminal Stud Torque:30 in-lb (3.39 Nm)
• Interrupt Capacity: 3000A 120V AC
• 5000A 32V DC
• Minimum Operating Temperature:-54° C
• Maximum Operating Temperature: 74° C
• Mounting Screw Thread:8-32
• Terminal Stud:10-32 Stainless Steel
• Weight:0.16lb (0.07 kg)
