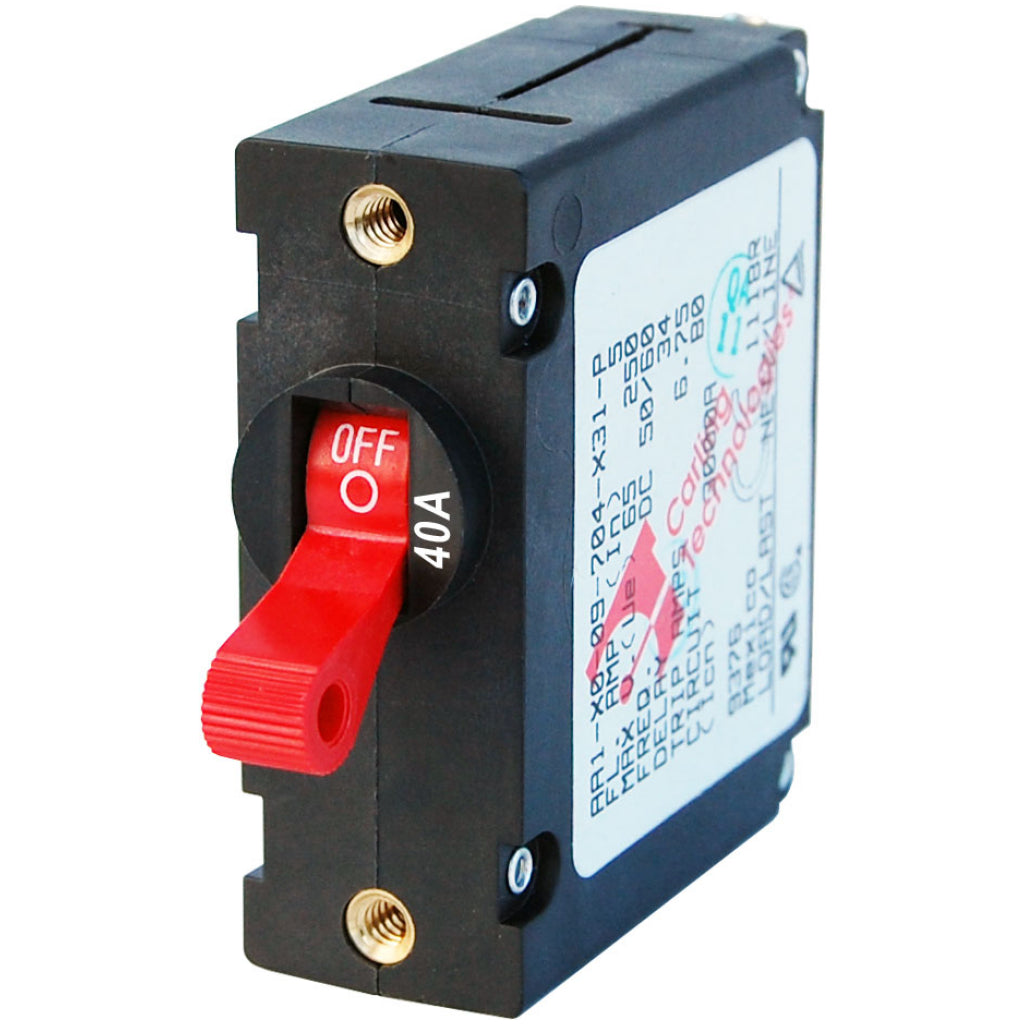

Blue Sea Single Pole Circuit Breaker - 40A Red

SKU# BS7225
Check Delivery Time

Blue Sea Single Pole Circuit Breaker - 40A Red may require an additional to 2 days to ship.


Rigging Shoppe ships to Canada only. ALL prices listed on this website in Canadian dollars.

Shipping within 24 hours if possible. Delivery usually 2 - 5 business days in Canada.

Shipping charges will be visible before entering credit card information when ordering.

Learn about our complete shipping policy here.

Item# 7225


  • Meets American Boat and Yacht Council (ABYC) standards
  • The industry standard circuit breaker for Blue Sea Systems" electrical panels
  • Combines switching and circuit protection into a single device
  • "Trip Free" design cannot be held "ON" during fault current condition


  • Amperage:40A AC
  • 40A DC
  • Color:Red
  • Actuator Style: Toggle
  • Poles:1
  • Maximum Voltage:240V AC
  • 32V DC
  • Circuit Breaker Type: Magnetic Hydraulic - trip free
  • Interrupt Capacity: 3000A 120V AC
  • 1500A 240V AC TUV
  • 3000A 240V AC UL 1077
  • 7500A 65V DC
  • Minimum Operating Temperature: -40° C
  • Maximum Operating Temperature: 85° C
  • Mounting Screw:6-32 Stainless Steel
  • Mounting Screw Torque:6 in-lb (0.68 Nm)
  • Screw Terminal Torque:14 in-lb (1.58 Nm)
  • Switching Cycles:10000
  • Terminal Screws:10-32 Stainless Steel
  • Weight:0.17lb (0.08 kg)
