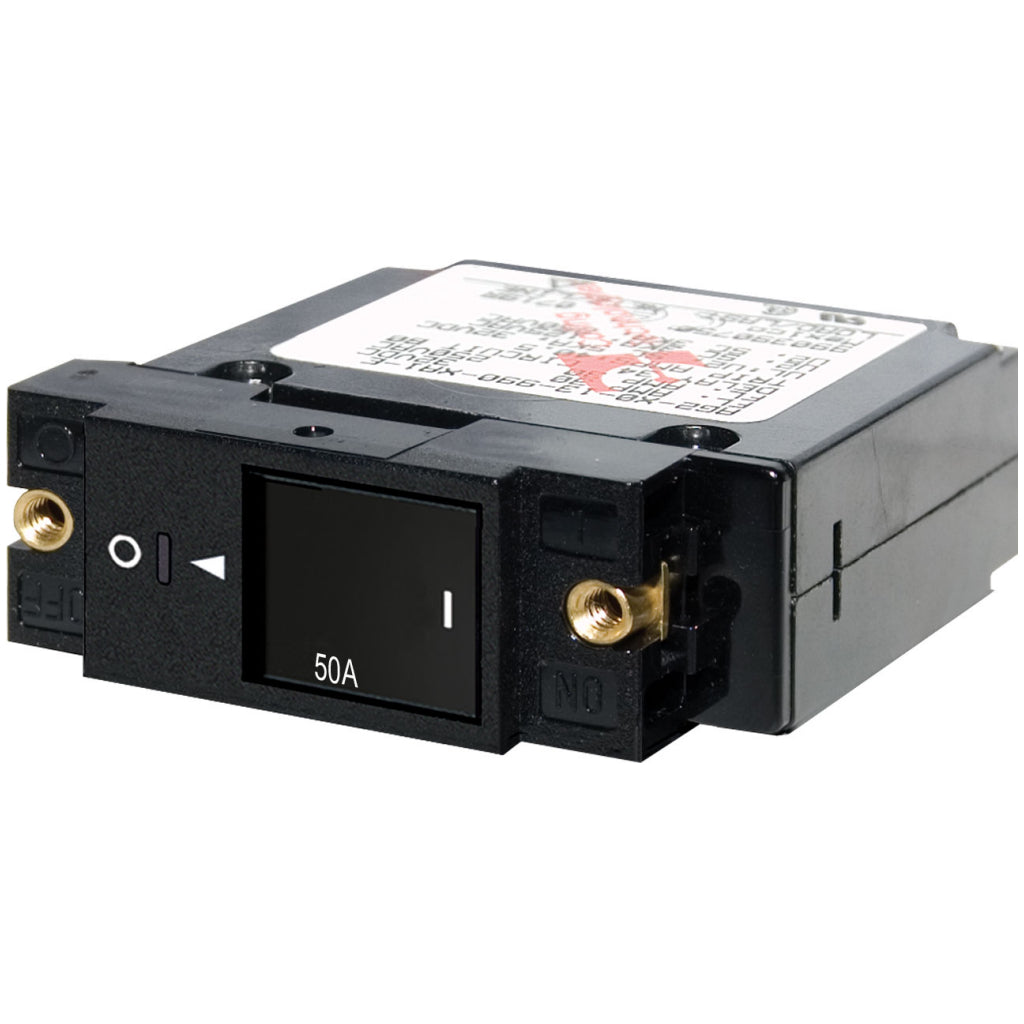

Blue Sea 50A A-Series Circuit Breaker

Item Number: BS7433

Blue Sea 50A A-Series Circuit Breaker usually available 2-5 business days upon ordering.


  • Rocker actuator is flush in the “ON” position, eliminating the risk of accidential switching
  • Color actuator indicates “OFF” position
  • “Trip Free” design cannot be held “ON” during fault current condition
  • 2 different actuator styles available
  • Prevents accidental switching of 24 hour circuits
  • International ON/OFF symbols support vertical or horizontal mounting


Amperage: 50A AC 50A DC Actuator Style: Restricted Off Poles: 1 Maximum Voltage: 240V AC 32V DC Circuit Breaker Type: Magnetic Hydraulic - trip free Interrupt Capacity: 3000A 125V AC 1500A 240V AC 5000A 32V DC Minimum Operating Temperature: -40° C Maximum Operating Temperature: 85° C Mounting Screw: 6-32 Stainless Steel Mounting Screw Torque: 6 in-lb (0.68 Nm) Screw Terminal Torque: 14 in-lb (1.58 Nm) Switching Cycles: 10000 Terminal Screws: 10-32 Stainless Steel Weight: 0.18lb (0.08 kg)
