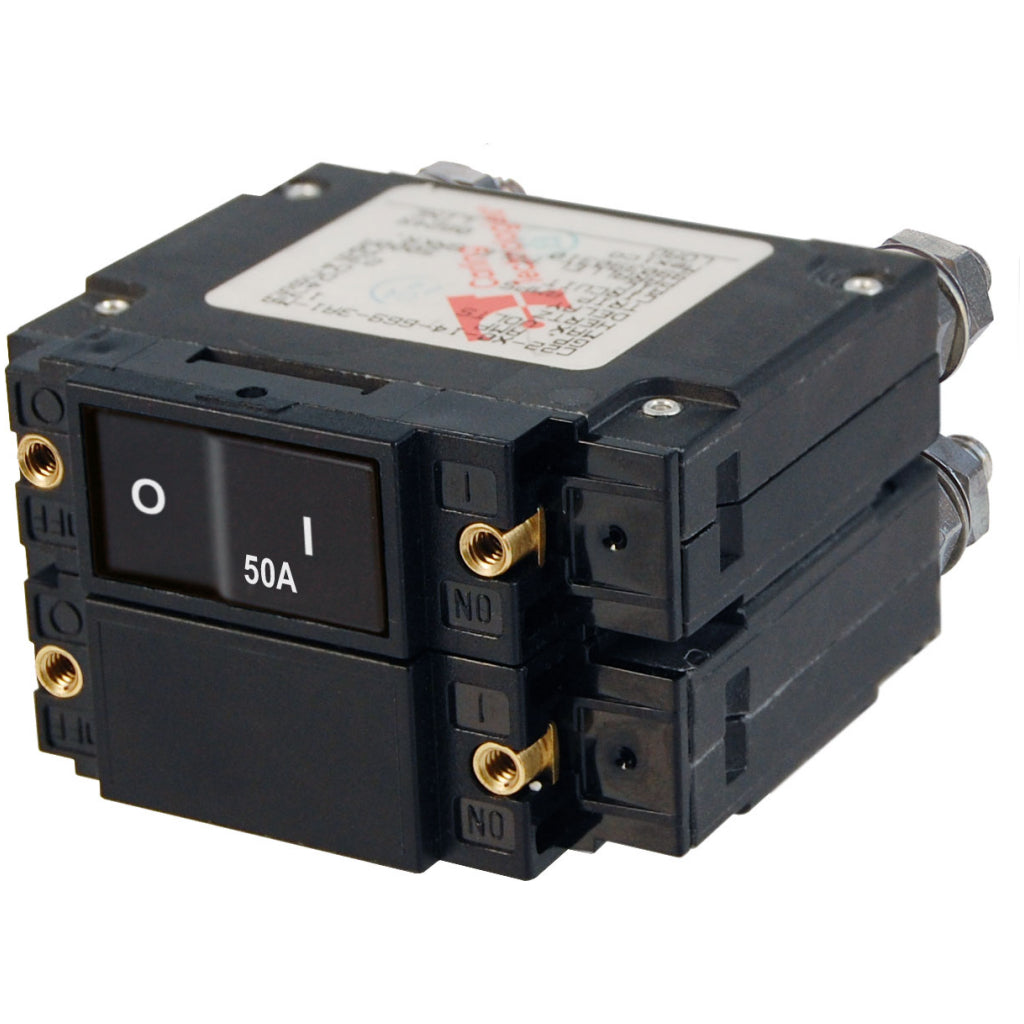

Item# 7561
Features:
- 5,000 Ampere interrupt capacity to meet ABYC requirements for 120/240 Volt 50 Ampere main protection
- Double pole can be used as 120 Volt AC main circuit breaker to switch hot and neutral
- Triple pole can be used as 240 Volt AC main circuit breaker to switch both lines (hots) and neutral
- Circuit breakers will trip all poles if any one pole trips
- “Trip Free” design cannot be held “ON” during fault current condition
Specifications:
- Amperage:50A AC
- Actuator Style: Flat Rocker
- Poles:2
- Maximum Voltage:120V AC
- 240V AC
- Circuit Breaker Type: Magnetic Hydraulic - trip free
- Terminal Stud Torque:35 in-lb (3.95 Nm)
- Interrupt Capacity: 5000A 48V DC
- Minimum Operating Temperature:-40° C
- Maximum Operating Temperature: 85° C
- Mounting Screw:6-32 Stainless Steel
- Mounting Screw Torque:6 in-lb (0.68 Nm)
- Switching Cycles:10000
- Terminal Stud:1/4-20 Tin-Plated Brass
- Weight:0.64lb (0.29 kg)
