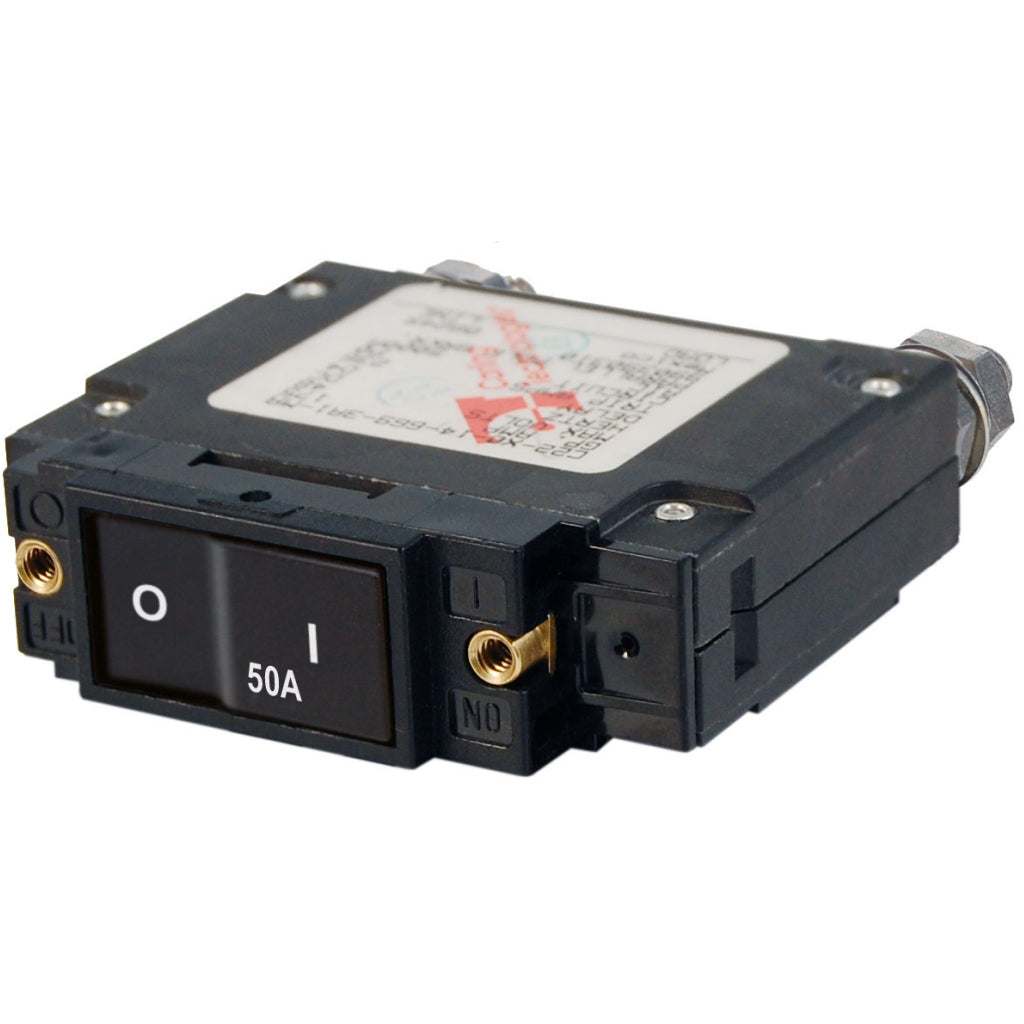

Item# 7546
Features:
- Rocker actuator is flush in the “ON” position, eliminating the risk of accidential switching
- Color actuator indicates “OFF” position
- Provides overcurrent protection for inverters, bow thrusters, and windlasses
- Combines switching and circuit protection into a single device
Specifications:
- Amperage:50A AC
- 50A DC
- Actuator Style: Flat Rocker
- Poles:1
- Maximum Voltage:240V AC
- 48V DC
- Circuit Breaker Type: Magnetic Hydraulic - trip free
- Terminal Stud Torque:35 in-lb (3.95 Nm)
- Interrupt Capacity: 3000A 120V AC
- 3500A 240V AC
- 5000A 32V DC
- Minimum Operating Temperature:-40° C
- Maximum Operating Temperature: 85° C
- Mounting Screw:6-32 Stainless Steel
- Mounting Screw Torque:6 in-lb (0.68 Nm)
- Switching Cycles:10000
- Terminal Stud:1/4-20 Tin-Plated Brass
- Weight:0.55lb (0.25kg)
