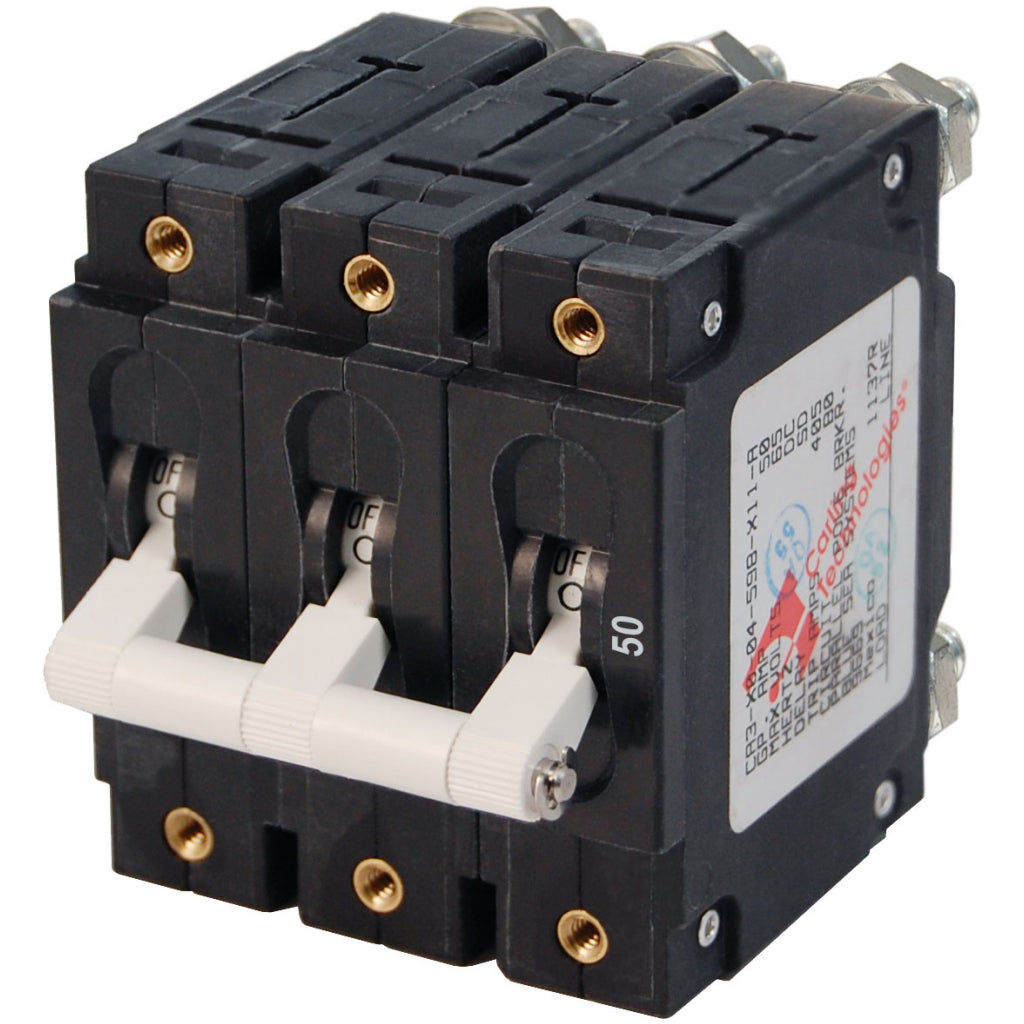

Blue Sea 50A C-Series Toggle Circuit Breaker

$161.99
Item Number: BS7287

Blue Sea 50A C-Series Toggle Circuit Breaker usually available 2-5 business days upon ordering.

Features:

  • 5,000 Ampere interrupt capacity to meet ABYC requirements for 120/240 Volt 50 Ampere main protection
  • Double pole used as 120 volt AC main circuit breaker to switch hot and neutral
  • Triple pole used as 240 volt AC main circuit breaker to switch lines (hot) and neutral
  • Double and triple pole circuit breakers will trip all poles if any one pole trips
  • “Trip Free” design cannot be held “ON” during fault current condition

Specifications:

  • Amperage:50A AC
  • Color:White
  • Actuator Style:Toggle
  • Poles:3
  • Maximum Voltage:120V AC
  • 240V AC
  • 80V DC
  • Circuit Breaker Type: Magnetic Hydraulic - trip free
  • Terminal Stud Torque:35 in-lb (3.95 Nm)
  • Interrupt Capacity:5000A 125V AC
  • 5000A 240V AC
  • Minimum Operating Temperature:-40° C
  • Maximum Operating Temperature:85° C
  • Mounting Screw:6-32 Stainless Steel
  • Mounting Screw Torque:6 in-lb (0.68 Nm)
  • Switching Cycles:10000
  • Terminal Stud:1/4-20 Tin-Plated Brass
  • Weight:0.90lb (0.41 kg)
