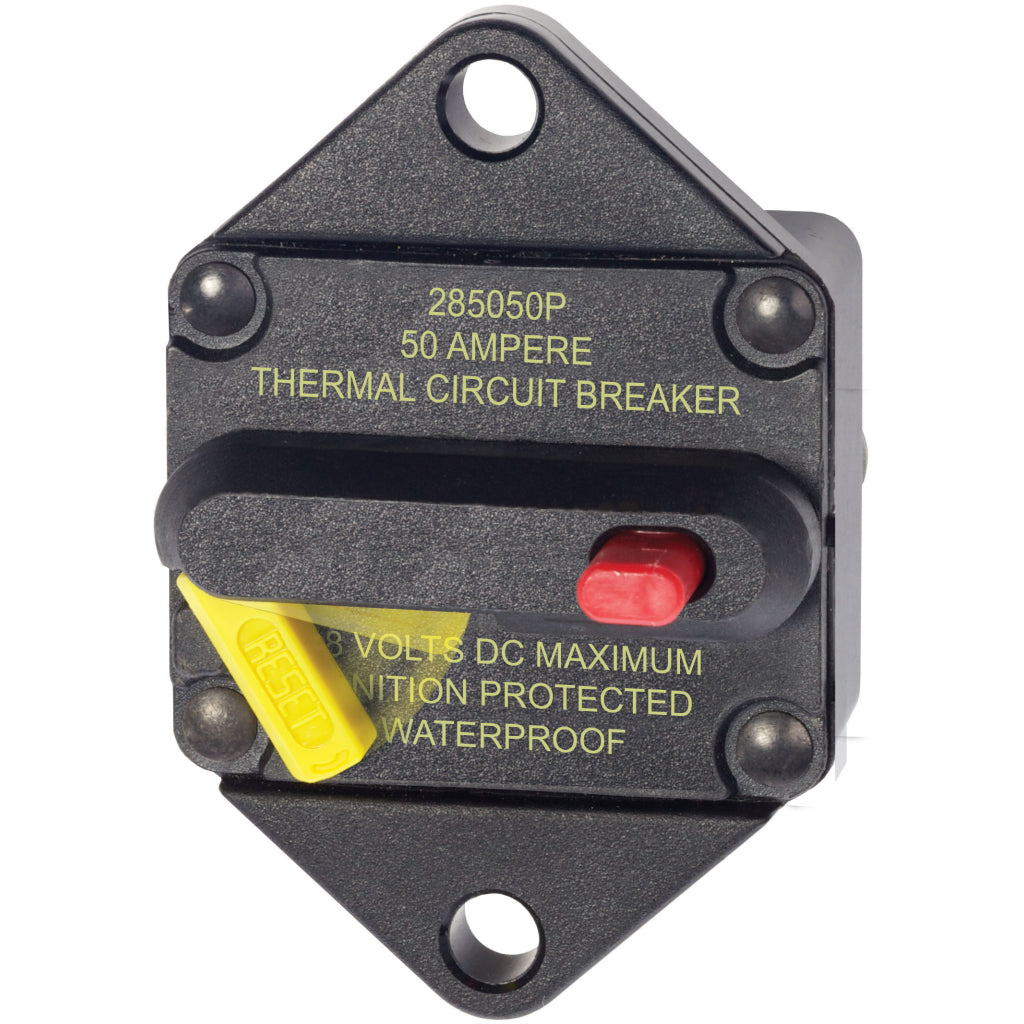

Blue Sea 50A Panel Mount Circuit Breaker

$63.99
Item Number: BS7083

Features:

  • Drop in replacement for 185-Series Circuit Breakers
  • Visible reset lever shows open condition
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Meets SAE J1171 external ignition protection requirements
  • Weather Resistant
  • Combines switching and circuit breaker function into one unit
  • "Trip Free" - cannot be held closed after trip

Specifications:

  • Amperage:50A
  • Maximum Voltage:48V DC
  • Mounting:Panel Mount
  • Circuit Breaker Type: Thermally responsive Bi-metal blade
  • Terminal Stud Torque:50 in-lb (5.65 Nm)
  • Interrupt Capacity: 3000A 48V
  • Minimum Operating Temperature:-40° C
  • Maximum Operating Temperature: 85° C
  • Circuit Breaker Class:Type III - switchable/manual reset - trip free
  • Terminal Stud:M6 (accepts 1/4" Ring Terminal)
  • Weight:0.50lb (0.23 kg)
