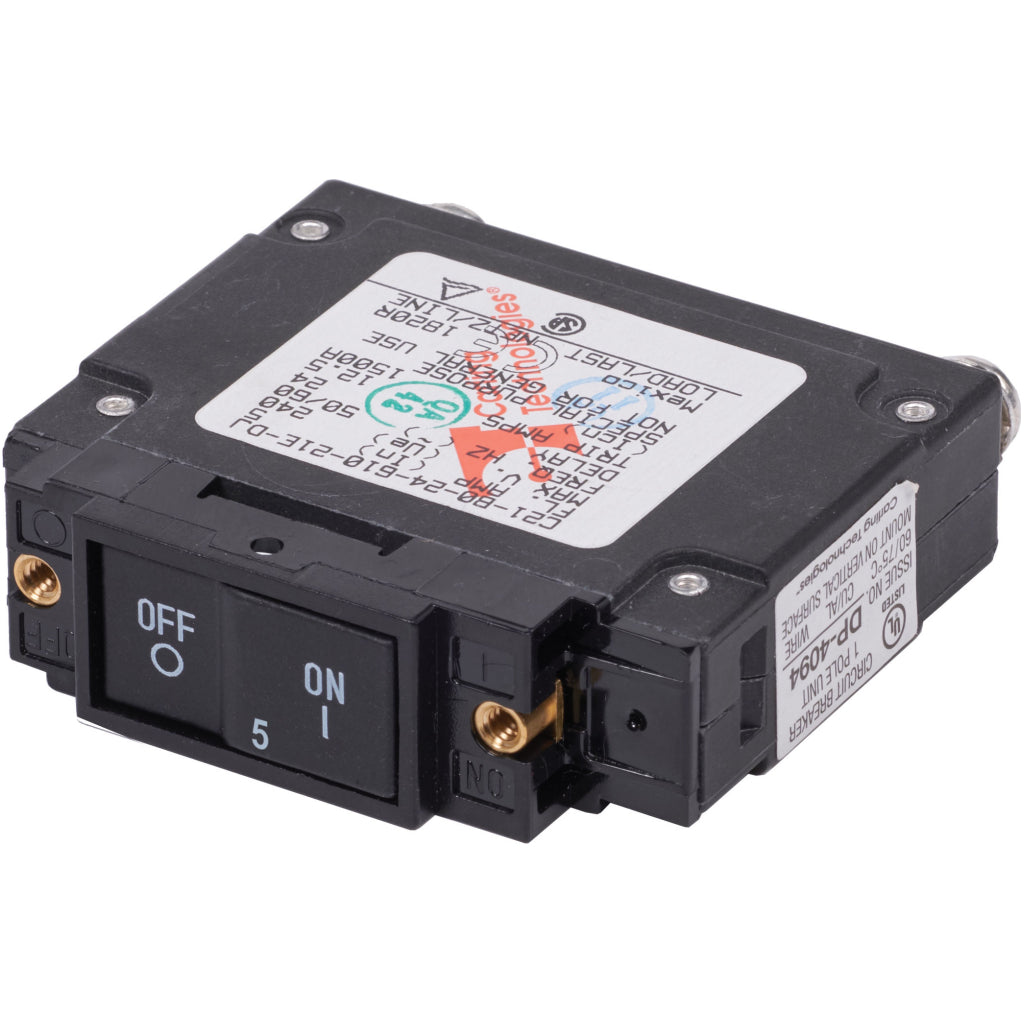

Blue Sea 5A UL-489 Circuit Breaker

Item# 7454

Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46)

Specifications:

• Amperage:5A AC
• Actuator Style:Flat Rocker
• Poles:1
• Maximum Voltage240V AC
• Circuit Breaker Type:Magnetic Hydraulic—Trip free
• Terminal Type:10-32 Screw Tin-Plated Brass
• Interrupt Capacity: 10000A
• Minimum Operating Temperature:-40° C
• Maximum Operating Temperature: 85° C
• Maximum Terminal Torque:15-20 in-lb (1.69 Nm)
• Mounting Screw:6-32 SS
• Mounting Screw Torque:7-9 in-lb (0.79 Nm)
