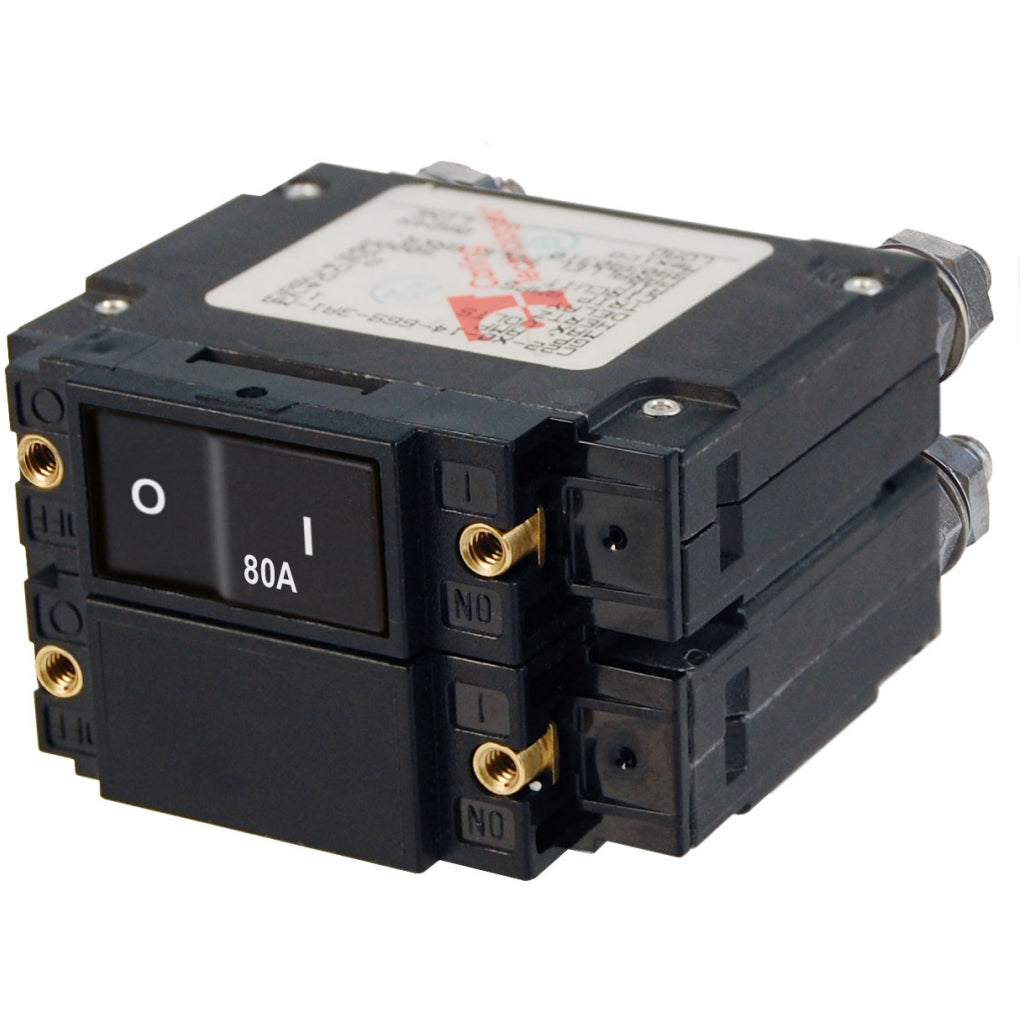

Blue Sea 80A AC Flat Rocker Circuit Breaker

SKU# BS7563
$9499
Check Delivery Time

Blue Sea 80A AC Flat Rocker Circuit Breaker may require an additional to 2 days to ship.

Shipping

Rigging Shoppe ships to Canada only. ALL prices listed on this website in Canadian dollars.

Shipping within 24 hours if possible. Delivery usually 2 - 5 business days in Canada.

Shipping charges will be visible before entering credit card information when ordering.

Learn about our complete shipping policy here.

Item# 7563

Features:

  • 5,000 Ampere interrupt capacity to meet ABYC requirements for 120/240 Volt 50 Ampere main protection
  • Double pole can be used as 120 Volt AC main circuit breaker to switch hot and neutral
  • Triple pole can be used as 240 Volt AC main circuit breaker to switch both lines (hots) and neutral
  • Circuit breakers will trip all poles if any one pole trips
  • “Trip Free” design cannot be held “ON” during fault current condition

Specifications:

  • Amperage:80A AC
  • Actuator Style: Flat Rocker
  • Poles:2
  • Maximum Voltage:120V AC
  • 240V AC
  • Circuit Breaker Type: Magnetic Hydraulic - trip free
  • Terminal Stud Torque:35 in-lb (3.95 Nm)
  • Interrupt Capacity: 5000A 48V DC
  • Minimum Operating Temperature:-40° C
  • Maximum Operating Temperature: 85° C
  • Mounting Screw:6-32 Stainless Steel
  • Mounting Screw Torque:6 in-lb (0.68 Nm)
  • Switching Cycles:10000
  • Terminal Stud:1/4-20 Tin-Plated Brass
  • Weight:0.64lb (0.29 kg)
