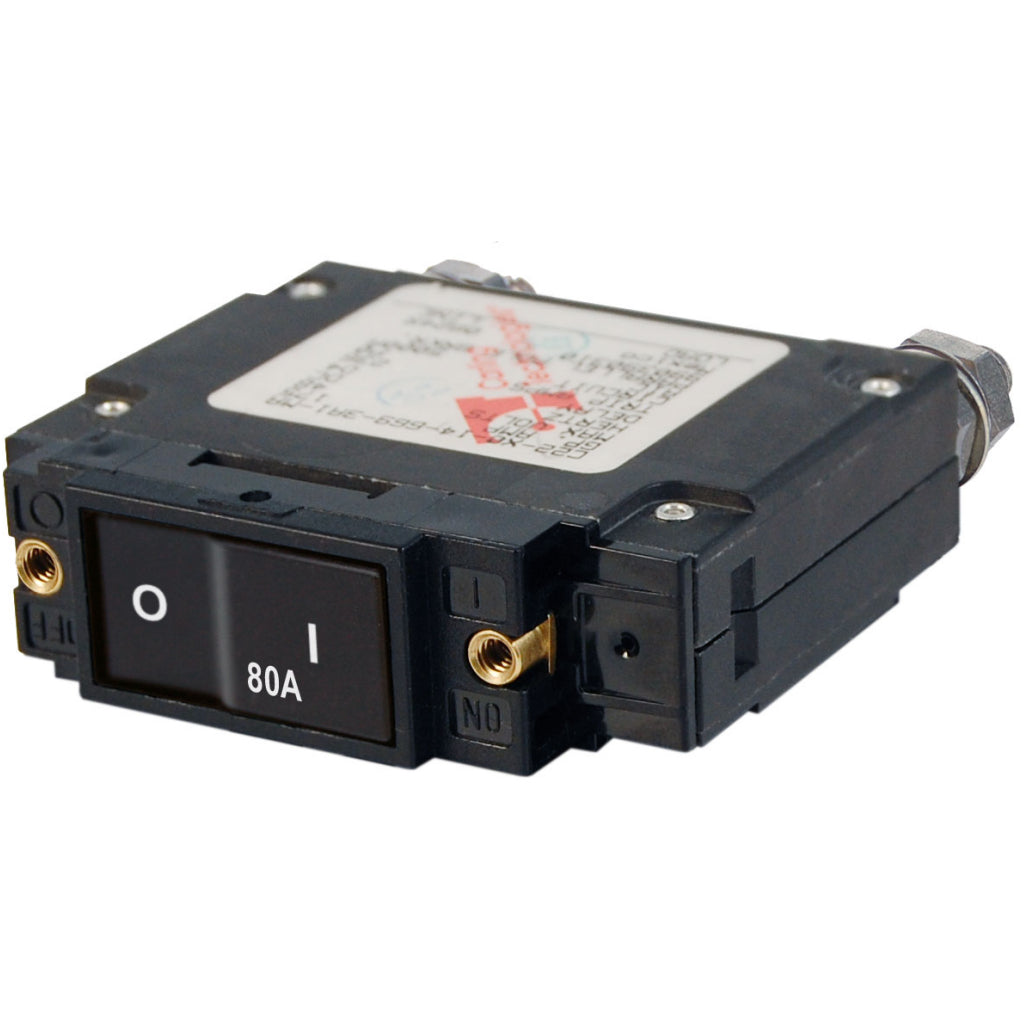

Blue Sea 80A C-Series Flat Rocker Circuit Breaker

SKU# BS7548
$5199
Check Delivery Time

Blue Sea 80A C-Series Flat Rocker Circuit Breaker may require an additional to 2 days to ship.

Shipping

Rigging Shoppe ships to Canada only. ALL prices listed on this website in Canadian dollars.

Shipping within 24 hours if possible. Delivery usually 2 - 5 business days in Canada.

Shipping charges will be visible before entering credit card information when ordering.

Learn about our complete shipping policy here.

Item# 7548

Features:

  • Rocker actuator is flush in the “ON” position, eliminating the risk of accidential switching
  • Color actuator indicates “OFF” position
  • Provides overcurrent protection for inverters, bow thrusters, and windlasses
  • Combines switching and circuit protection into a single device
  • “Trip Free”—cannot be held closed after trip
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Specifications:

    • Amperage:80A AC
    • 80A DC
    • Actuator Style:Flat Rocker
    • Poles:1
    • Maximum Voltage:240V AC
    • 48V DC
    • Circuit Breaker Type: Magnetic Hydraulic - trip free
    • Terminal Stud Torque:35 in-lb (3.95 Nm)
    • Interrupt Capacity: 3000A 120V AC
    • 3500A 240V AC
    • 5000A 32V DC
    • Minimum Operating Temperature:-40° C
    • Maximum Operating Temperature: 85° C
    • Mounting Screw:6-32 Stainless Steel
    • Mounting Screw Torque:6 in-lb (0.68 Nm)
    • Switching Cycles:10000
    • Terminal Stud:1/4-20 Tin-Plated Brass
    • Weight:0.36lb (0.16kg)
