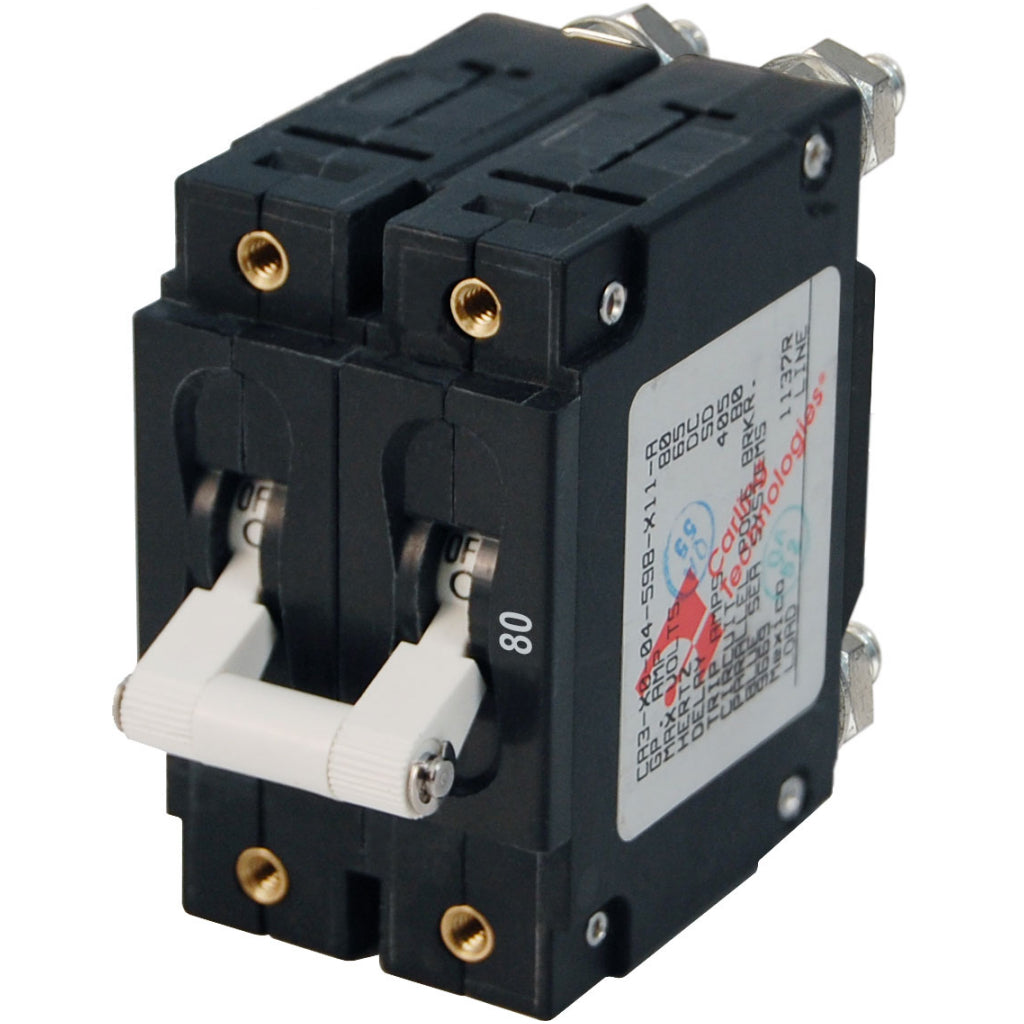

Blue Sea 80A White C-Series Circuit Breaker

SKU# BS7256
$14499
Check Delivery Time

Blue Sea 80A White C-Series Circuit Breaker may require an additional to 2 days to ship.

Shipping

Rigging Shoppe ships to Canada only. ALL prices listed on this website in Canadian dollars.

Shipping within 24 hours if possible. Delivery usually 2 - 5 business days in Canada.

Shipping charges will be visible before entering credit card information when ordering.

Learn about our complete shipping policy here.

Item# 7256

Features:

  • Provides overcurrent protection for inverters, bow thrusters, and windlasses
  • Combines switching and circuit protection into a single device
  • "Trip Free"—cannot be held closed after trip

Specifications:

  • Amperage:80A AC
  • Color:White
  • Actuator Style: Toggle
  • Poles:2
  • Maximum Voltage:120V AC
  • 240V AC
  • 80V DC
  • Circuit Breaker Type: Magnetic Hydraulic - trip free
  • Terminal Stud Torque:35 in-lb (3.95 Nm)
  • Interrupt Capacity: 5000A 240V AC
  • Minimum Operating Temperature:-40° C
  • Maximum Operating Temperature: 85° C
  • Mounting Screw:6-32 Stainless Steel
  • Mounting Screw Torque:6 in-lb (0.68 Nm)
  • Switching Cycles:10000
  • Terminal Stud:1/4-20 Tin-Plated Brass
  • Weight:0.70lb (0.32 kg)
