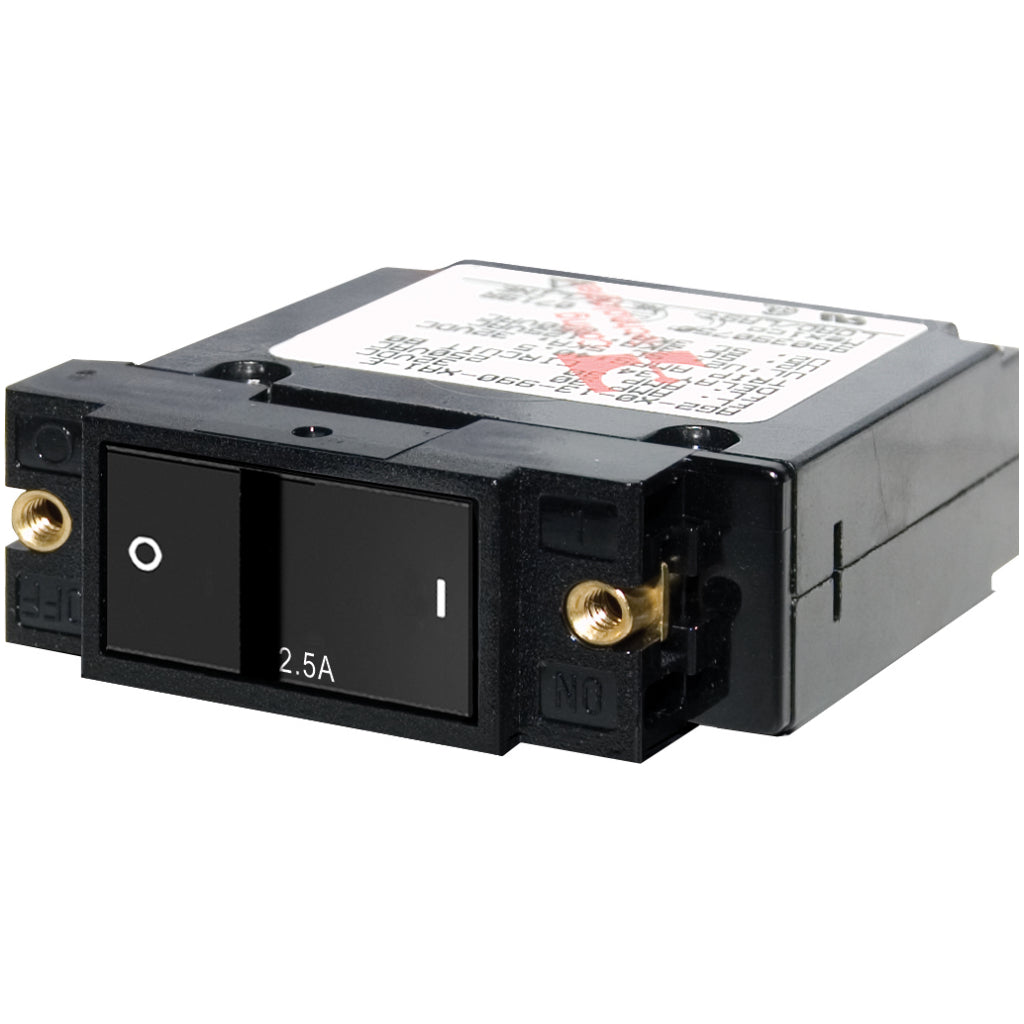

Blue Sea A-Series Flat Rocker Circuit Breaker

Item# 7399

Features:

• Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching
• Color actuator indicates "OFF" position
• Trip Free" design cannot be held "ON" during fault current condition
• 2 different actuator styles available
• Prevents accidental switching of 24 hour circuits
• International ON/OFF symbols support vertical or horizontal mounting

Specifications:

• Amperage:2.5A AC
• 2.5A DC
• Actuator Style: Flat Rocker
• Poles:1
• Maximum Voltage:240V AC
• 32V DC
• Circuit Breaker Type: Magnetic Hydraulic - trip free
• Interrupt Capacity: 3000A 125V AC
• 1500A 240V AC
• 5000A 32V DC
• Minimum Operating Temperature: -40° C
• Maximum Operating Temperature: 85° C
• Mounting Screw: 6-32 Stainless Steel
• Mounting Screw Torque:6 in-lb (0.68 Nm)
• Screw Terminal Torque:14 in-lb (1.58 Nm)
• Switching Cycles:10000
• Terminal Screws:10-32 Stainless Steel
• Weight:0.21lb (0.1 kg)
