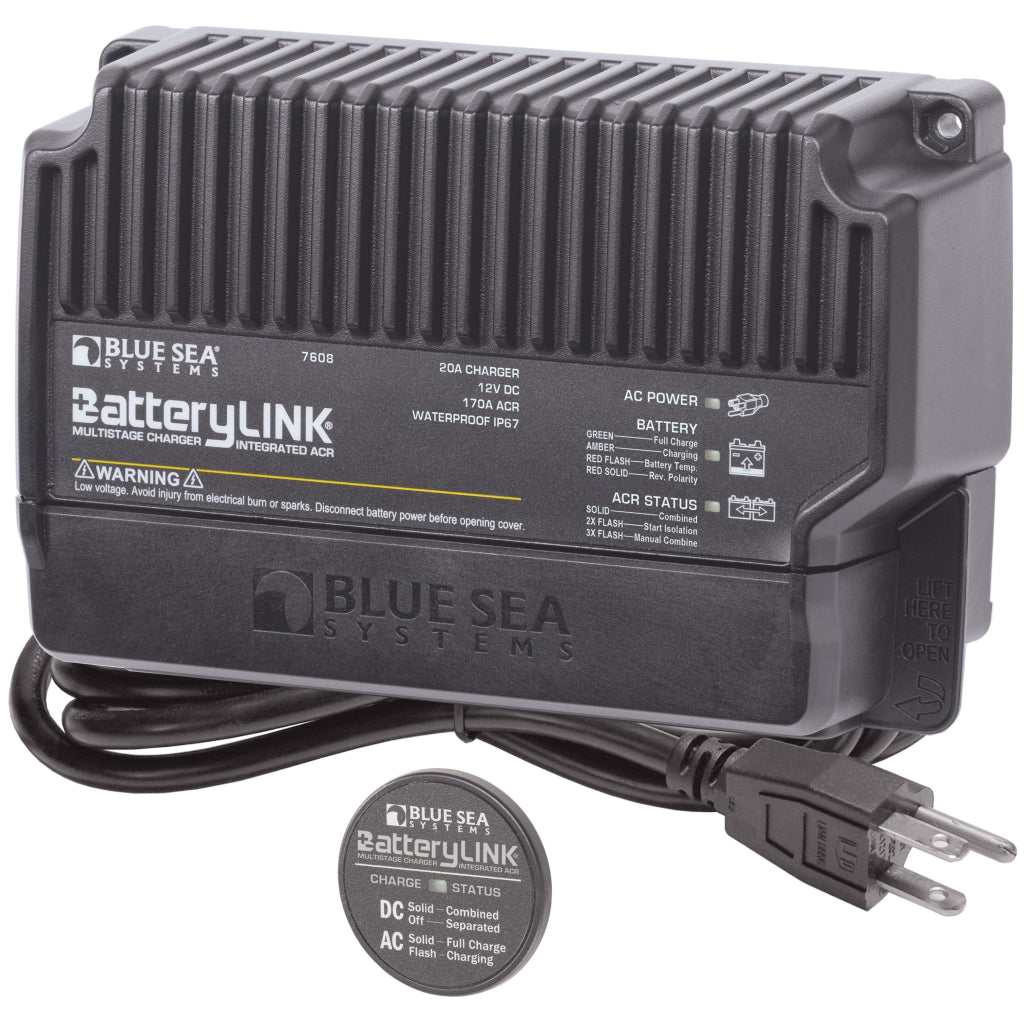

Blue Sea BatteryLink Charger

Item# 7608

Charge at or away from the Dock

• Compact 12V 20A – 2 Bank AC Charger
• 170A Continuous ACR
• Remote Emergency Jump Start
• Battery Temperature Compensation
• Remote Display Included
• IP 67 Waterproof

Specifications

• Total Output Current:20A
• Nominal Voltage:12V DC
• Number of Outputs:1 Negative
• 2 Positive
• Terminal Stud Torque:60 in-lb (6.78 Nm)
• Continuous Rating: 170A
• Universal AC Input Voltage:90-265V AC
• AC Input Frequency:50/60Hz
• Typical Float Voltage:13.5V DC
• Battery Types:AGM
• Flooded
• TPPL
• Cable Size to Meet Ratings:10 AWG Negative Cable
• 6 AWG Positive cable
• Maximum Battery CCA:850CCA
• Maximum Cable Size:1/0 AWG (50mm)
• Operating Current:10mA
• 60mA
• Plug Style:North American: NEMA 5-15P
• Recommended Battery Bank Sizes:60Ah Minimum
• Terminal Stud Size:1/4"-20
• Warranty:5 Year
• Combine 30 sec:13.5V
• Combine 2 Min:13.0V
• Open 10 sec:12.35V
• Open 30 sec:12.75V
• Weight:6.75lb (3.06 kg)
