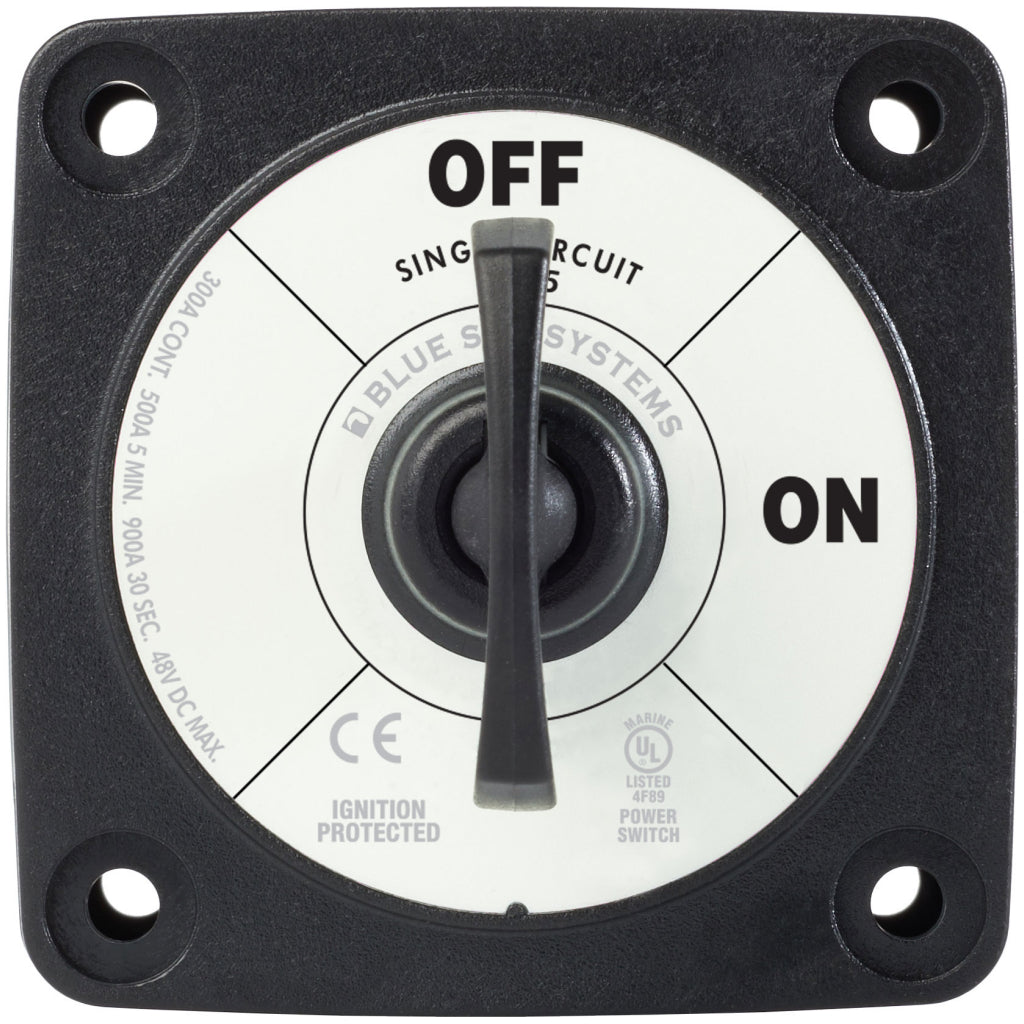

Blue Sea Black m-Series Mini Battery Switch

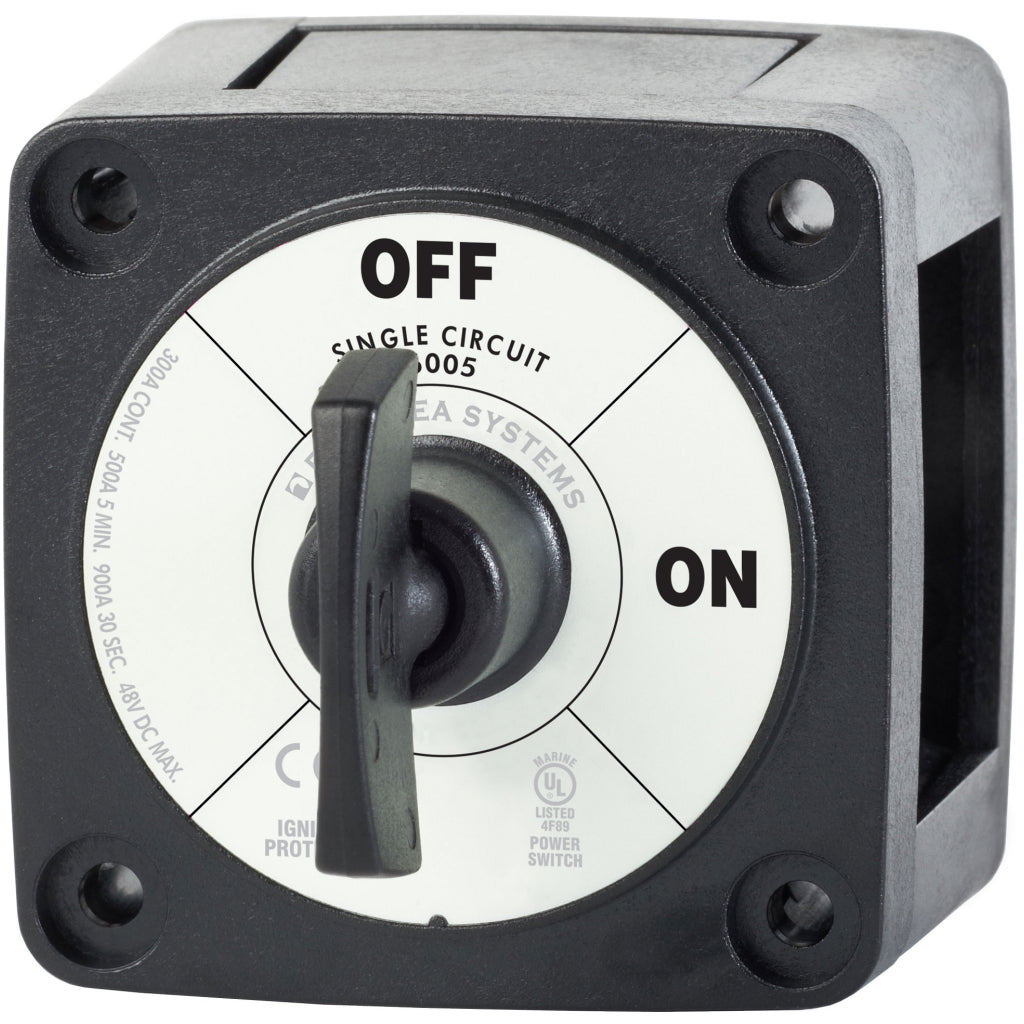

Blue Sea Black m-Series Mini Battery Switch Angle

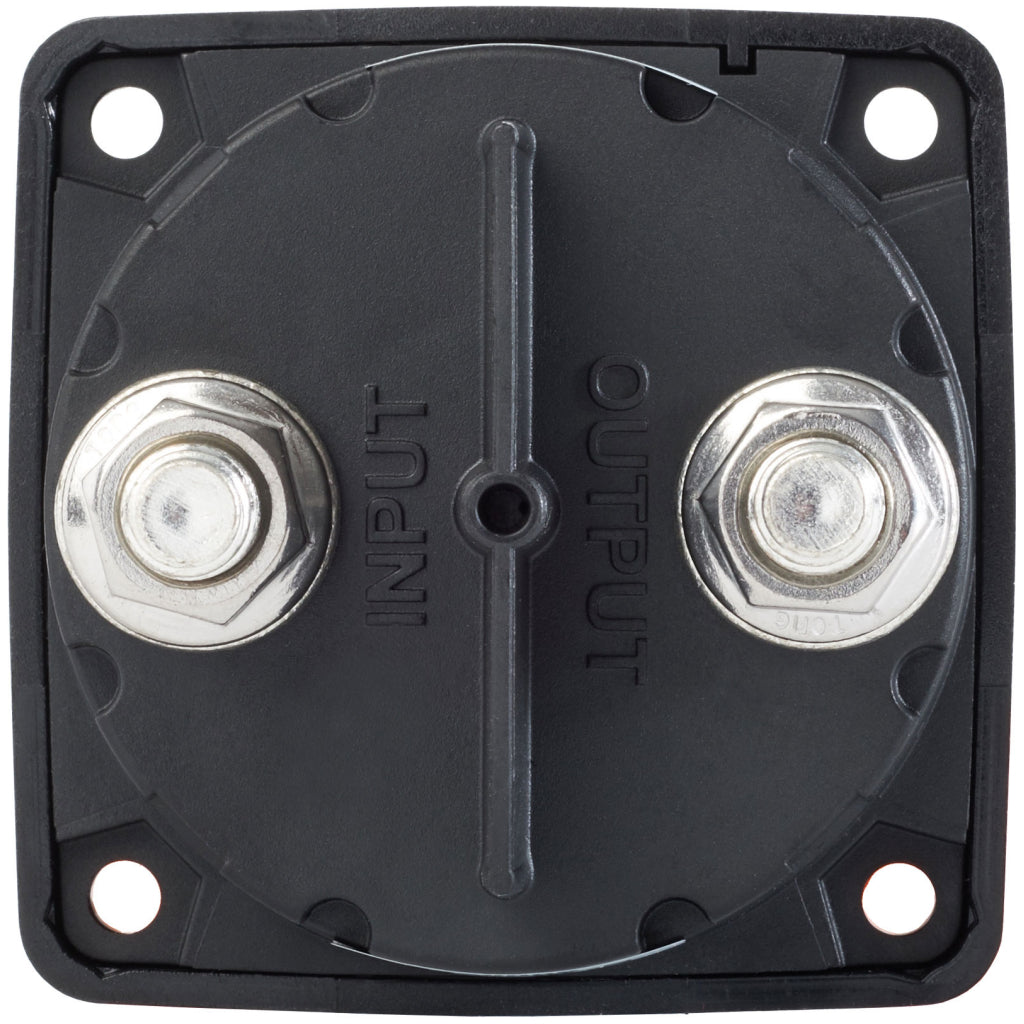

Blue Sea Black m-Series Mini Battery Switch Reverse
Blue Sea Black m-Series Mini Battery Switch
Blue Sea Black m-Series Mini Battery Switch Angle
Blue Sea Black m-Series Mini Battery Switch Reverse
ELECTRICAL

Blue Sea Mini ON-OFF Battery Switch w/Key-Black

SKU# BS6005200
$4599
Check Delivery Time

Blue Sea Mini ON-OFF Battery Switch w/Key-Black may require an additional to 2 days to ship.

Shipping

Rigging Shoppe ships to Canada only. ALL prices listed on this website in Canadian dollars.

Shipping within 24 hours if possible. Delivery usually 2 - 5 business days in Canada.

Shipping charges will be visible before entering credit card information when ordering.

Learn about our complete shipping policy here.

✕
//riggingshoppe.com/cdn/shop/files/happy-child-on-sailboat_e18ec5af-8b2e-4722-ae68-af51a4129615_500x500.jpg?v=1667832716

Check Delivery Time


Item# 6005200

Switches a single battery to a single load group.

Features:

  • Ignition protected—safe for installation aboard gasoline powered boats
  • Case design allows surface, front panel, or rear panel mounting
  • Isolating cover with snap-on sections protects rear contacts

Specifications:

Switch Type: Single Circuit ON-OFF Color: Black Switch Positions: 2 Battery Combine: No Alternator Field Disconnect: No Maximum Voltage: 48V DC Stud Size: 3/8" Terminal Stud Torque: 120 in-lb (13.56 Nm) Continuous Rating: 300A Intermittent Rating: 500A (5 min) Cranking Rating: 30 sec 900A Battery Inputs: 1 Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm) Cable Size to Meet Ratings: 4/0 AWG (120mm²) Mounting Holes: Accept 10 Screw Stud Material: Tinned Copper Stud Torque: 120 in-lb (13.56 Nm) Terminal Stud Size: 3/8" - 16 (M10) Weight: 0.62lb (0.28 kg)
