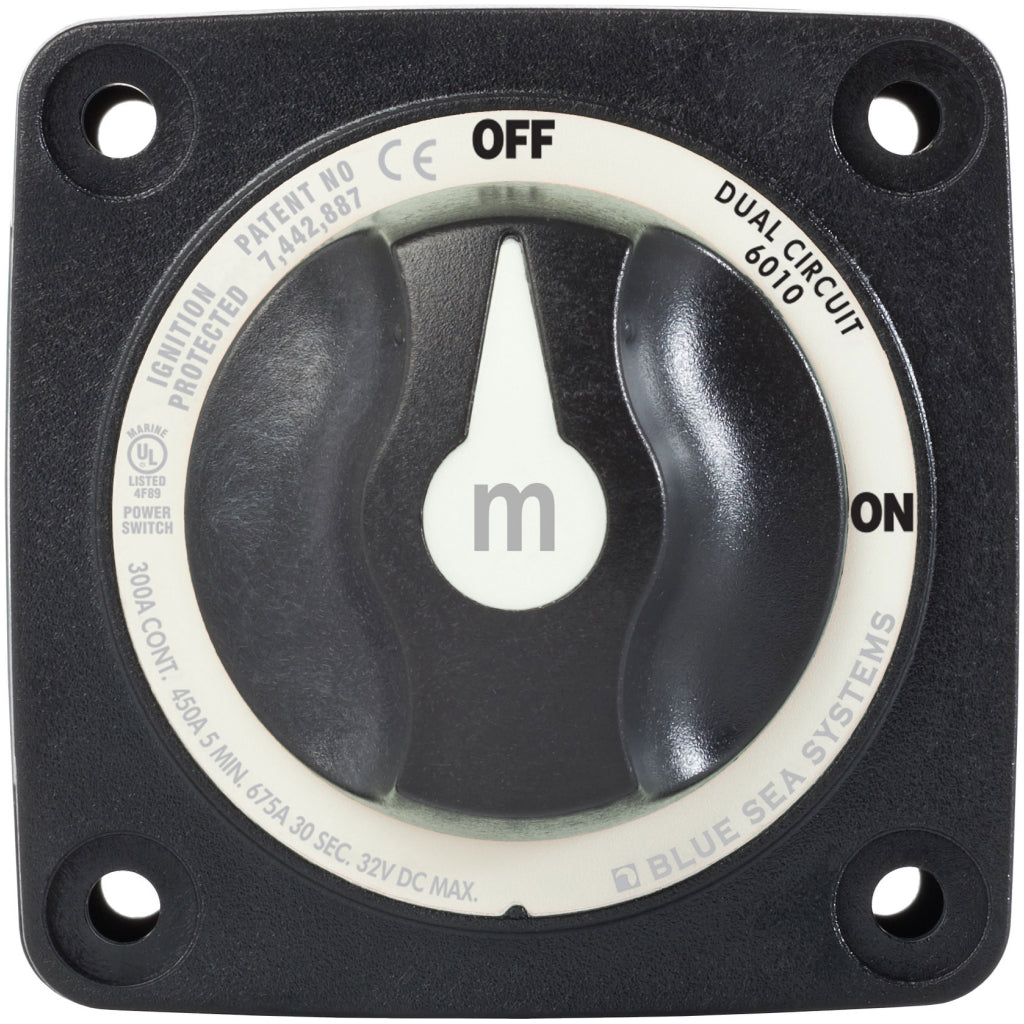

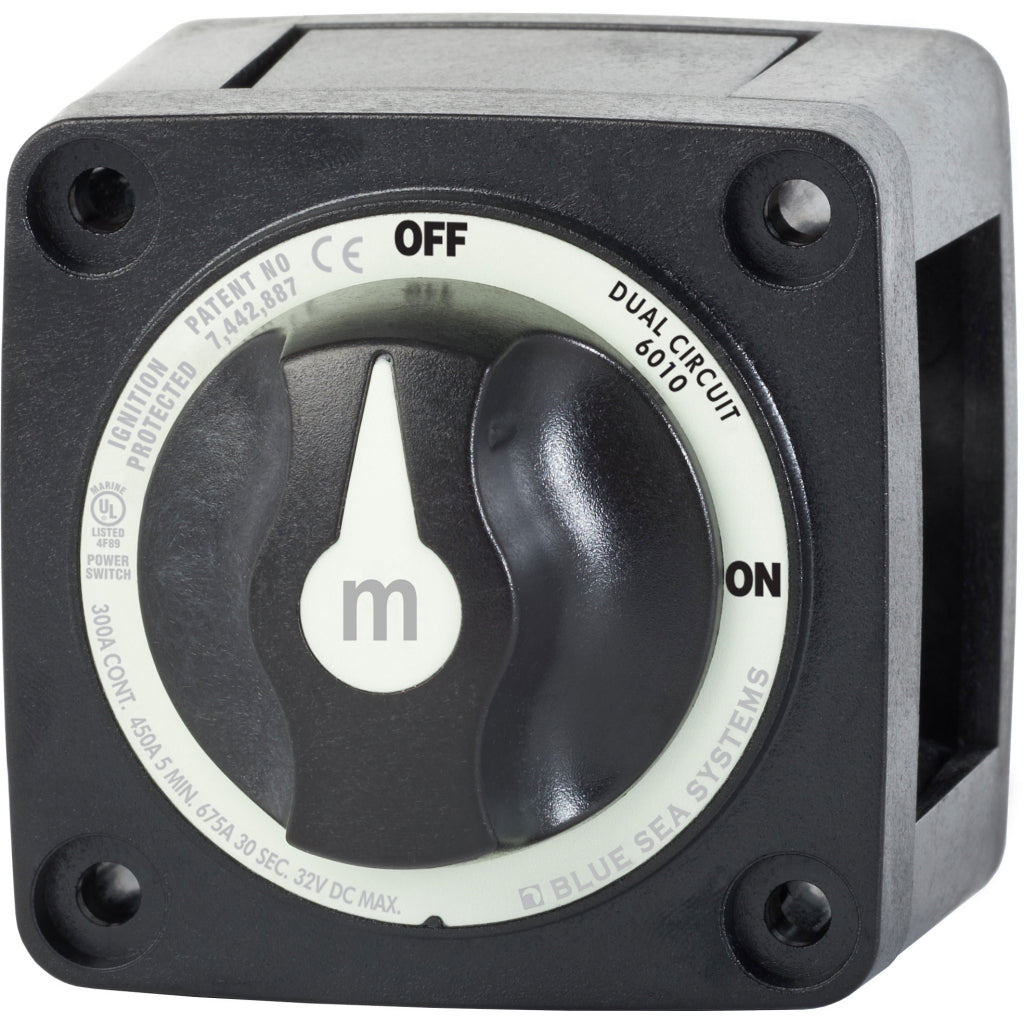

Blue Sea Black Mini Dual Circuit Battery Switch

Item Number: BS6010200

Simultaneously switches two isolated battery banks.

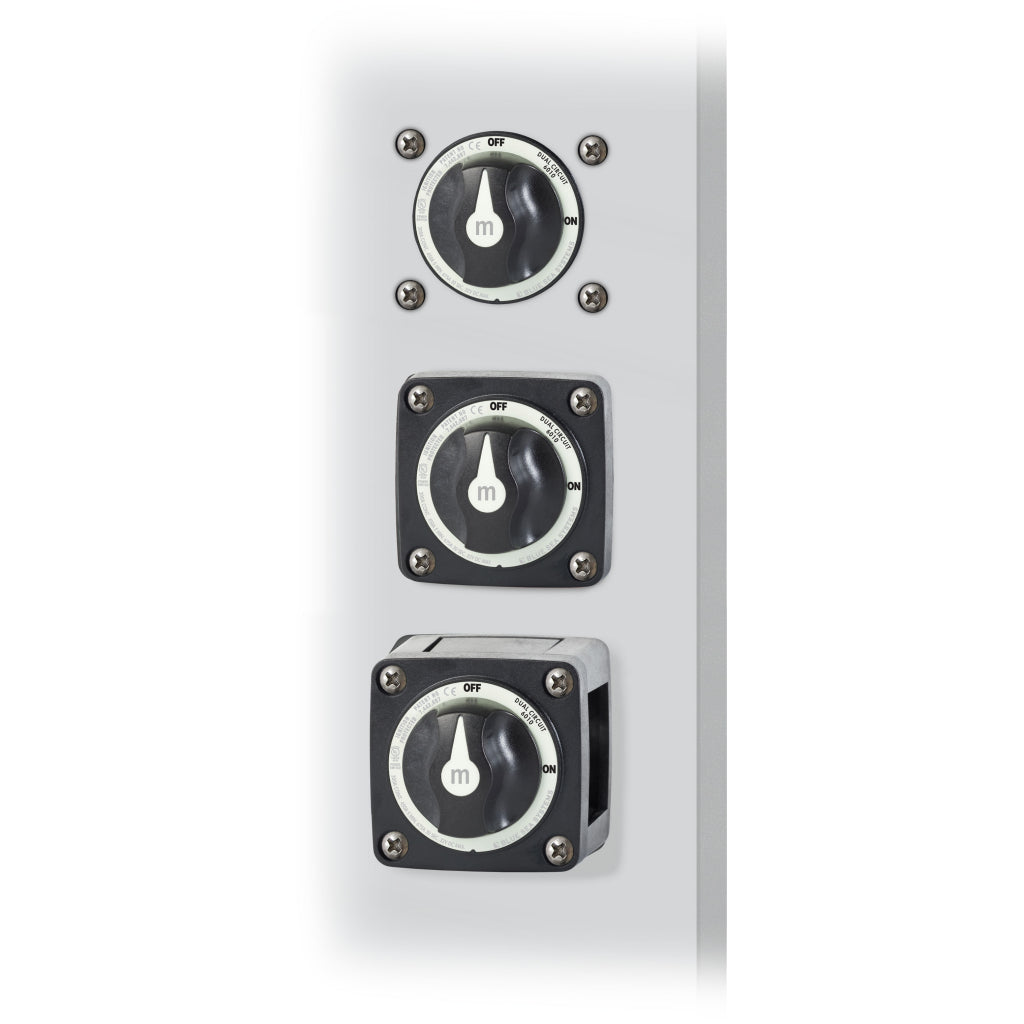

  • Case design allows surface, front panel, or rear panel mounting
  • Safe for installation aboard gasoline powered boats  Ignition protected

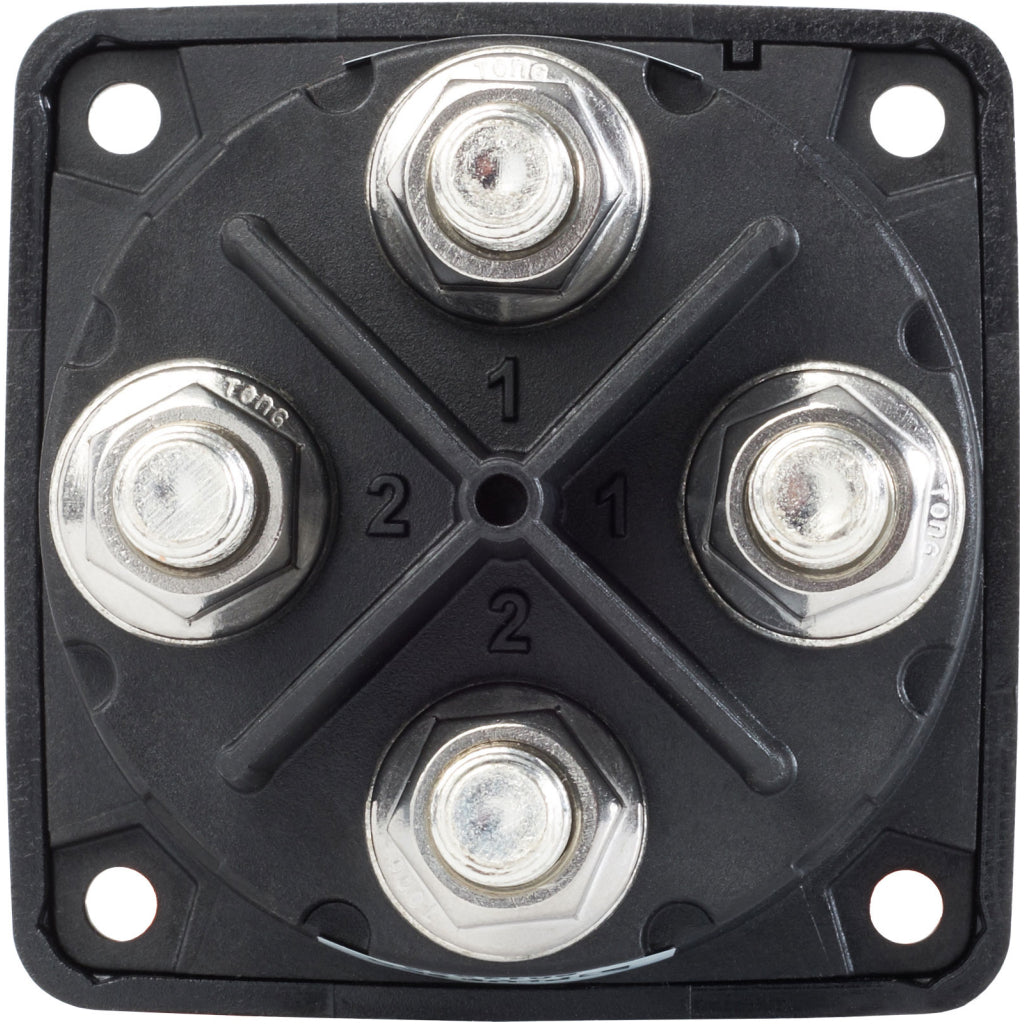

  • Isolating cover with snap-on sections protects rear contacts
  • 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals
  • 7/8" (22.22mm) stud length to accept multiple cable terminals
  • Ideal for marine or RV applications
  • All non-corrosive marine grade metals
  • Molded in durable reinforced polycarbonate
  • Tactile textures indicate knob position by feel only
  • Label with international ON/OFF legends
  • Removable key or knob remains positively retained
  • ICON label set included for circuit identification
  • Switch Type: Dual Circuit
  • Color:Black
  • Switch Positions:2
  • Battery Combine:No
  • Alternator Field Disconnect: No
  • Maximum Voltage:32V DC
  • Stud Size:3/8"
  • Terminal Stud Torque:120 in-lb (13.56 Nm)
  • Continuous Rating: 300A
  • Intermittent Rating: 450A (5 min)
  • Cranking Rating: 30 sec 675A per circuit
  • Battery Inputs:2
  • Cable Clearance For 4/0 AWG Cables:1.12in (28.45 mm)
  • Cable Size to Meet Ratings:4/0 AWG (120mm²)
  • Mounting Holes:Accept 10 Screw
  • Stud Material:Tinned Copper
  • Stud Torque:120 in-lb (13.56 Nm)
  • Terminal Stud Size:3/8" - 16 (M10)
  • Weight:0.80lb (0.36 kg)
