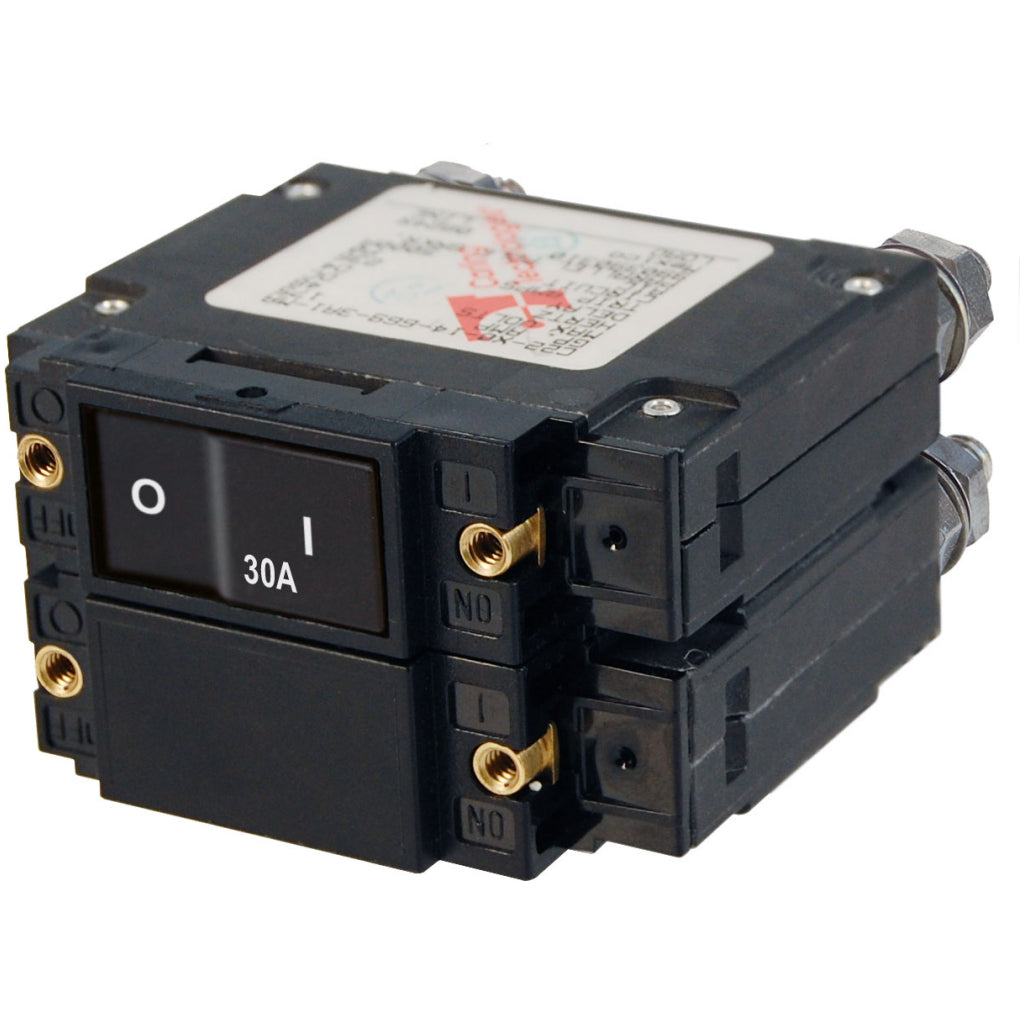

Blue Sea C-Series 30A Circuit Breaker

Item# 7560

Features:

• 5,000 Ampere interrupt capacity to meet ABYC requirements for 120/240 Volt 30 Ampere main protection
• Double pole can be used as 120 Volt AC main circuit breaker to switch hot and neutral.
• Triple pole can be used as 240 Volt AC main circuit breaker to switch both lines (hots) and neutral
• Circuit breakers will trip all poles if any one pole trips
• “Trip Free” design cannot be held “ON” during fault current condition

Specifications:

• str>Amperage:30A AC
• Actuator Style:Flat Rocker
• Poles:2
• Maximum Voltage:120V AC
• 240V AC
• Circuit Breaker Type: Magnetic Hydraulic - trip free
• Terminal Stud Torque:35 in-lb (3.95 Nm)
• Interrupt Capacity: 5000A
• Minimum Operating Temperature:-40° C
• Maximum Operating Temperature: 85° C
• Mounting Screw:6-32 Stainless Steel
• Mounting Screw Torque:6 in-lb (0.68 Nm)
• Switching Cycles:10000
• Terminal Stud:1/4-20 Tin-Plated Brass
• Weight:0.64lb (0.29 kg)
