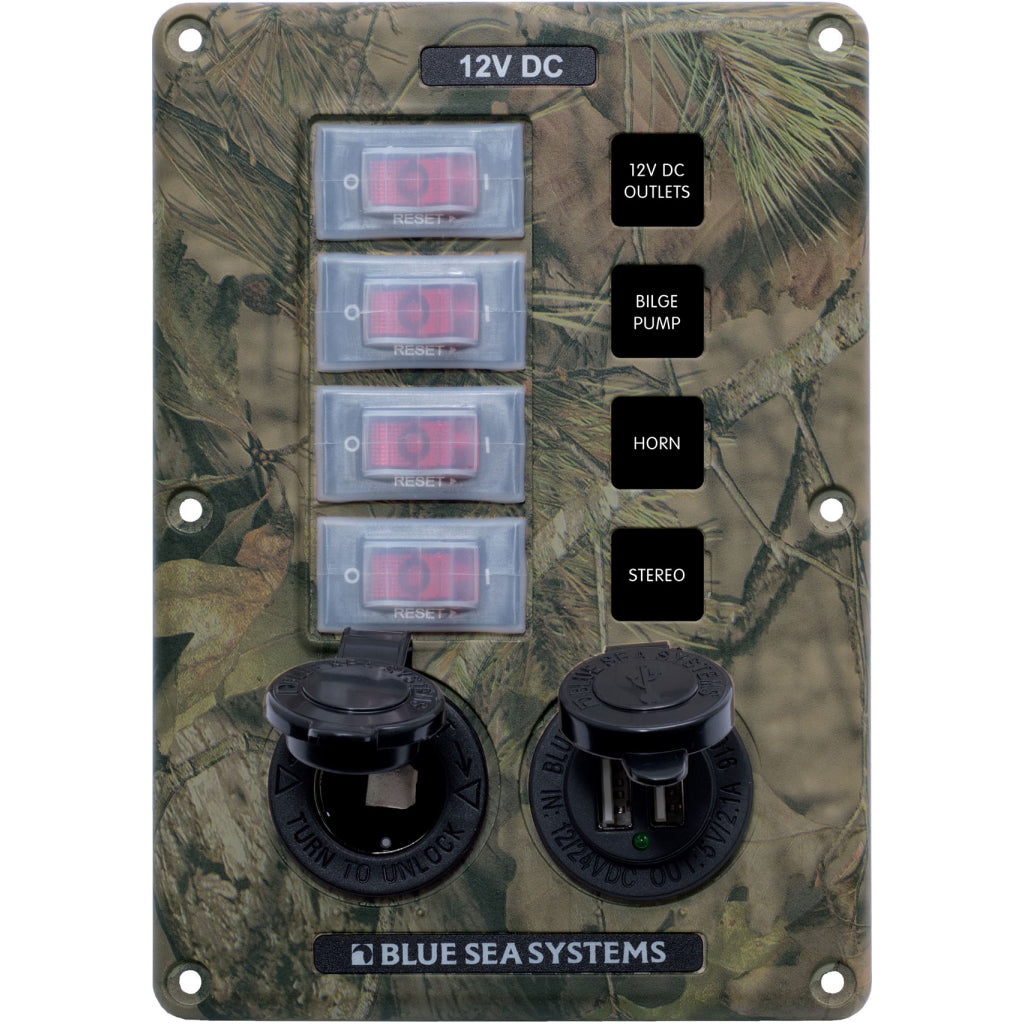

Blue Sea Camo Circuit Breaker Switch Panel

Item# 4324

Designed for exposed mounting applications.

Features:

• Illuminated 15A circuit breakers provide switching, “ON” indication and overcurrent protection
• Industry-standard sizes and mounting allow these panels to be easily retroftted in an existing application
• Polycarbonate/ABS panel surface is UV-stabilized, ame retardant, and will not corrode
• Silicon breaker boots and gasket protects against water ingress
• Low profile makes it easy to install in tight spaces
• Fast-on circuit breaker connectors make it quick to wire

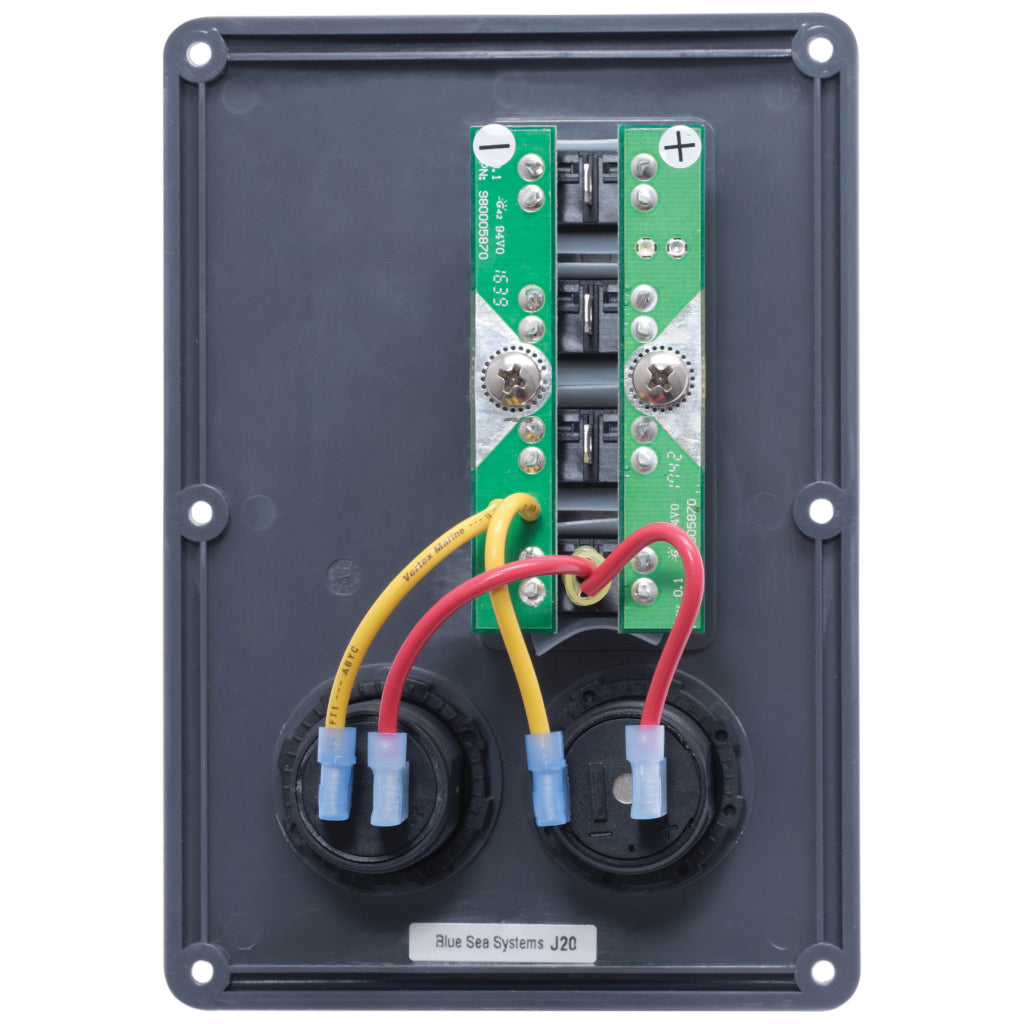

• Two-wire connection for powering all panels is simple and requires 10 ring terminals. Terminals screw to bus bars for secure connections
• Set of 15 square format circuit labels are included, and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems

Specifications:

• Color:Camo
• Positions:4
• Nominal Voltage:12V DC
• Maximum Amperage: 45A
• Terminal Type:1/4" Male quick connect
• Hardware:Stainless Steel 6 x 5/8" mounting screws
• Ring Terminal Size:M5 (10)
• Height: 6.625in (168.28 mm)
• Width: 4.625in (117.48 mm)
• Depth: 1.75in (44.45 mm)
