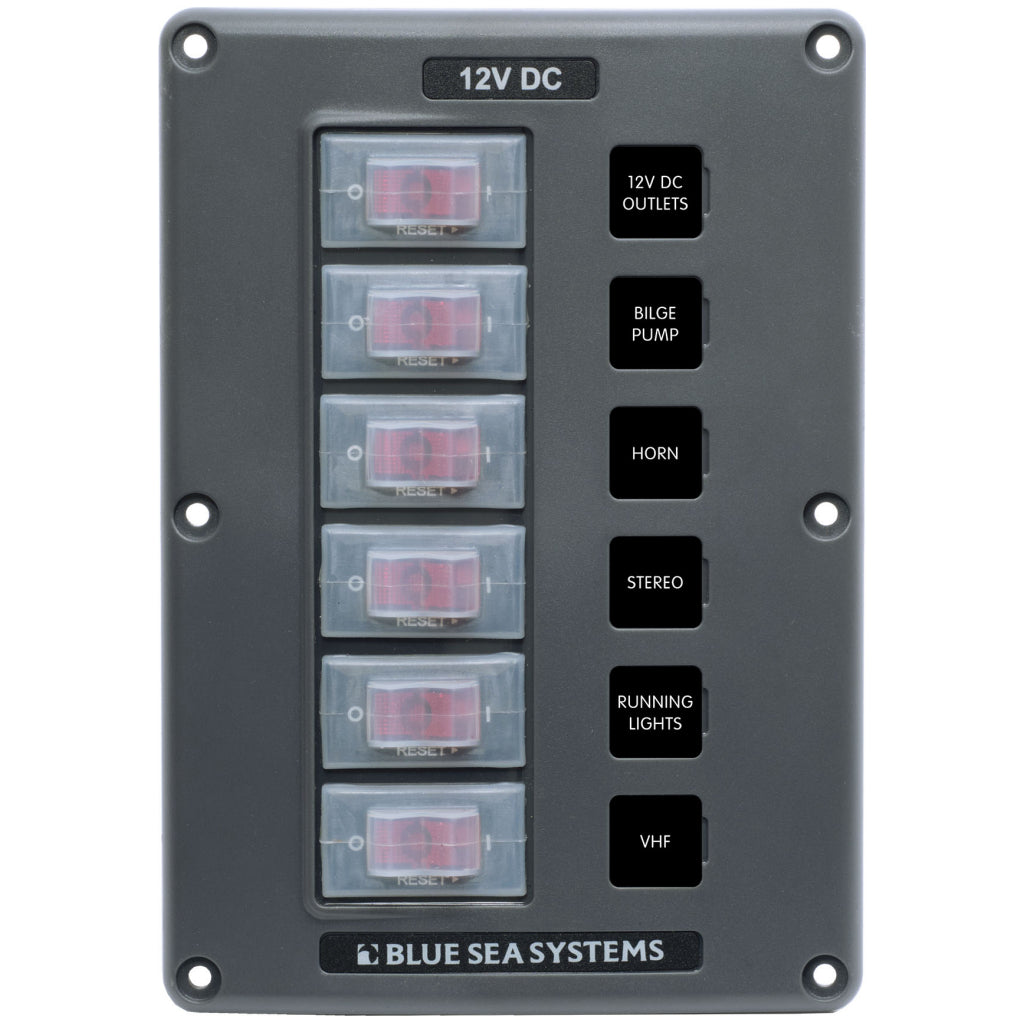

Blue Sea Circuit Breaker Switch Panel

SKU# BS4322
$7599
Check Delivery Time

Blue Sea Circuit Breaker Switch Panel may require an additional to 2 days to ship.

Shipping

Rigging Shoppe ships to Canada only. ALL prices listed on this website in Canadian dollars.

Shipping within 24 hours if possible. Delivery usually 2 - 5 business days in Canada.

Shipping charges will be visible before entering credit card information when ordering.

Learn about our complete shipping policy here.

Item# 4322

Features:

  • Designed for exposed mounting applications
  • Illuminated 15A circuit breakers provide switching, “ON” indication and overcurrent protection
  • Industry-standard sizes and mounting allow these panels to be easily retroftted in an existing application
  • Polycarbonate/ABS panel surface is UV-stabilized, ame retardant, and will not corrode
  • Silicon breaker boots and gasket protects against water ingress
  • Low profle makes it easy to install in tight spaces

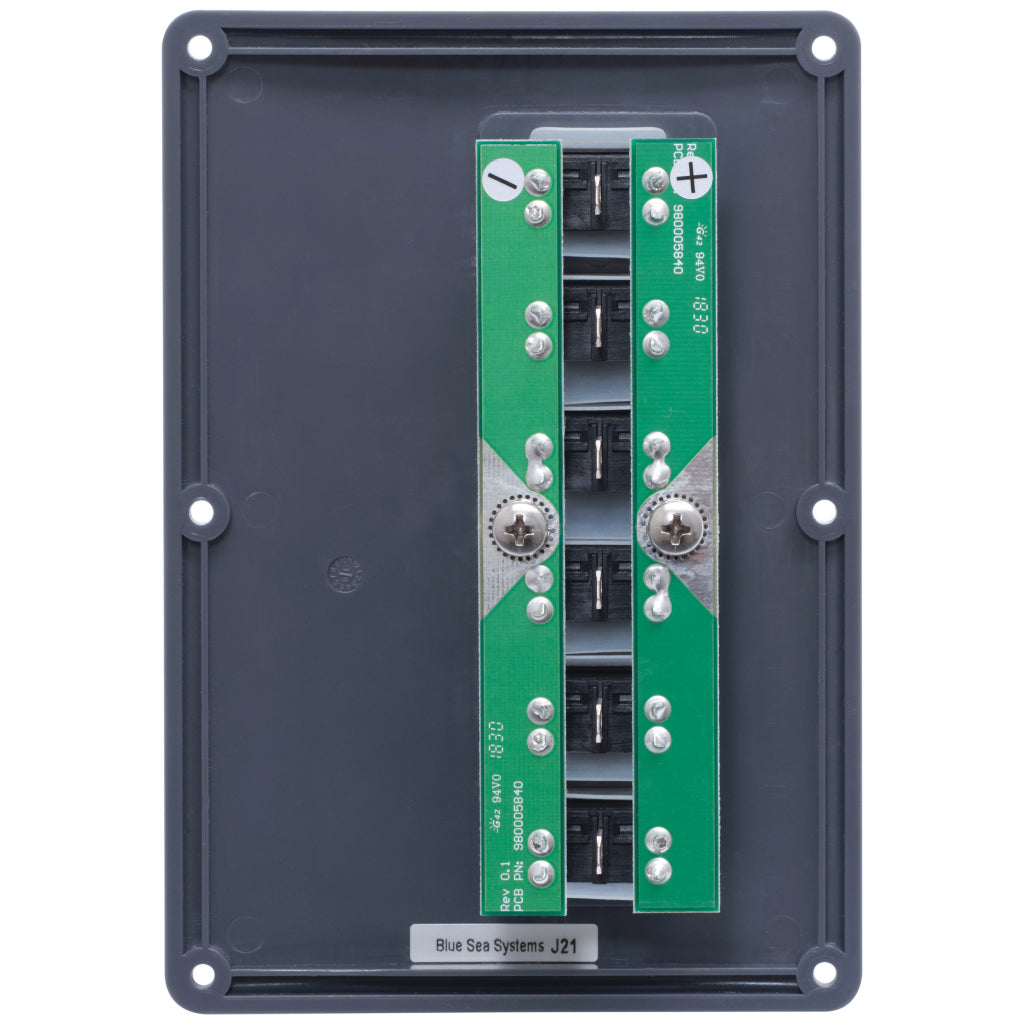

  • Fast-on circuit breaker connectors make it quick to wire
  • Two-wire connection for powering all panels is simple and requires 10 ring terminals. Terminals screw to bus bars for secure connections
  • Set of 15 square format circuit labels are included, and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems

Specifications:

  • Color:Gray
  • Positions:6
  • Nominal Voltage:12V DC
  • Maximum Amperage: 45A
  • Terminal Type:1/4" Male quick connect
  • Hardware:Stainless Steel 6 x 5/8" mounting screws
  • Ring Terminal Size:M5 (10)
  • Height:6.625in (168.28 mm)
  • Width:4.625in (117.48 mm)
  • Depth:1.75in (44.45 mm)
