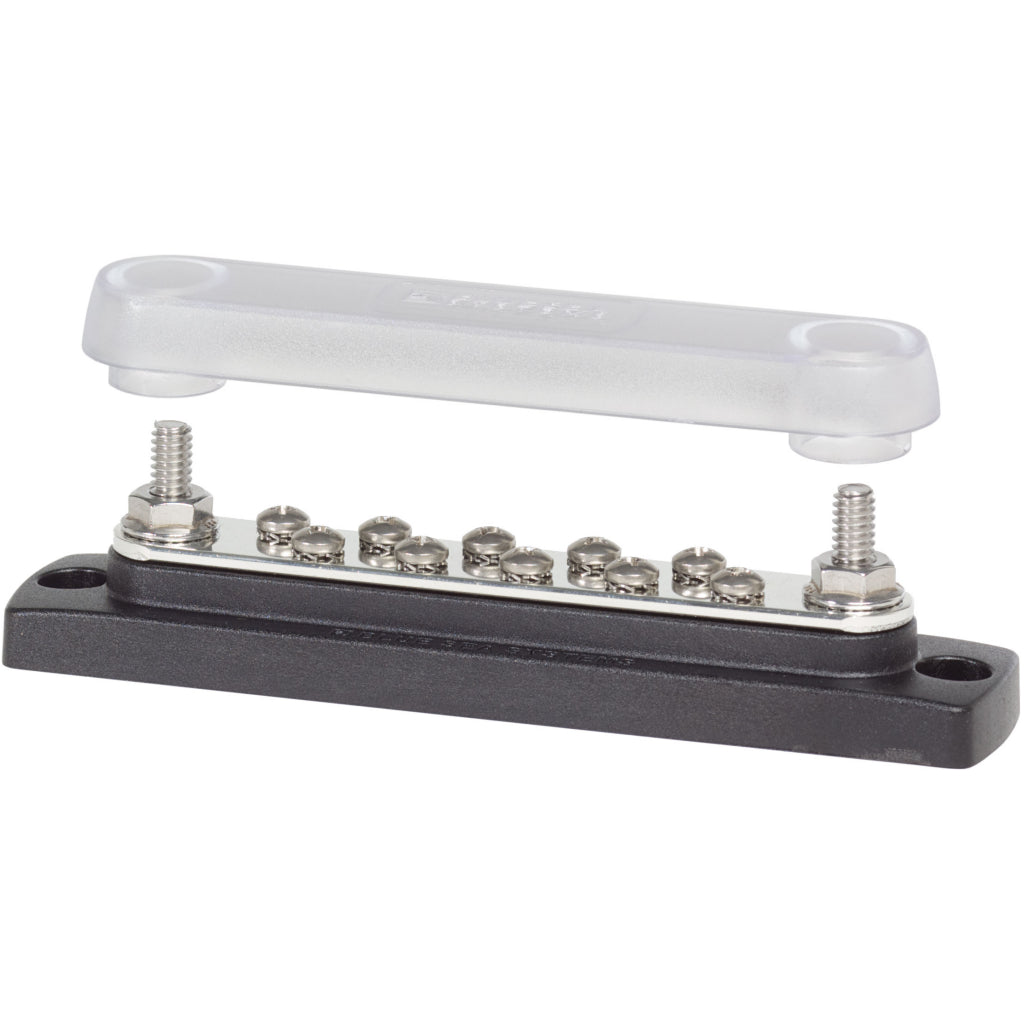

Item Number: BS2300

The industry standard busbar for positive distribution. The industry standard busbar for the collection of negative or AC ground circuits

Specifications:

  • Maximum Voltage:300V AC
  • 48V DC
  • Number of Screw Terminals:10
  • Number of Terminal Studs:2
  • Terminal Type:1/4" Stud
  • 8-32 Screw
  • Continuous Rating: 130A AC
  • 150A DC
  • Base Material:UL 94-V0 Rated, Glass Reinforced Thermoplastics
  • Bus Material:Tin-Plated Copper CDA 110 / UNS 11000
  • Cover Material:Clear Polycarbonate
  • Screw Terminal Torque:15 in-lb (1.69 Nm)
  • Stud Torque:60 in-lb (6.78 Nm)
  • Weight:0.37lb (0.17 kg)
