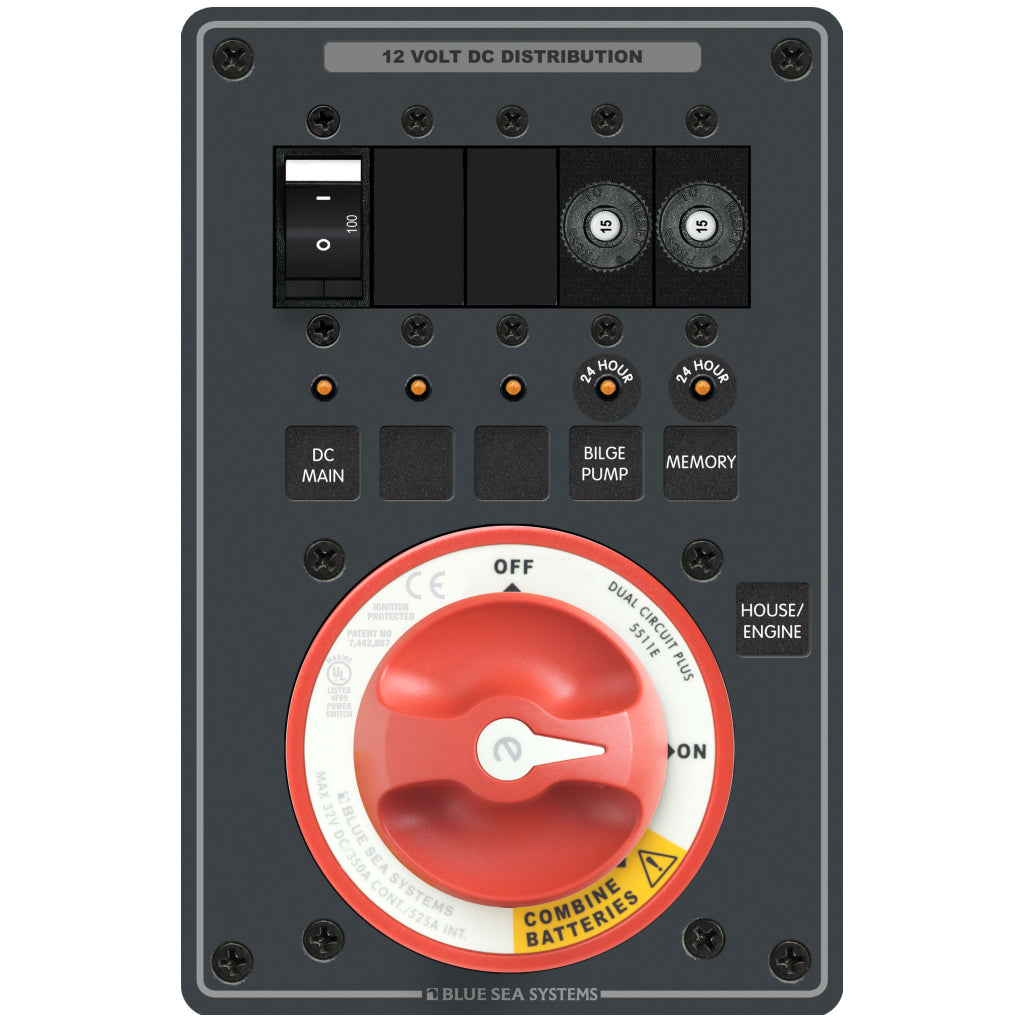

Blue Sea Dual Battery Bank Management Panel
ELECTRICAL

Blue Sea Dual Battery Bank Management Panel

SKU# BS8690
$32799
Check Delivery Time

Blue Sea Dual Battery Bank Management Panel may require an additional to 2 days to ship.

Shipping

Rigging Shoppe ships to Canada only. ALL prices listed on this website in Canadian dollars.

Shipping within 24 hours if possible. Delivery usually 2 - 5 business days in Canada.

Shipping charges will be visible before entering credit card information when ordering.

Learn about our complete shipping policy here.

✕
//riggingshoppe.com/cdn/shop/files/happy-child-on-sailboat_e18ec5af-8b2e-4722-ae68-af51a4129615_500x500.jpg?v=1667832716

Check Delivery Time


Item# 8690

Features:

  • Isolates the Engine circuit from the House circuit
  • Allows emergency cross connect between isolated battery banks
  • Protects electronics from sags and spikes caused by engine cranking

Specifications:

  • Positions:5
  • Nominal Voltage:12V DC
  • 24V DC
  • Maximum Voltage:32V DC
  • Continuous Rating:350A
  • Intermittent Rating: 525A (5 min)
  • Cranking Rating: 10 sec 1000A
  • Cranking Rating: 1 min 750A
  • Height:8.00in (203.2 mm)
  • Width:5.25in (133.35 mm)
  • Depth:3.50in (88.9 mm)
  • Weight:2.64lb (1.2 kg
