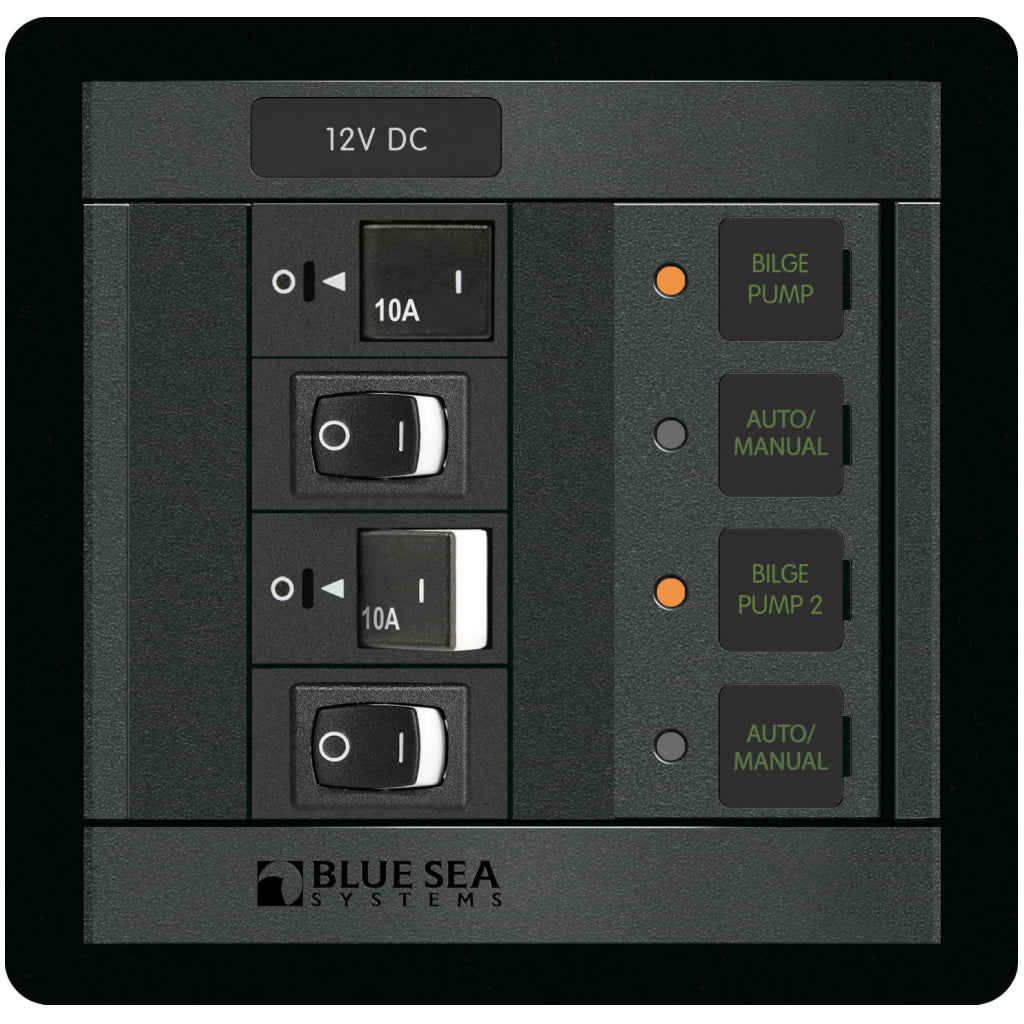

Blue Sea Dual Bilge Pump Control Panel

Item# 1522

Controls two bilge pumps<

Restricted-off circuit breakers and manual override switches

Features:

• On-indicating LED indicates power is available at the bilge pump float switch
• Restricted-off circuit breakers provide 24-hour circuit protection to the bilge pump float switch
• Manual Override switch with On-indicating LED provides visual indication pump is running also illuminates when pump is running as a result of float switch operation

Specifications:

• Nominal Voltage:12V DC
• Height:4.75in (120.65 mm)
• Width:4.88in (123.95 mm)
• Weight:0.67lb (0.3 kg)
