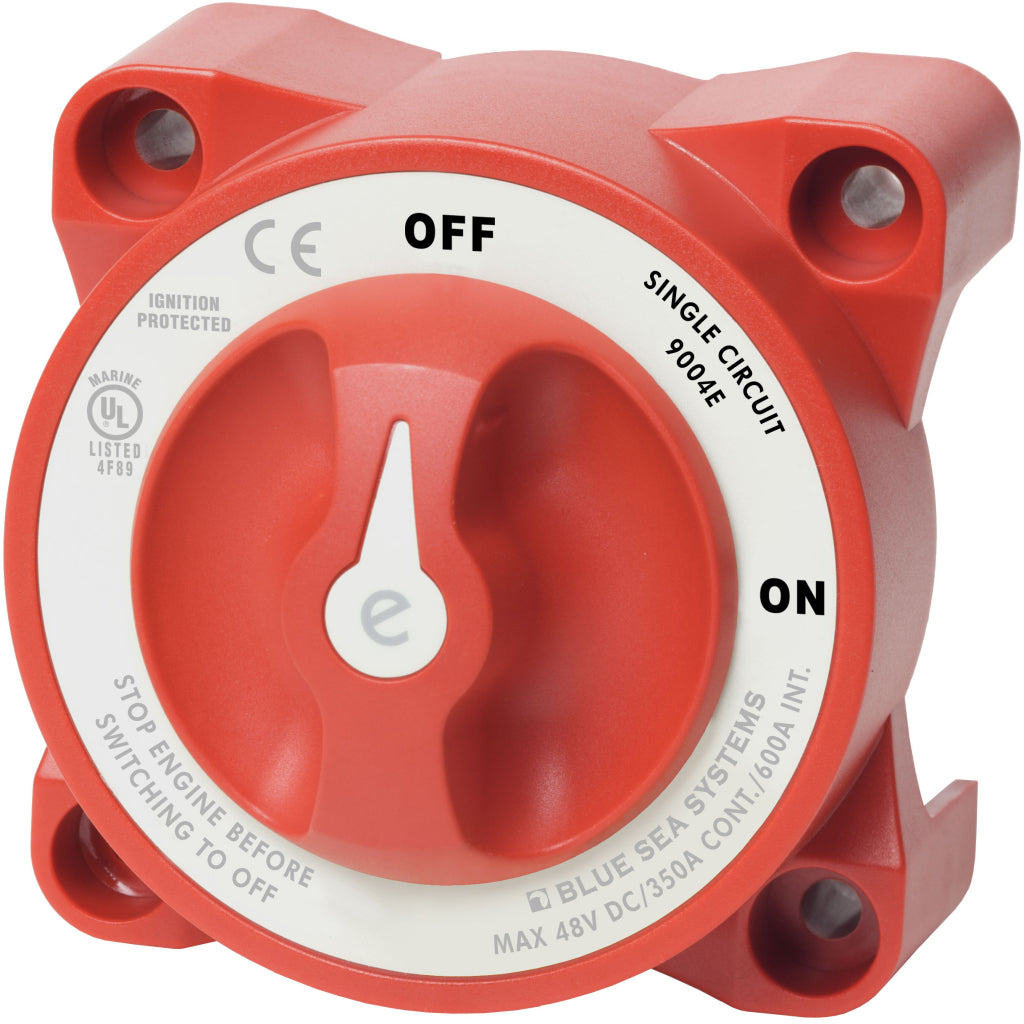

Blue Sea e-Series Battery Switch

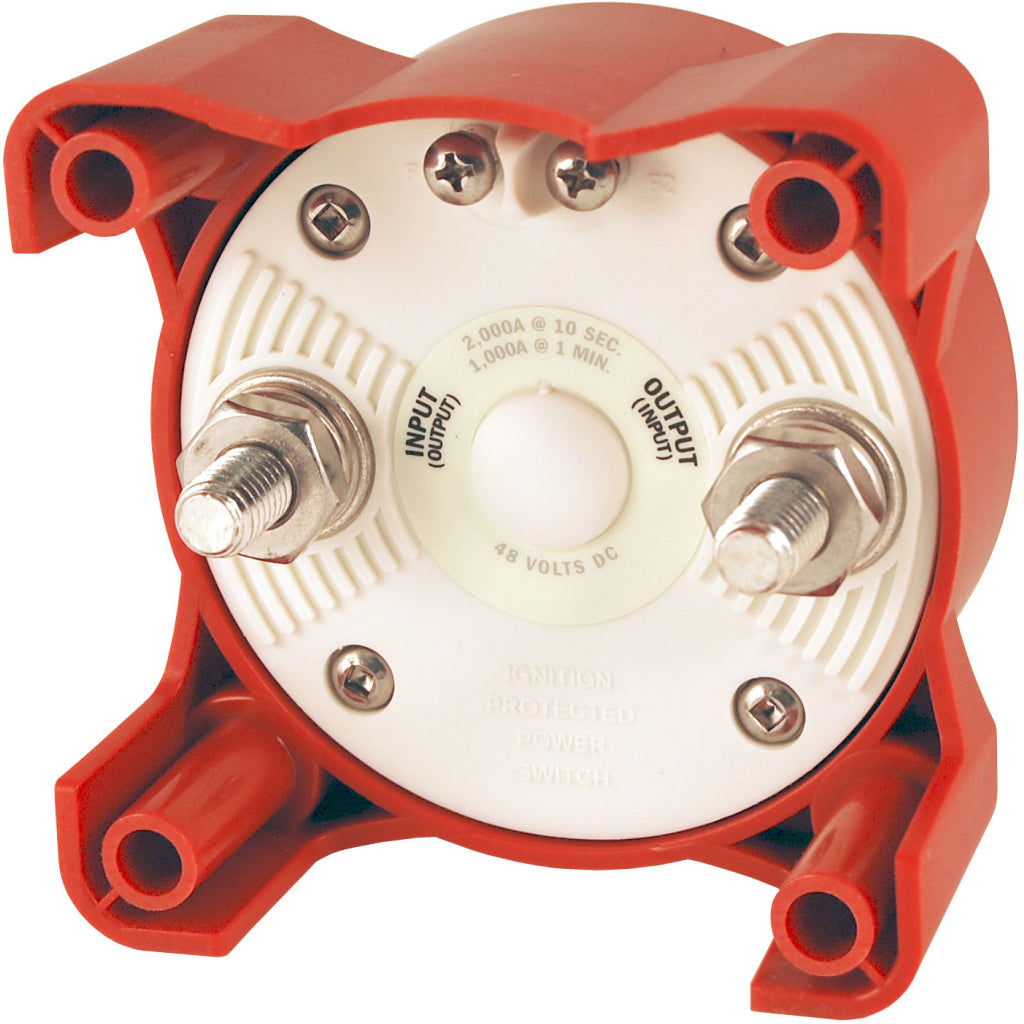

Blue Sea e-Series Battery Switch Reverse

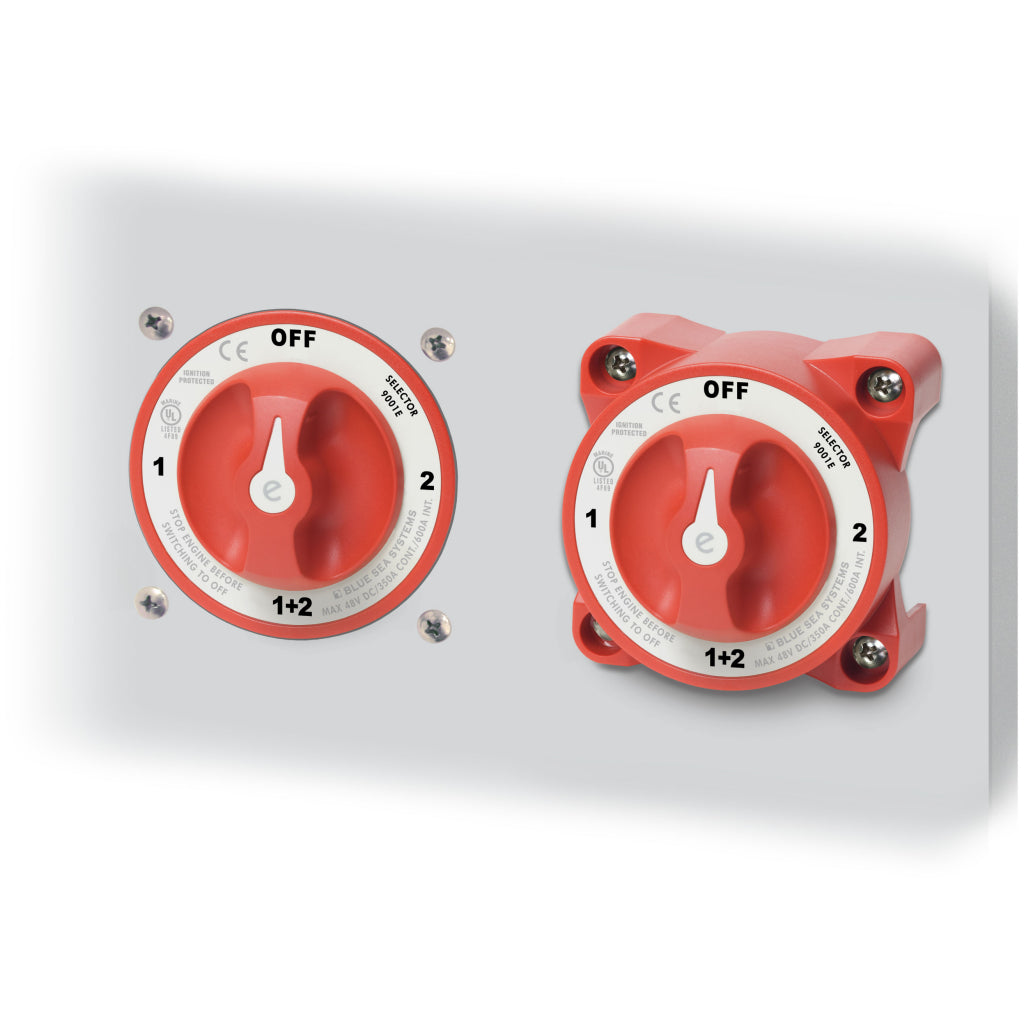

Blue Sea e-Series Battery Switch Mounting Options
Blue Sea e-Series Battery Switch
Blue Sea e-Series Battery Switch Reverse
Blue Sea e-Series Battery Switch Mounting Options
ELECTRICAL

Blue Sea 9004E ON-OFF Battery Switch w/AFD -Red

SKU# BS9004E
$9599
Check Delivery Time

Blue Sea 9004E ON-OFF Battery Switch w/AFD -Red may require an additional to 2 days to ship.

Shipping

Rigging Shoppe ships to Canada only. ALL prices listed on this website in Canadian dollars.

Shipping within 24 hours if possible. Delivery usually 2 - 5 business days in Canada.

Shipping charges will be visible before entering credit card information when ordering.

Learn about our complete shipping policy here.

✕
//riggingshoppe.com/cdn/shop/files/happy-child-on-sailboat_e18ec5af-8b2e-4722-ae68-af51a4129615_500x500.jpg?v=1667832716

Check Delivery Time


Item# 9004E

Switches a single battery to a single load group.

Features:

  • Includes AFD (Alternator Field Disconnect)
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Case design allows surface or rear panel mounting

Specifications:

  • Switch Type: Single Circuit ON-OFF
  • Color:Red
  • Switch Positions:2
  • Battery Combine:No
  • Alternator Field Disconnect: Yes
  • Maximum Voltage:48V DC
  • Terminal Stud Torque:140 in-lb (15.82 Nm)
  • Continuous Rating: 350A
  • Intermittent Rating: 600A (5 min)
  • Cranking Rating: 30 sec 1200A
  • Battery Inputs:1
  • Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)
  • Cable Size to Meet Ratings:4/0 AWG (120mm²)
  • Mounting Holes:Accept 1/4" (M6) Screw
  • Stud Material: Tinned Copper
  • Terminal Stud Size:3/8" - 1
  • 6 (M10)
  • Weight: 1.30lb (0.59 kg)
