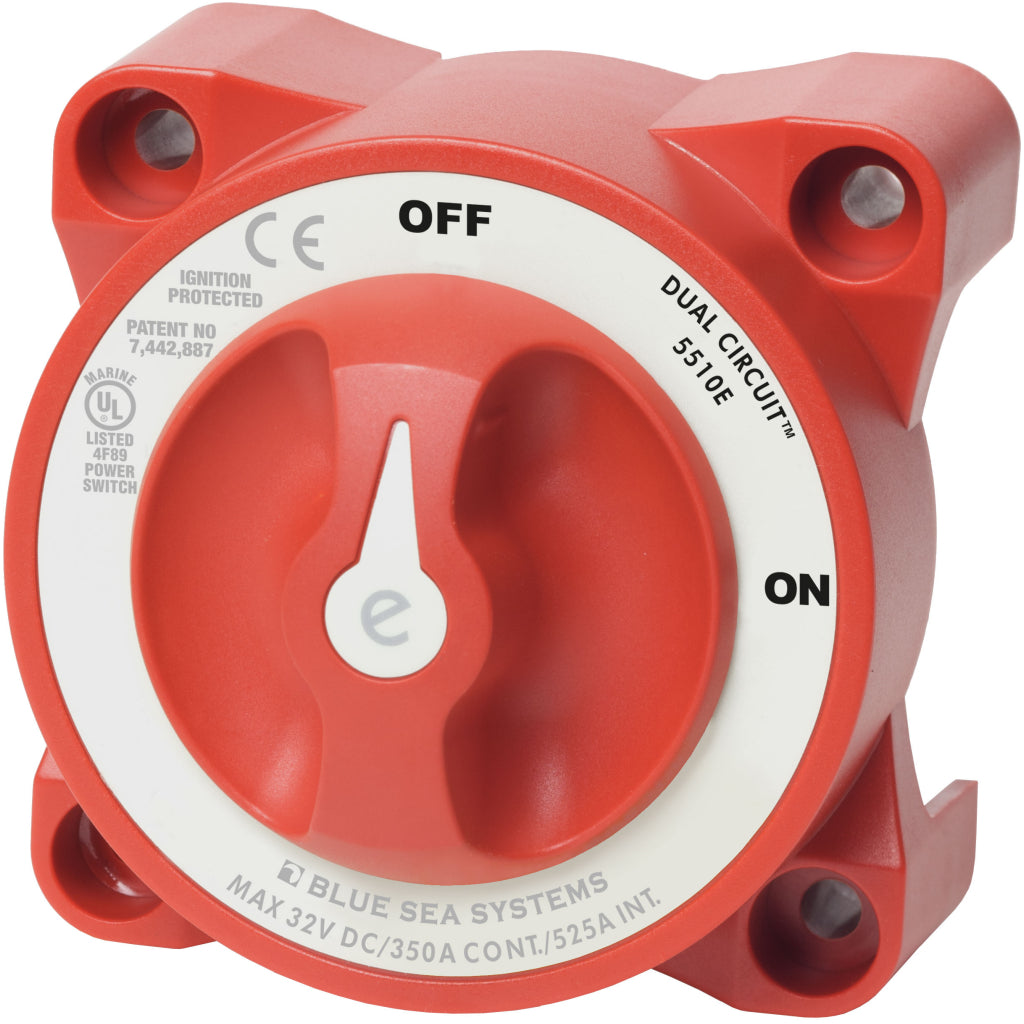

Item# 5510E
Simultaneously switches two isolated battery banks.
Features:
- Ignition protected—safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
Specifications:
Switch Type: Dual Circuit- Color:Red
- Switch Positions:2
- Battery Combine:No
- Alternator Field Disconnect: No
- Maximum Voltage:32V DC
- Terminal Stud Torque:140 in-lb (15.82 Nm)
- Continuous Rating: 350A
- Intermittent Rating:525A (5 min)
- Cranking Rating: 30 sec 700A per circuit
- Battery Inputs:2
- Cable Clearance For 4/0 AWG Cables:1.10in (27.94 mm)
- Cable Size to Meet Ratings:4/0 AWG (120mm²)
- Mounting Holes:Accept 1/4" (M6) Screw
- Stud Material:Tinned Copper
- Terminal Stud Size:3/8" - 16 (M10)
- Weight:1.30lb (0.59 kg)
