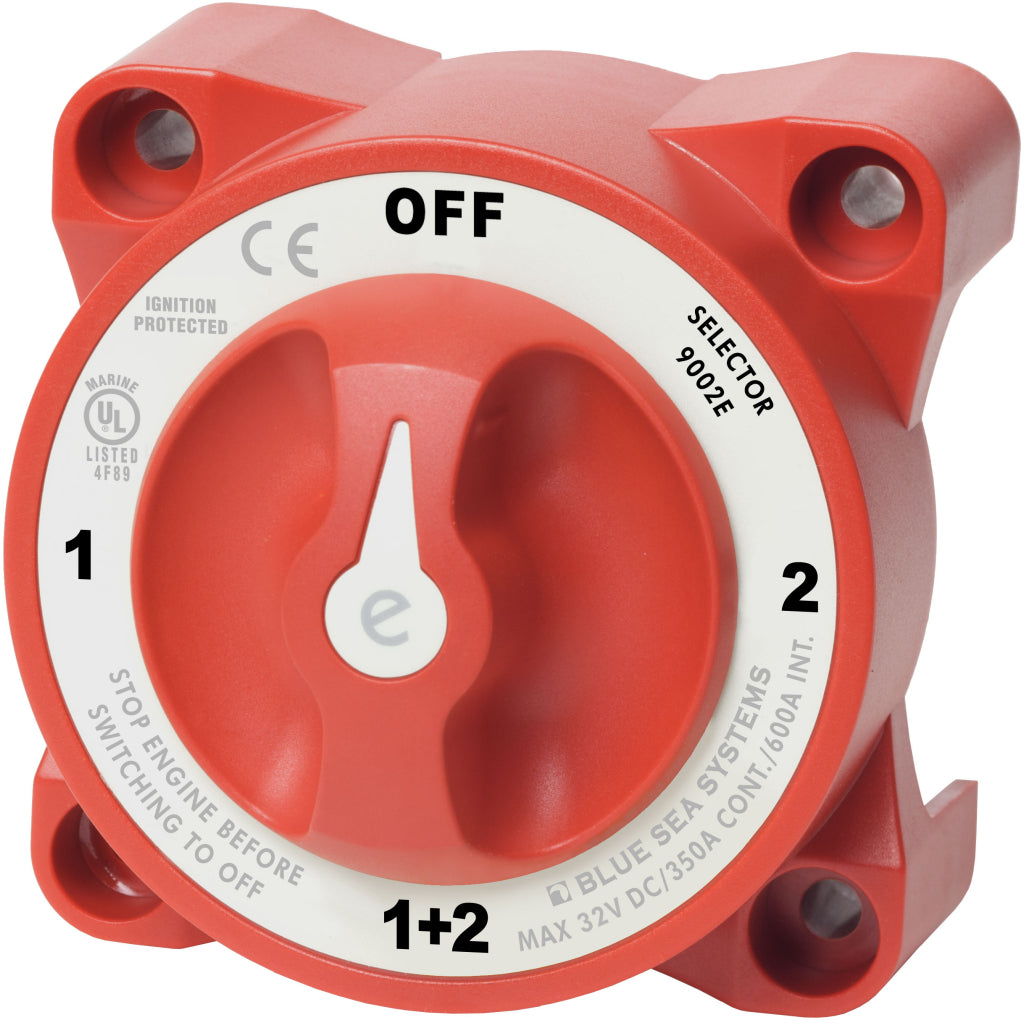

Blue Sea 9002E 4-Way Battery Switch w/AFD-Red

Item# 9002E

Switches isolated battery banks to all loads or combines battery banks to all loads.

Features:

• Includes AFD (Alternator Field Disconnect)
• Make-before-break contact design allows switching between battery banks without power interruption
• Ignition protected—safe for installation aboard gasoline powered boats

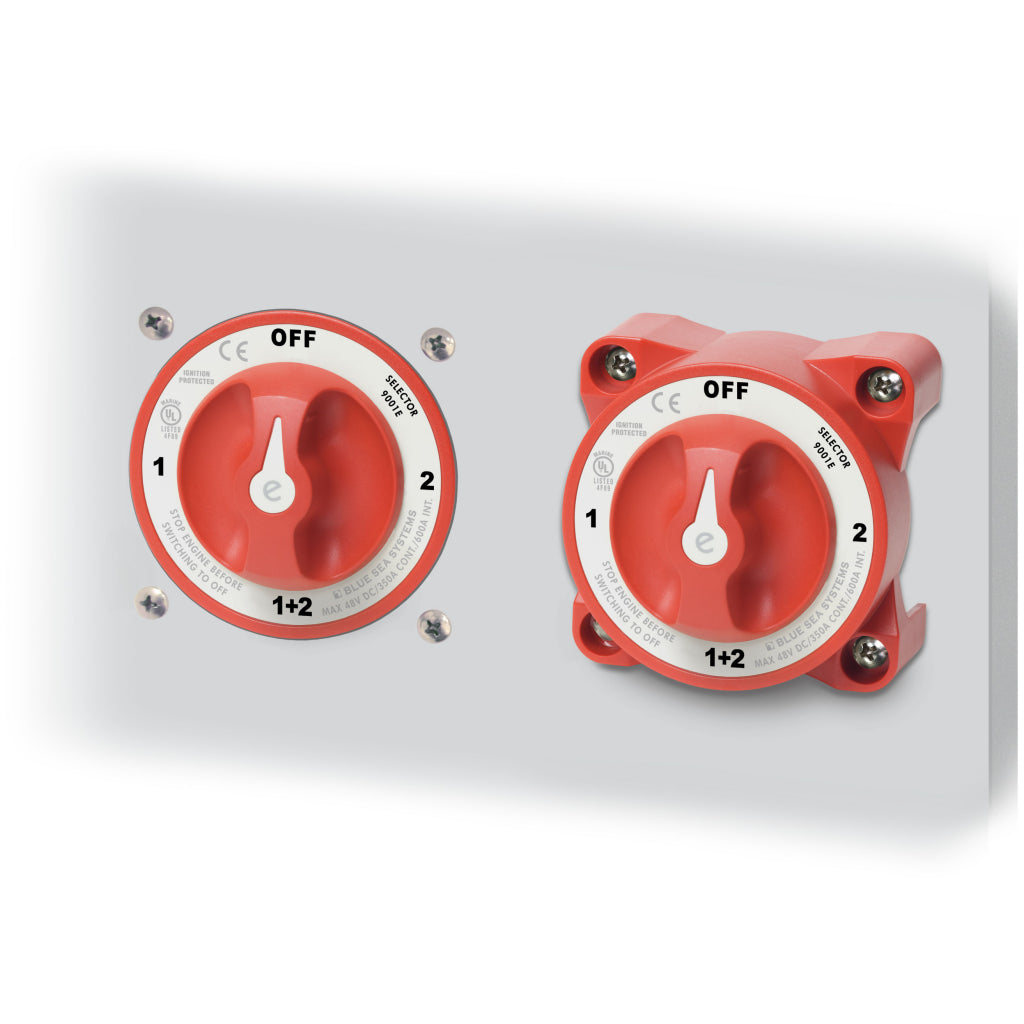

• Case design allows surface or rear panel mounting

Specifications:

• Switch Type: Selector 4 Position
• Color:Red
• Switch Positions:4
• Battery Combine:Yes
• Alternator Field Disconnect: Yes
• Maximum Voltage:32V DC
• Terminal Stud Torque:140 in-lb (15.82 Nm)
• Continuous Rating: 350A
• Intermittent Rating: 600A (5 min)
• Cranking Rating: 30 sec 1200A

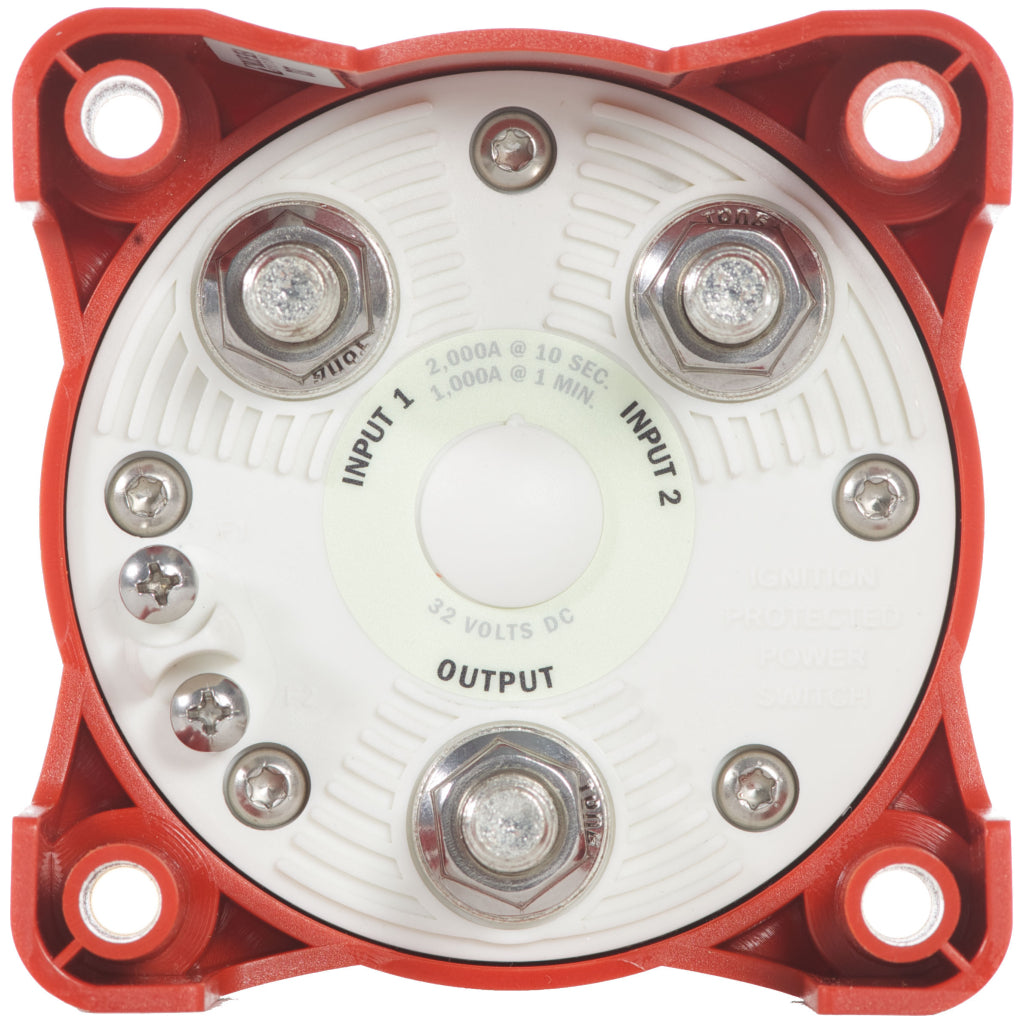

• Battery Inputs:2
• Cable Clearance For 4/0 AWG Cables:1.10in (27.94 mm)
• Cable Size to Meet Ratings:4/0 AWG (120mm²)
• Mounting Holes:Accept 1/4" (M6) Screw
• Stud Material:Tinned Copper
• Terminal Stud Size:3/8" - 16 (M10)
• Weight:1.30lb (0.59 kg)
