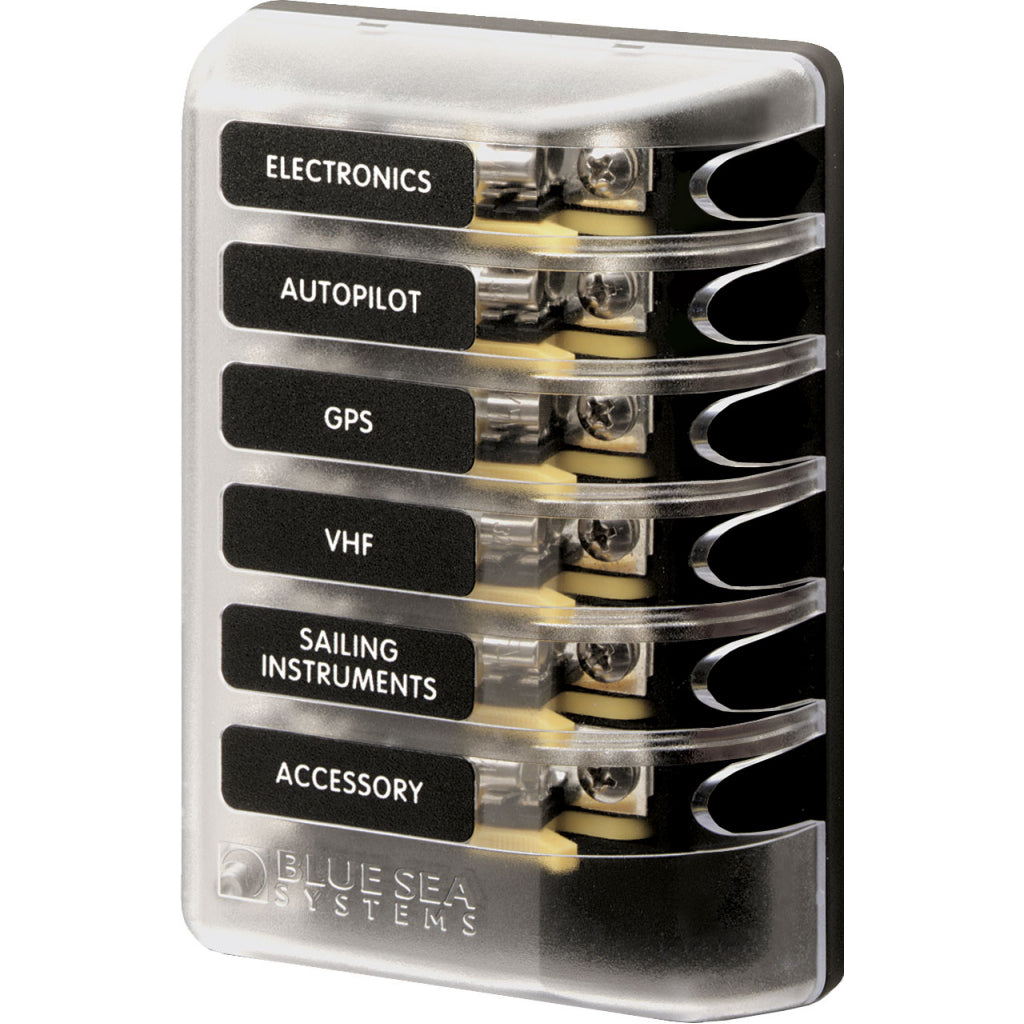

Blue Sea Glass 6 Circuit Fuse Block

Item# 5018

Innovative design allows for labeling, spare fuse storage, and easy fuse removal

Features:

• Clear insulating cover with label recesses for accept Large Format Labels
• Cover insulates all conductive parts, satisfying ABYC/USCG requirements and storing spare fuses
• Tin-plated copper buses and Phosphor Bronze fuse clips give 30 Ampere rating per circuit
• Accepts AGC (Fast Acting), MDL (Time-Delay) and all other 3AG Glass Fuses

Specifications:

• Maximum Amperage: 100A per block
• 30A per circuit
• Maximum Voltage:32V DC
• Mounting:8 Screw (M4)
• Base Material:Reinforced Polycarbonate
• Cover Material:Polycarbonate
• Screw Terminal Type:8-32 with Captive Star Lockwasher
• Weight:0.48lb (0.22 kg)
