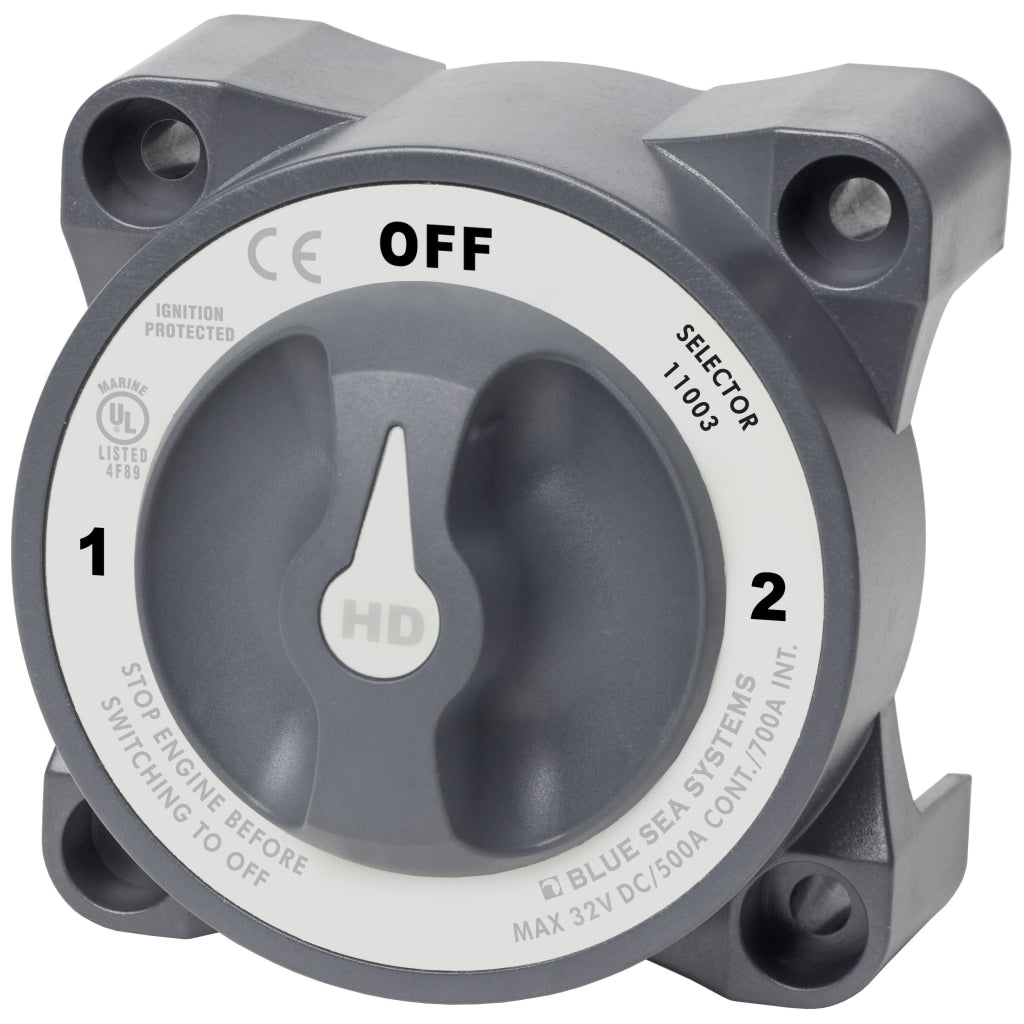

Blue Sea HD-Series Selector Battery Switch

Item# 11003

Switches isolated battery banks to all loads.

• Includes AFD (Alternator Field Disconnect)
• Ignition protected—safe for installation aboard gasoline powered boats
• Case design allows surface or rear panel mounting
• Accepts two 4/0 AWG (95mm²) battery cables

Specifications:

• Switch Type: Selector 3 Position
• Color:Grey
• Switch Positions:3
• Battery Combine:No
• Alternator Field Disconnect: Yes
• Maximum Voltage:32V DC
• Terminal Stud Torque:220 in-lb (24.86 Nm)
• Continuous Rating :500A
• Intermittent Rating: 700A (5 min)
• Cranking Rating: 30 sec 1600A

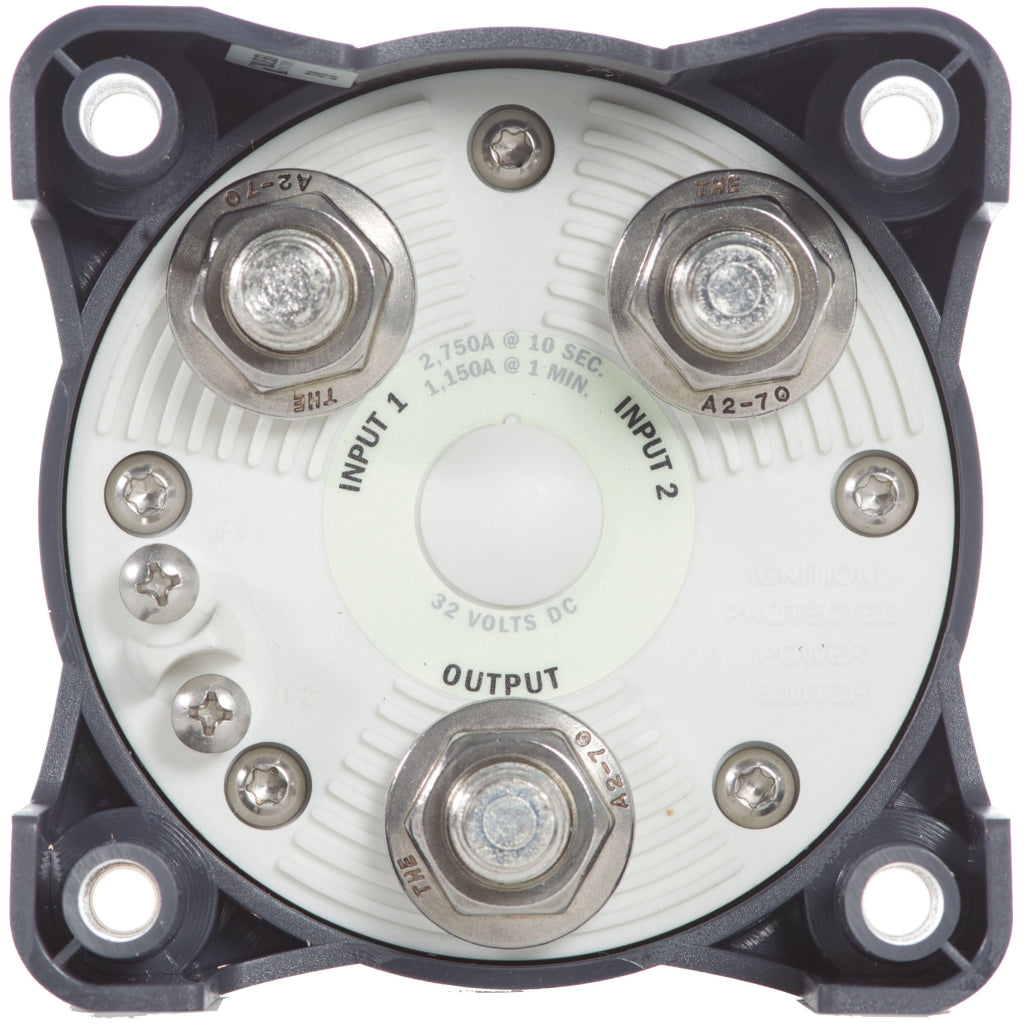

• Battery Inputs:2
• Cable Clearance For 4/0 AWG Cables:1.10in (27.94 mm)
• Cable Quantity to Meet Ratings:Two Cables / Terminal
• Cable Size to Meet Ratings:4/0 AWG (120mm²)
• Mounting Holes:Accept 1/4" (M6) Screw
• Stud Material:Tinned Copper
• Terminal Stud Size:1/2" (M12)
• Weight:1.30lb (0.59 kg)
