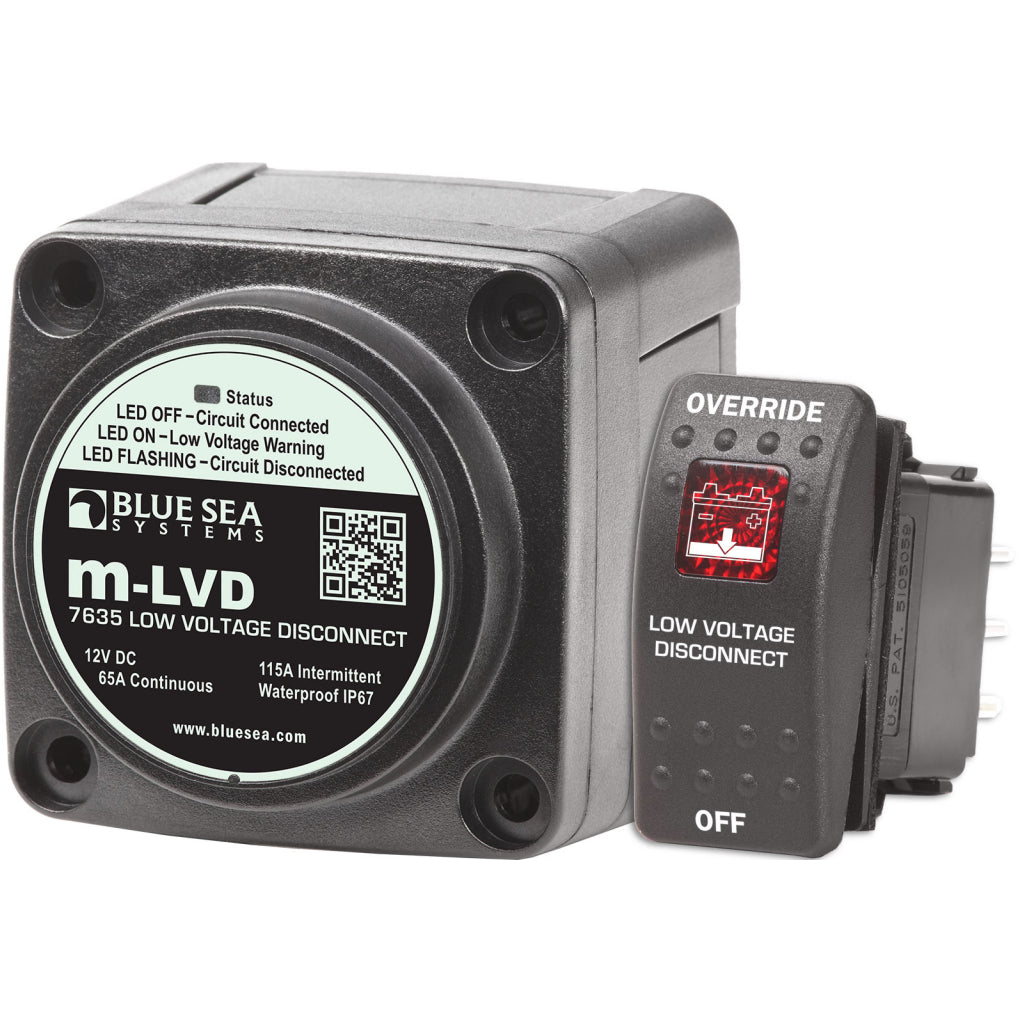

Blue Sea m-LVD Low Voltage Disconnect

$121.99 $103.70
Item Number: BS7635

Blue Sea m-LVD Low Voltage Disconnect usually available 2-5 business days upon ordering.

Senses low battery voltage and automatically disconnects devices to save power for starting or to preserve battery life

A dead battery is one of the most common reasons for a tow. Don't get stranded with a dead battery.

The m-LVD senses low battery voltage automatically disconnects non-essential devices to save power for starting or to preserve battery life.

The m-LVD is ideal for any single battery boat or vehicle that wants to avoid getting stranded with a dead battery.

Features:
  • Status light in both m-LVD and Remote Control Switch provides visual warning of low voltage state prior to disconnect
  • Alarm output available for audible warning of low voltage state prior to disconnect (optional alarm required)

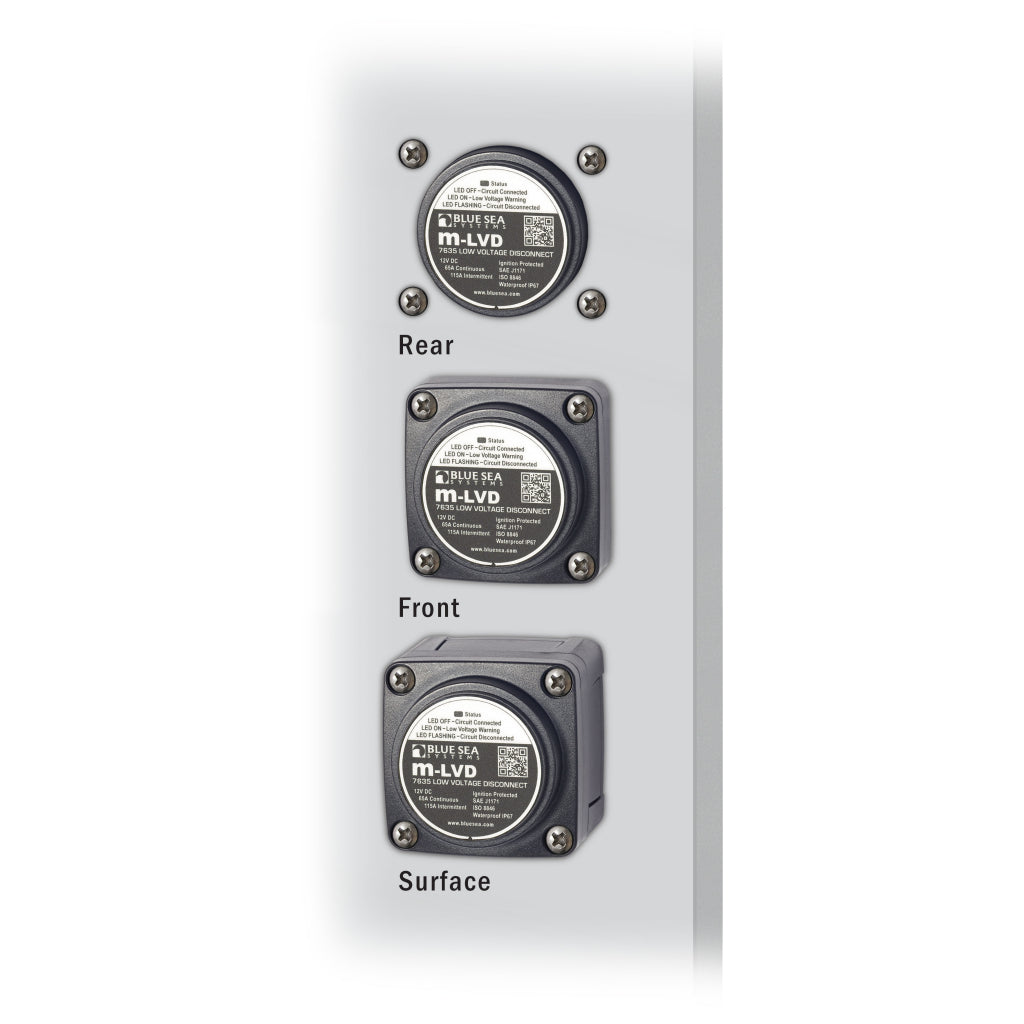

  • Case design allows surface, front panel, or rear panel mounting
  • Rear insulating cover protects rear contacts
  • Waterproof – rated IP67 for temporary immersion

Specifications:

  • Nominal Voltage:12V DC
  • Amperage Operating Current:95mA (Connected)
  • 4mA (Open)
  • Terminal Stud Torque:60 in-lb (6.78 Nm)
  • Continuous Rating: 65A
  • Intermittent Rating: 115A (5 Min)
  • Maximum Cable Size:1/0 AWG (50mm2)
  • Stud Material:Tinned Brass
  • Terminal Stud Length:7/16 in (11.11 mm)
  • Terminal Stud Size: 1/4" - 20 (M6)
  • Weight:0.77lb (0.35 kg)
