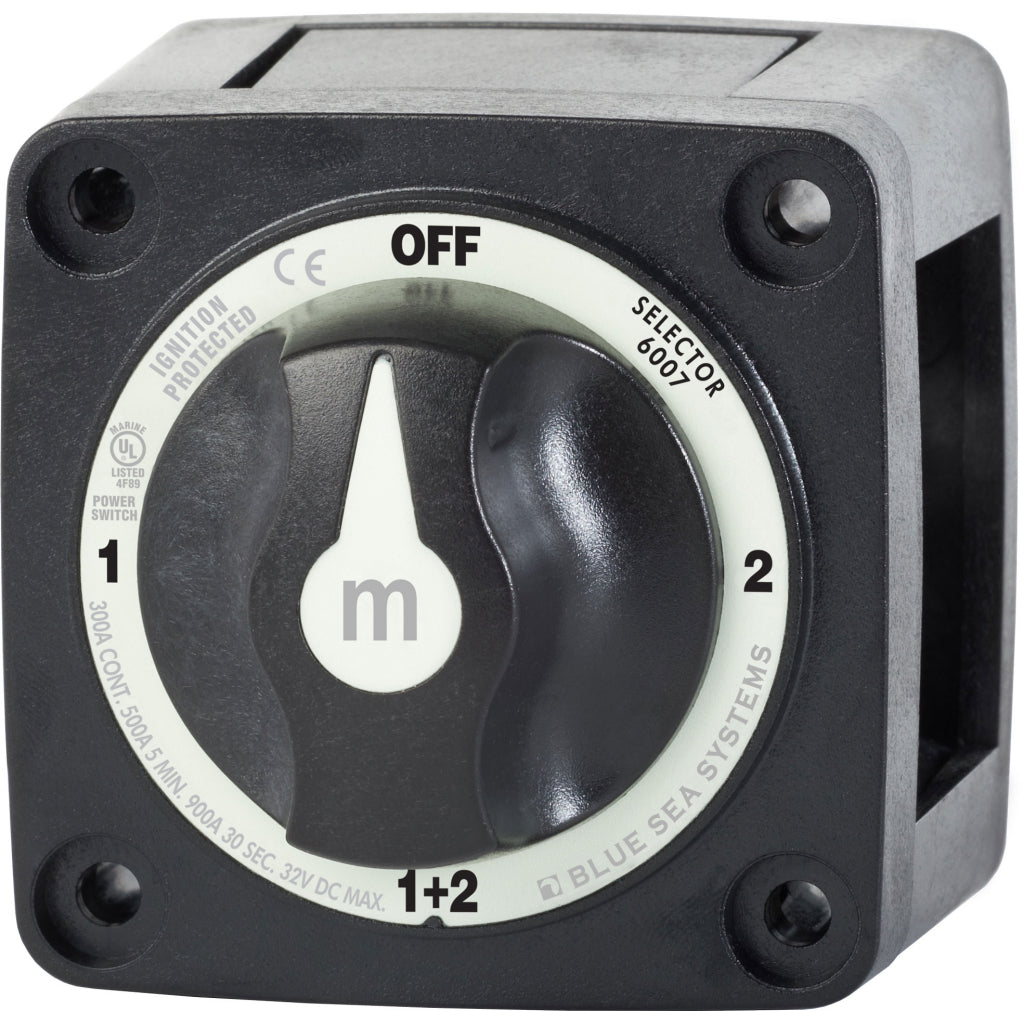

Blue Sea m-Series Mini Selector Battery Switch

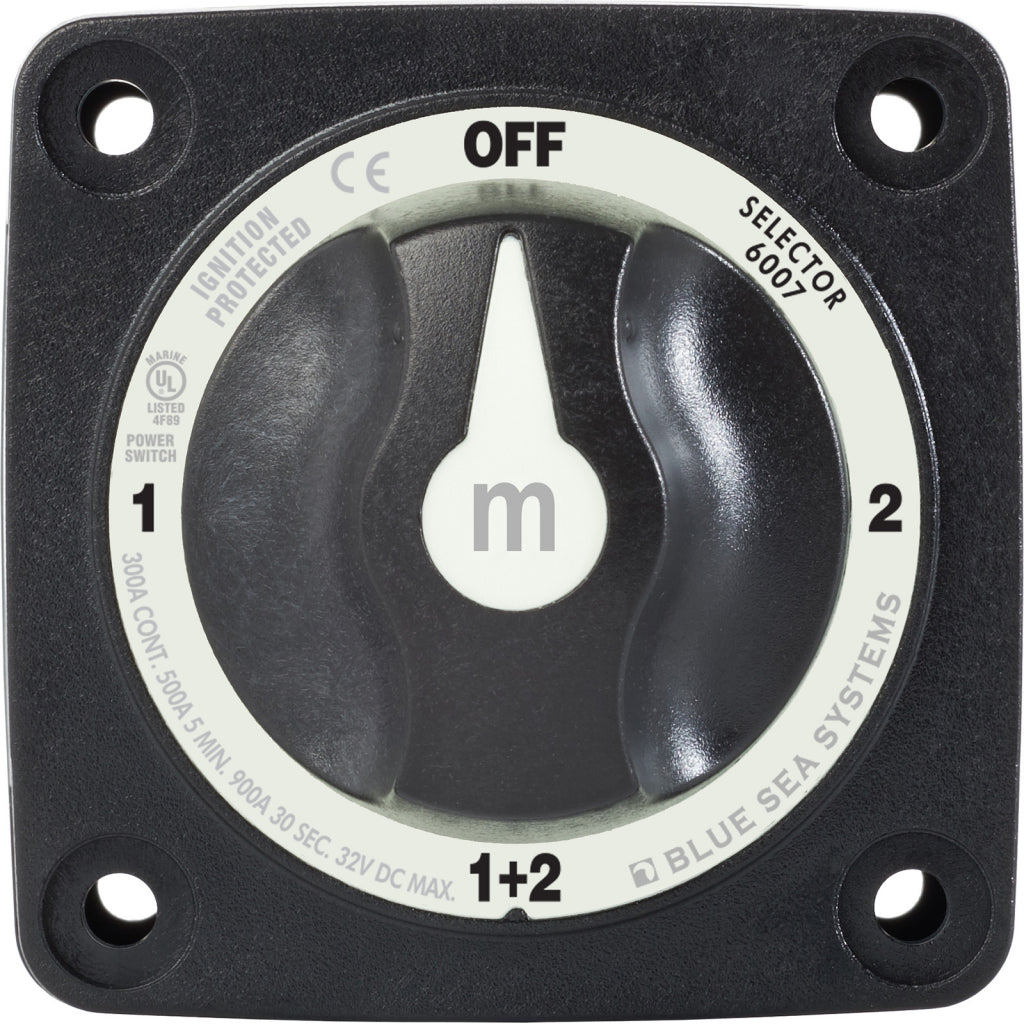

Blue Sea m-Series Mini Selector Battery Switch Front

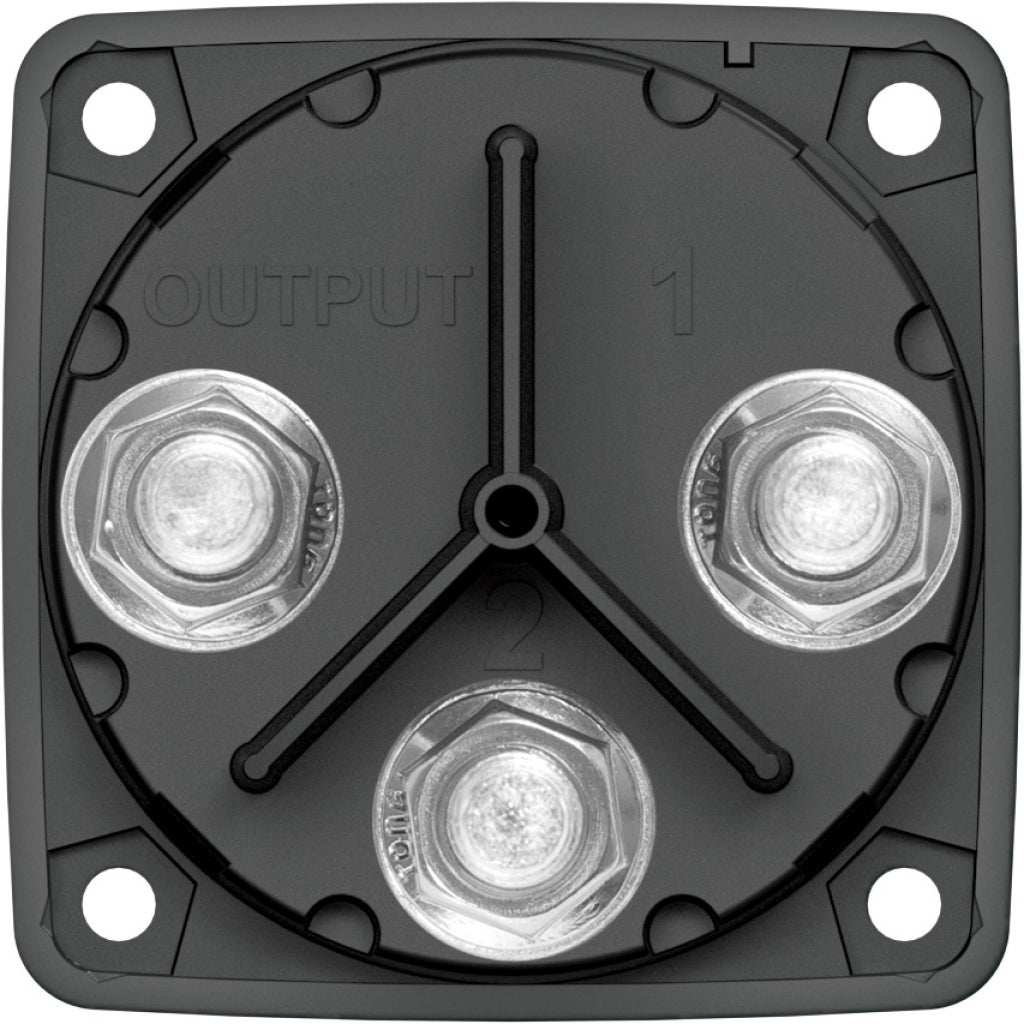

Blue Sea m-Series Mini Selector Battery Switch Reverse

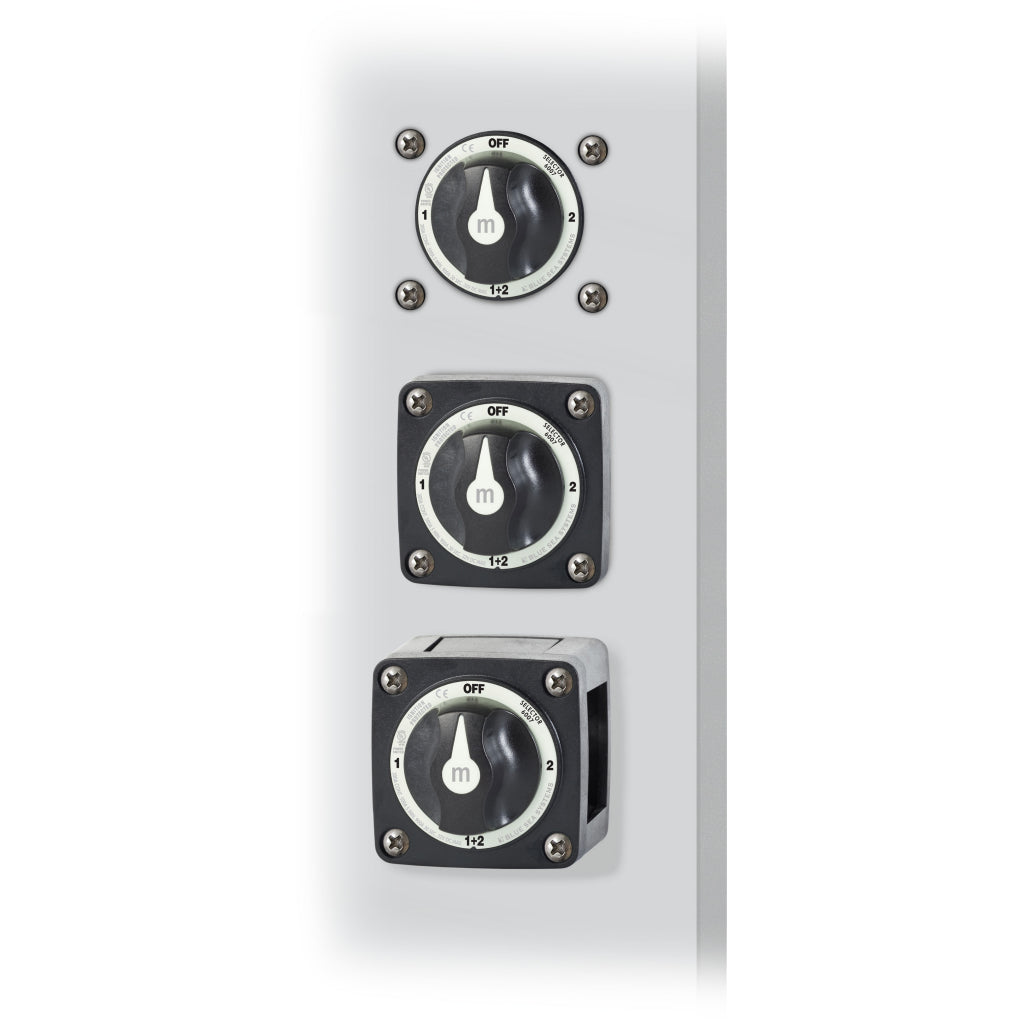

Blue Sea m-Series Mini Selector Battery Switch Mounting Options
Blue Sea m-Series Mini Selector Battery Switch
Blue Sea m-Series Mini Selector Battery Switch Front
Blue Sea m-Series Mini Selector Battery Switch Reverse
Blue Sea m-Series Mini Selector Battery Switch Mounting Options
ELECTRICAL

Blue Sea Mini Selector Battery Switch- Blk

SKU# BS6007200
$6099
Check Delivery Time

Blue Sea Mini Selector Battery Switch- Blk may require an additional to 2 days to ship.

Shipping

Rigging Shoppe ships to Canada only. ALL prices listed on this website in Canadian dollars.

Shipping within 24 hours if possible. Delivery usually 2 - 5 business days in Canada.

Shipping charges will be visible before entering credit card information when ordering.

Learn about our complete shipping policy here.

✕
//riggingshoppe.com/cdn/shop/files/happy-child-on-sailboat_e18ec5af-8b2e-4722-ae68-af51a4129615_500x500.jpg?v=1667832716

Check Delivery Time


Item# 6007200

Switches isolated battery banks to all loads or combines battery banks to all loads.

Features:

  • Make before break contact design allows switching between battery banks without power interruption

Specifications:

  • Switch Type: Selector 4 Position
  • Color:Black
  • Switch Positions:4
  • Battery Combine:Yes
  • Alternator Field Disconnect: No
  • Maximum Voltage:32V DC
  • Stud Size:3/8"
  • Terminal Stud Torque:120 in-lb (13.56 Nm)
  • Continuous Rating: 300A
  • Intermittent Rating:500A (5 min)
  • Cranking Rating: 30 sec 900A
  • Battery Inputs:2
  • Cable Clearance For 4/0 AWG Cables:1.12in (28.45 mm)
  • Cable Size to Meet Ratings:4/0 AWG (120mm²)
  • Mounting HolesAccept 10 Screw
  • Stud MaterialTinned Copper
  • Stud Torque: 120 in-lb (13.56 Nm)
  • Terminal Stud Size:3/8" - 16 (M10)
  • Weight:0.77lb (0.35 kg)
