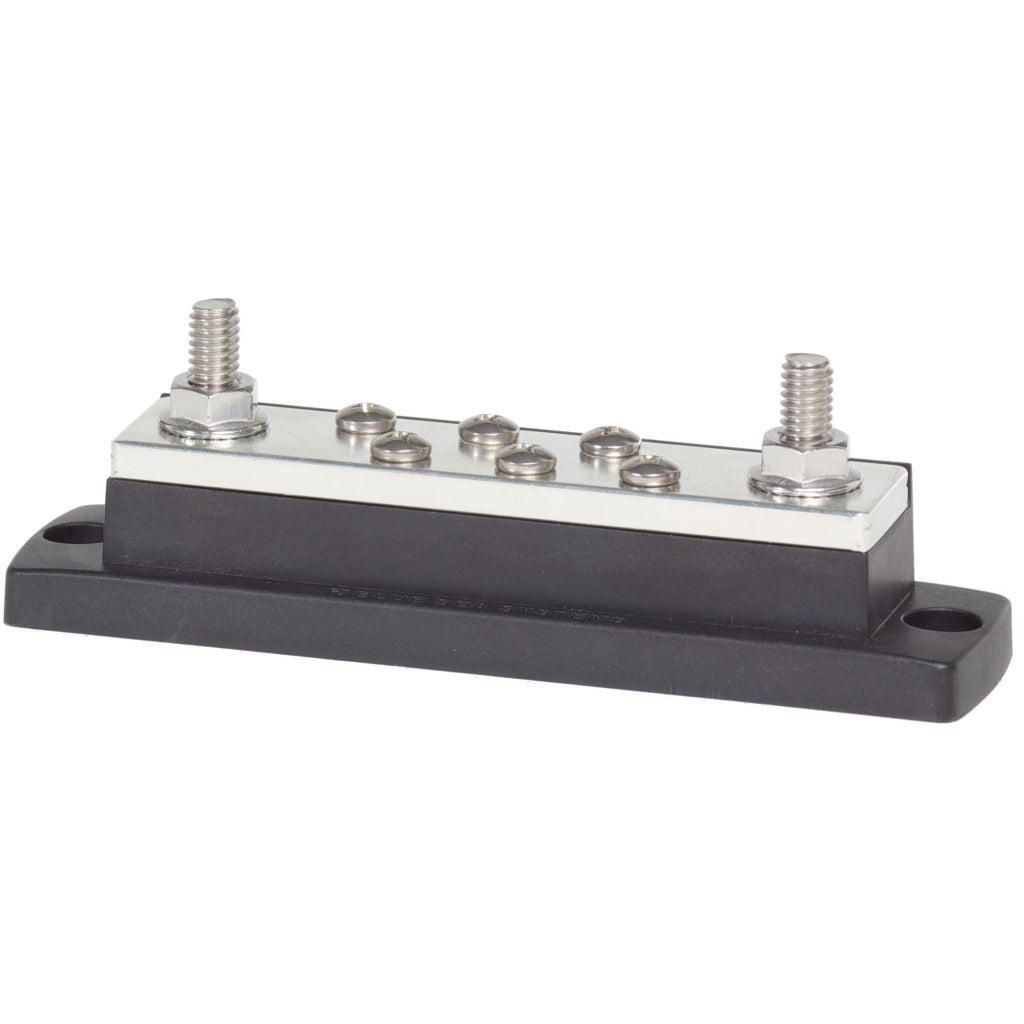

Blue Sea MaxiBus 250A BusBar

Item# 2128

Busbars are used to consolidate multiple wires or feed multiple circuits

• Insert molded stainless steel studs eliminate need for securing nut and allow high torquing for excellent electrical contact
• Raised bus provides easy access to multiple wires on a single stud
• UL 94-V0 rated base material resists high heat
• Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces

Specifications:

• Maximum Voltage:300V AC
• 48V DC
• Number of Screw Terminals:6
• Number of Terminal Studs:2
• Terminal Type:10-24 Screw
• 5/16"-18 Stud
• Continuous Rating: 250A
• Base Material:UL 94-V0 Rated, Glass Reinforced Thermoplastics
• Bus Material:Tin-Plated Copper CDA 110 / UNS 11000
• Recommended Screw Torque:23 in-lb (2.6 N·m)
• Recommended Stud Torque:132 in-lb (14.91 N·m)
• Weight:0.80lb (0.36 kg)
