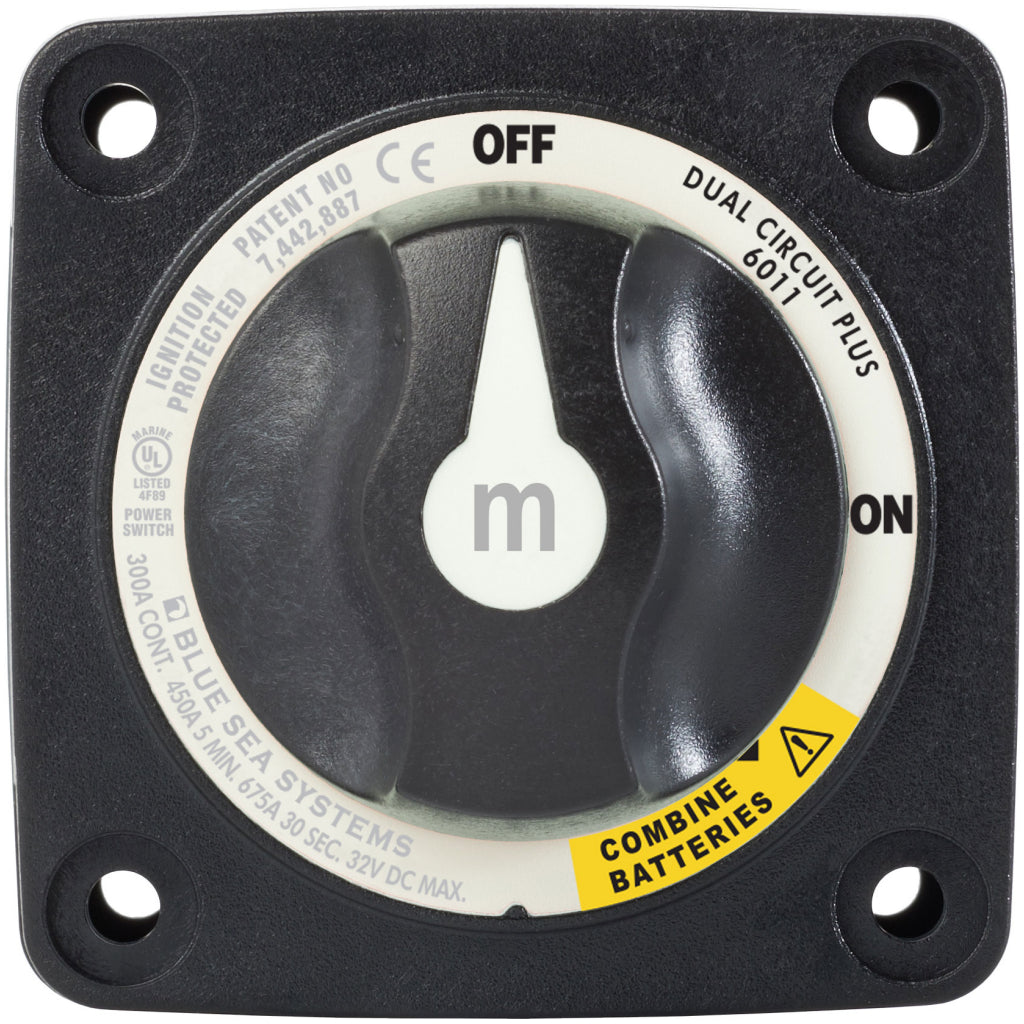

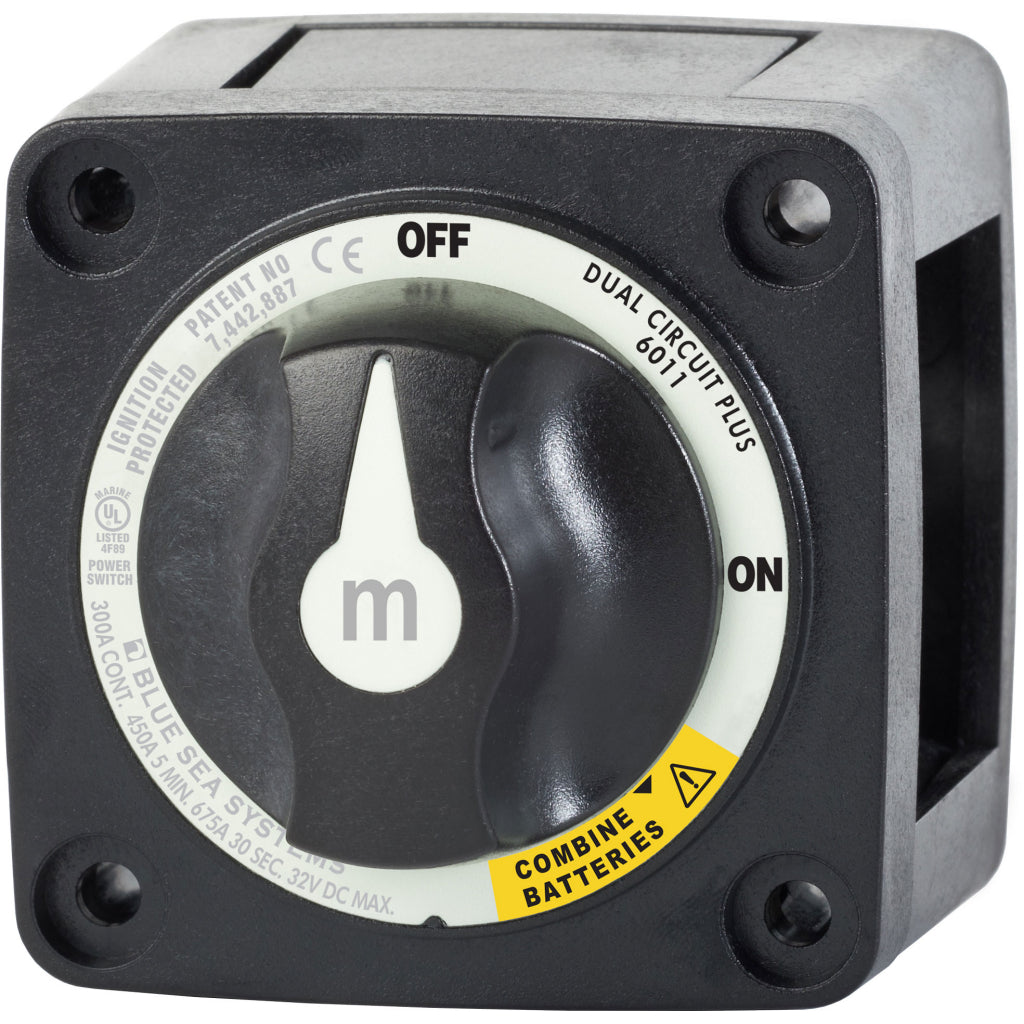

Blue Sea Mini Dual Circuit Plus Battery Switch-Blk

Item# 6011200

Simultaneously switches two isolated battery banks or combines battery banks to all loads.

Features:

• Make before break contact design allows switching between battery banks without power interruption
• SI-ACR automatically combines batteries during charging, isolates batteries when discharging and when starting engines.
• The Dual Circuit Plus Battery Switch simplifies the switching of two batteries to OFF or ON while still providing battery isolation between the engine and auxiliary battery.
• The Combine function can be used to parallel the batteries in the event of a low engine battery.

Specifications:

• Switch Type:Dual Circuit Plus
• Color:Black
• Switch Positions:3
• Battery Combine:Yes
• Alternator Field Disconnect: No
• Maximum Voltage:32V DC
• Stud Size:3/8"
• Terminal Stud Torque:120 in-lb (13.56 Nm)
• Continuous Rating:300A
• Intermittent Rating: 450A (5 min)
• Cranking Rating: 30 sec 675A per circuit
• Battery Inputs:2
• Cable Clearance For 4/0 AWG Cables:1.12in (28.45 mm)
• Cable Size to Meet Ratings:4/0 AWG (120mm²)

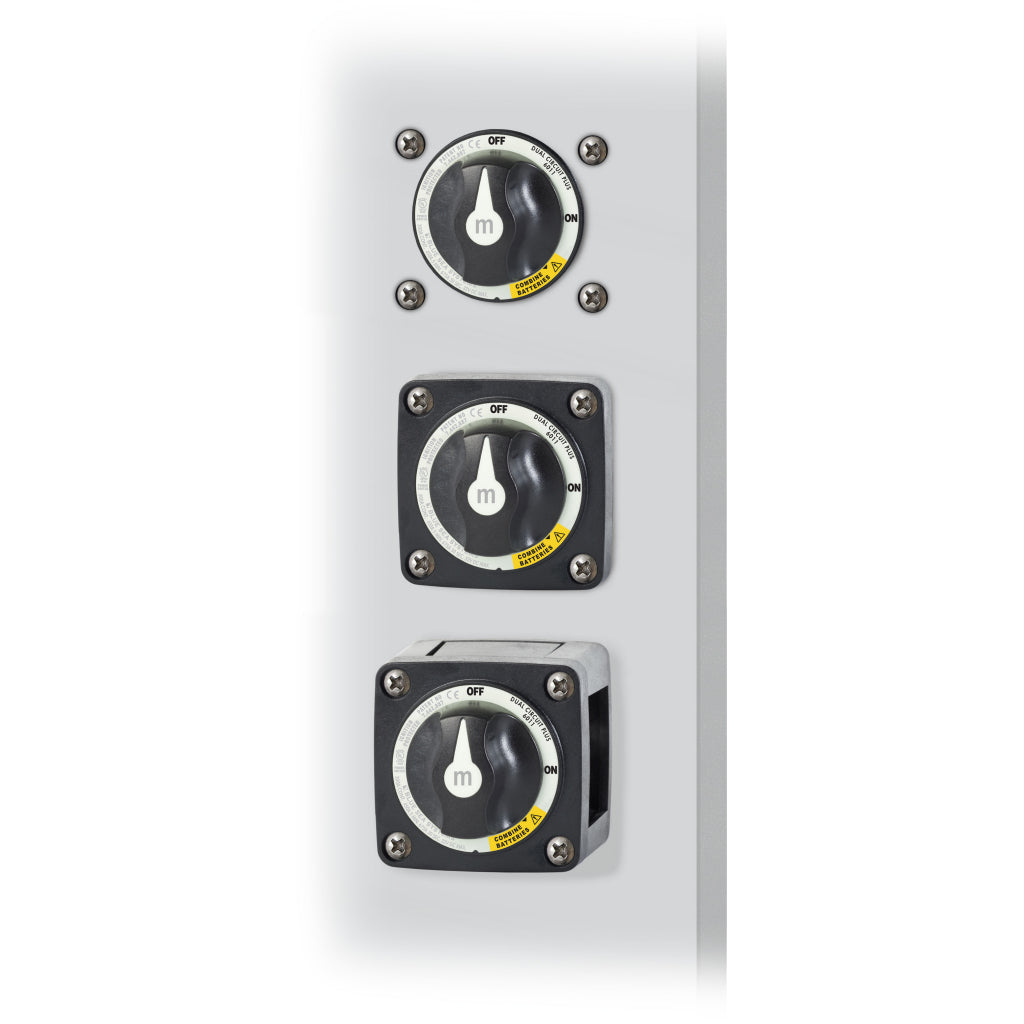

• Mounting Holes:Accept 10 Screw

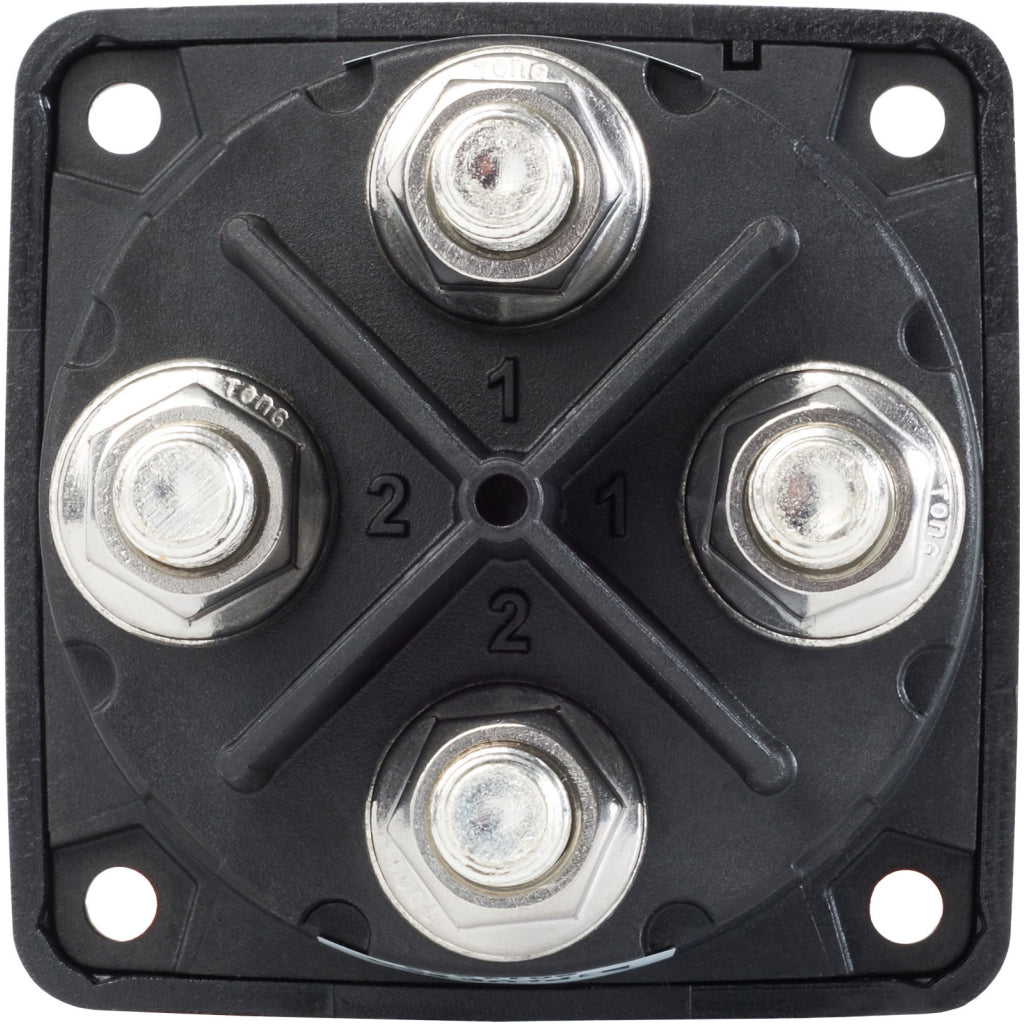

• Stud Material:Tinned Copper
• Stud Torque:120 in-lb (13.56 Nm)
• Terminal Stud Size:3/8" - 16 (M10)
• Weight:0.80lb (0.36 kg)
