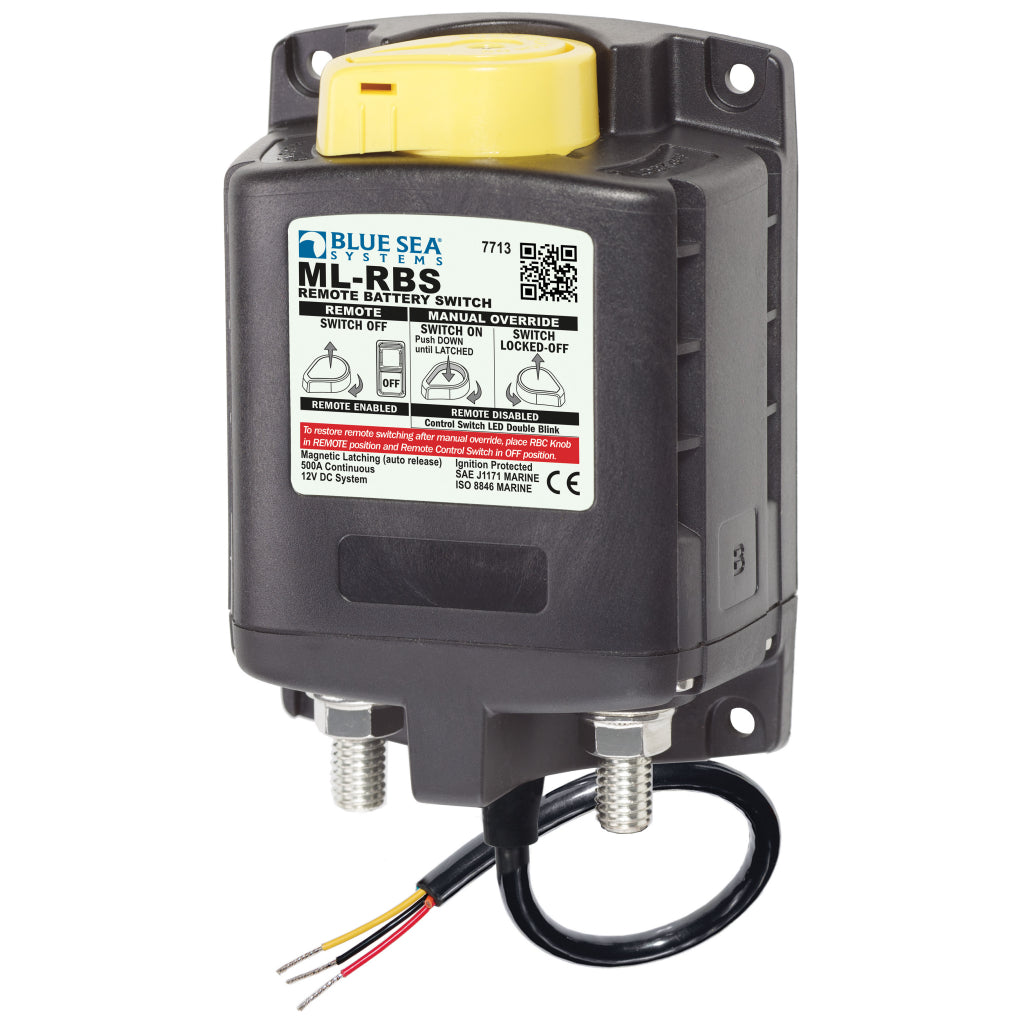

Blue Sea ML-RBS Remote Battery Switch

SKU# BS7713
Check Delivery Time

Blue Sea ML-RBS Remote Battery Switch may require an additional to 2 days to ship.


Rigging Shoppe ships to Canada only. ALL prices listed on this website in Canadian dollars.

Shipping within 24 hours if possible. Delivery usually 2 - 5 business days in Canada.

Shipping charges will be visible before entering credit card information when ordering.

Learn about our complete shipping policy here.

Item# 7713

Auto Releasing ML-Series Remote Battery Switch with SPST Switching Provides 500A switching and features of current ML Remote Battery Switches, but can be controlled with SPST or SPDT switch for applications where a normally open relay is desired.

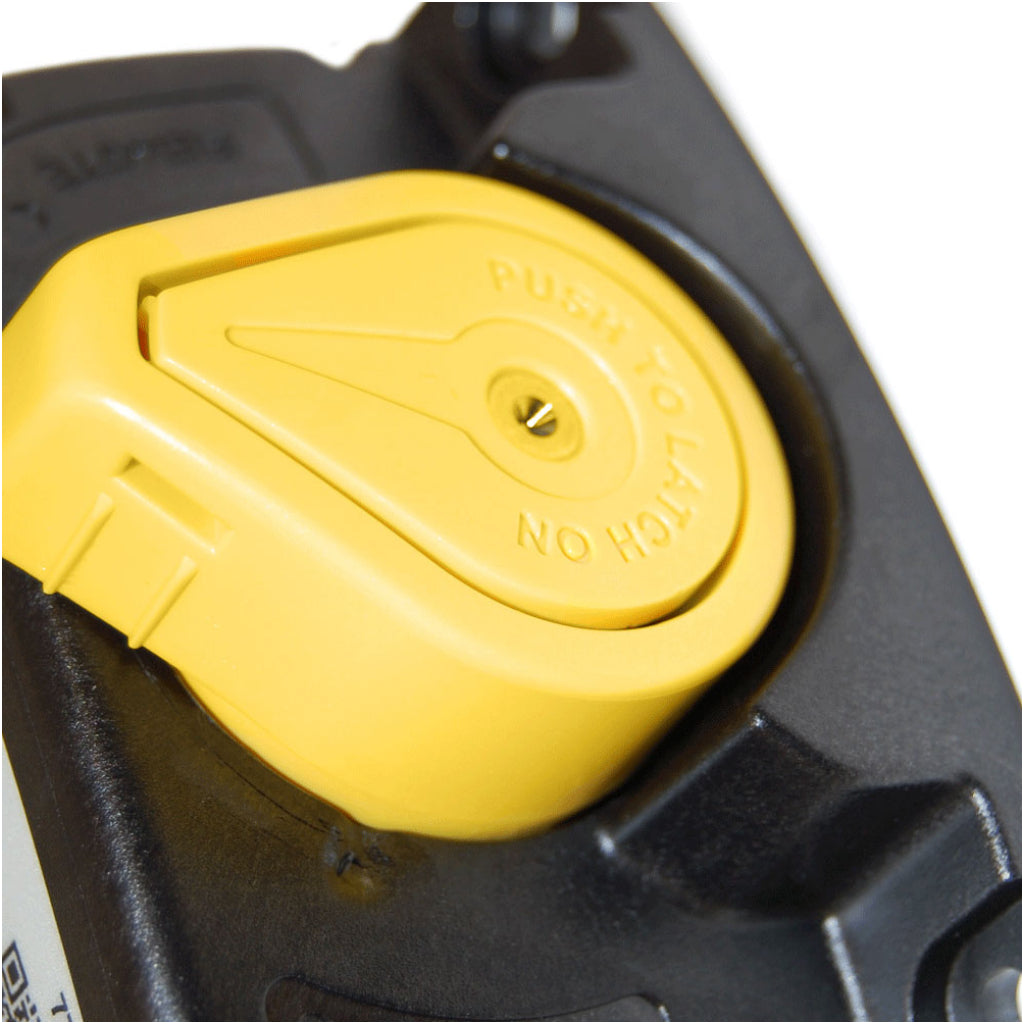

  • Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
  • LED output to remotely indicate switch state - requires optional LED
  • 3 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
  • 7 8" (22 mm) stud length accepts multiple cable terminals
  • Label recesses for circuit identification
  • Silver alloy contacts provide high reliability for switching live loads


  • Control Circuit Connection: Tinned Wire
  • Nominal Voltage:12V DC
  • Coil Function: Auto-Releasing
  • Mounting10
  • Amperage Operating Current:8mA when OFF
  • 13mA when ON
  • Amperage Operating Current when changing state:<7A (40 ms)
  • Terminal Stud Torque:140 in-lb (15.82 Nm)
  • Control Circuit Voltage:10.1 to 16.5V DC
  • Continuous Rating:500A
  • Intermittent Rating: 700A (5 min)
  • Cranking Rating 30 sec: 1450A DC
  • Minimum Operating Temperature:-10° C
  • Maximum Operating Temperature:60° C
  • Cable Size to Meet Ratings:2x (4/0)
  • Live Current Switching:300A 12V DC
  • Master Control Switch Capability:yYes
  • Mechanical Endurance:100,000 Cycles
  • Terminal Ring Diameter Clearance:1.18in (29.97 mm)
  • Terminal Stud Length:0.875in (22.23 mm)
  • Terminal Stud Size:3/8" - 16 (M10)
  • Weight:2.07lb (0.94 kg)
