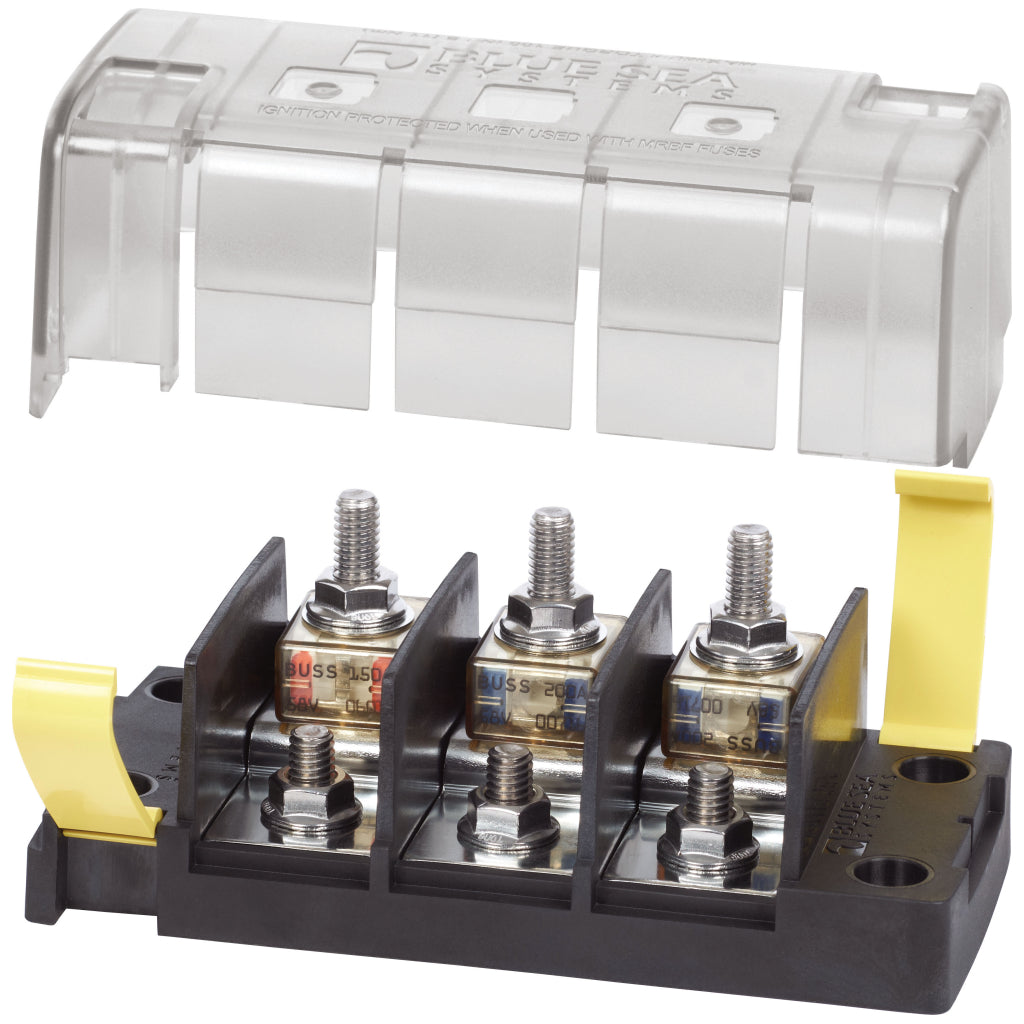

Blue Sea MRBF Surface Mount Fuse Block

SKU# BS5194
$7735 $9099
Shipping

Rigging Shoppe ships to Canada only. ALL prices listed on this website in Canadian dollars.

Shipping within 24 hours if possible. Delivery usually 2 - 5 business days in Canada.

Shipping charges will be visible before entering credit card information when ordering.

Learn about our complete shipping policy here.

Item# 5194

Features:

  • Accommodates three MRBF fuses for consolidated high amperage circuit protection
  • Ideal for 3 output battery chargers
  • Clip-on insulating cover satisfies ABYC/USCG insulation requirements
  • Versatile wiring options allow all wires to come out a single side
  • Label recesses accommodate Blue Sea Systems Square Format labels for easy circuit identification
  • One-piece stainless flange nuts ensure safe and secure connections
  • Fuses sold separately

Specifications:

  • Ignition Protected: Yes
  • Maximum Amperage: 240A per circuit
  • Maximum Voltage:58V DC
  • Mounting:Surface Mount M5 (10)
  • Maximum Torque:100 in-lb (11.3 Nm)
  • Terminal Stud Size:M8 (5/16"-18)
  • Weight:1.20lb (0.54 kg)
