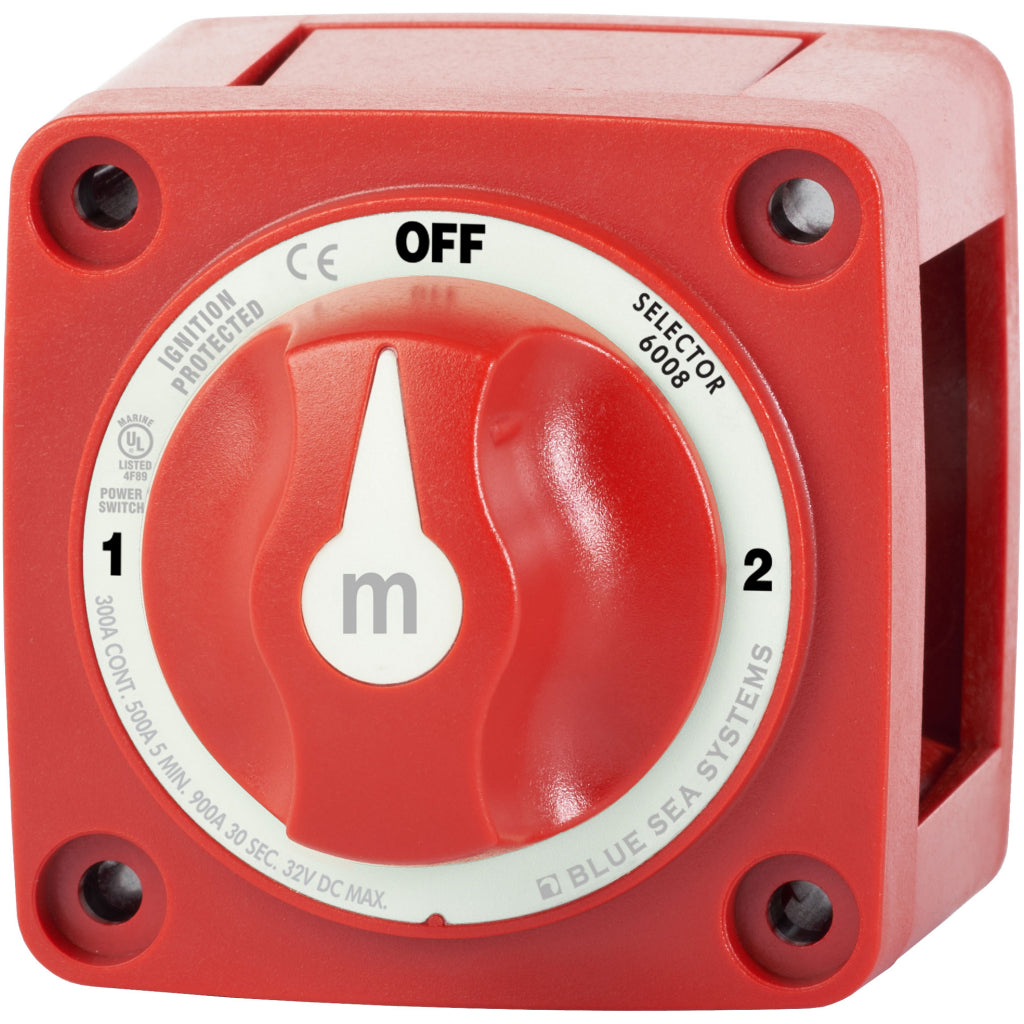

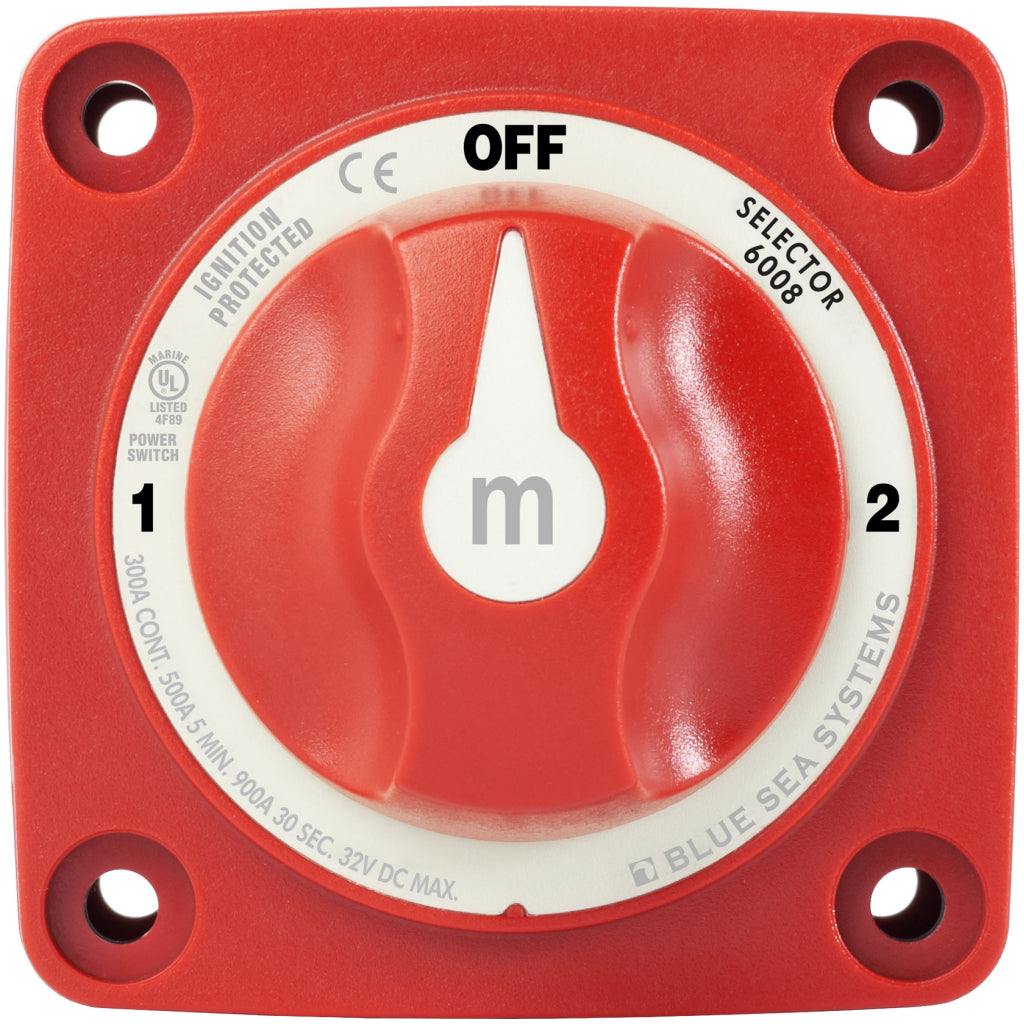

Item# 6008
Switches a single battery to a single load group.
- Ignition protected—safe for installation aboard gasoline powered boats

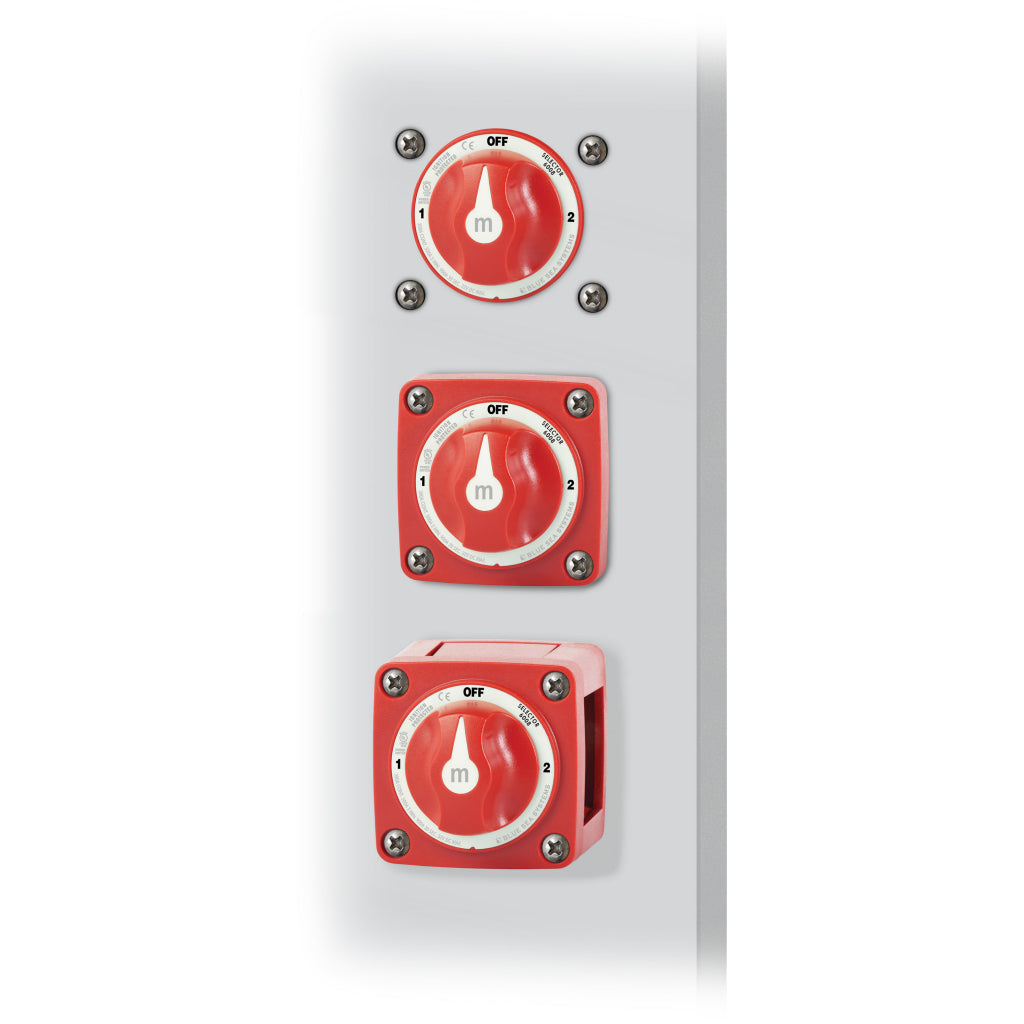

- Case design allows surface or rear panel mounting
Specifications:
- Switch Type: Selector 3 Position
- Color:Red
- Switch Positions:3
- Battery Combine:No
- Alternator Field Disconnect: No
- Maximum Voltage:32V DC
- Stud Size:3/8"
- Terminal Stud Torque:120 in-lb (13.56 Nm)
- Continuous Rating:300A
- Intermittent Rating: 500A (5 Min)
- Cranking Rating: 30 sec 900A
- Battery Inputs:2
- Cable Clearance For 4/0 AWG Cables:1.12in (28.45 mm)
- Cable Size to Meet Ratings4/0 AWG: (120mm²)
- 4/0 AWG (130mm²)
- Mounting Holes:Accept 10 Screw
- Stud Material:Tinned Copper
- Stud Torque:120 in-lb (13.56 Nm)
- Terminal Stud Size:3/8" - 16 (M10)
