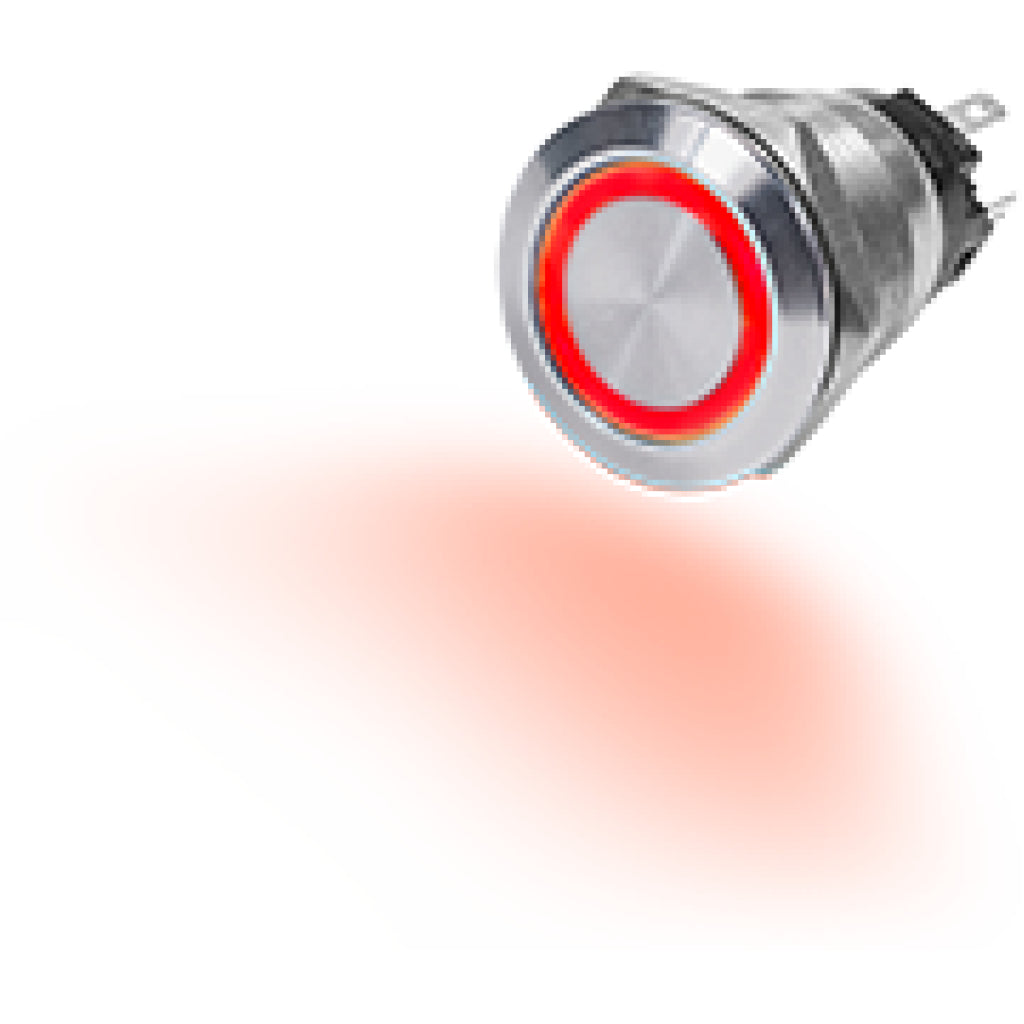

Item# 4162

Features:

• 10A continuous
• Single Pole Double Throw or Single Pole Single Throw
• Can be wired for normally open or normally closed
• Available in Blue & Red
• Available in momentary and non-momentary
• Installs with .110inch quick connects

Specifications:

• Action: OFF-ON
• Amperage:10A 12V DC Resistive
• 3A 12V Inductive
• Nominal Voltage:12V DC
• Maximum LED Operating Current:20mA
• Minimum Operating Temperature:-10° C
• Maximum Operating Temperature: 70° C
• Minimum Storage Temperature:-55° C
• Maximum Storage Temperature:85° C
• Illumination:Independent – Separate contacts for LED power
• Max Panel Thickness:0.31in (7.87 mm)
• Mounting Hole:¾” (19mm)
• Switching Cycles:40,000
• Termination:5 – 0.110inch Quick Connect terminals
• Weight:0.20lb (0.09 kg)
