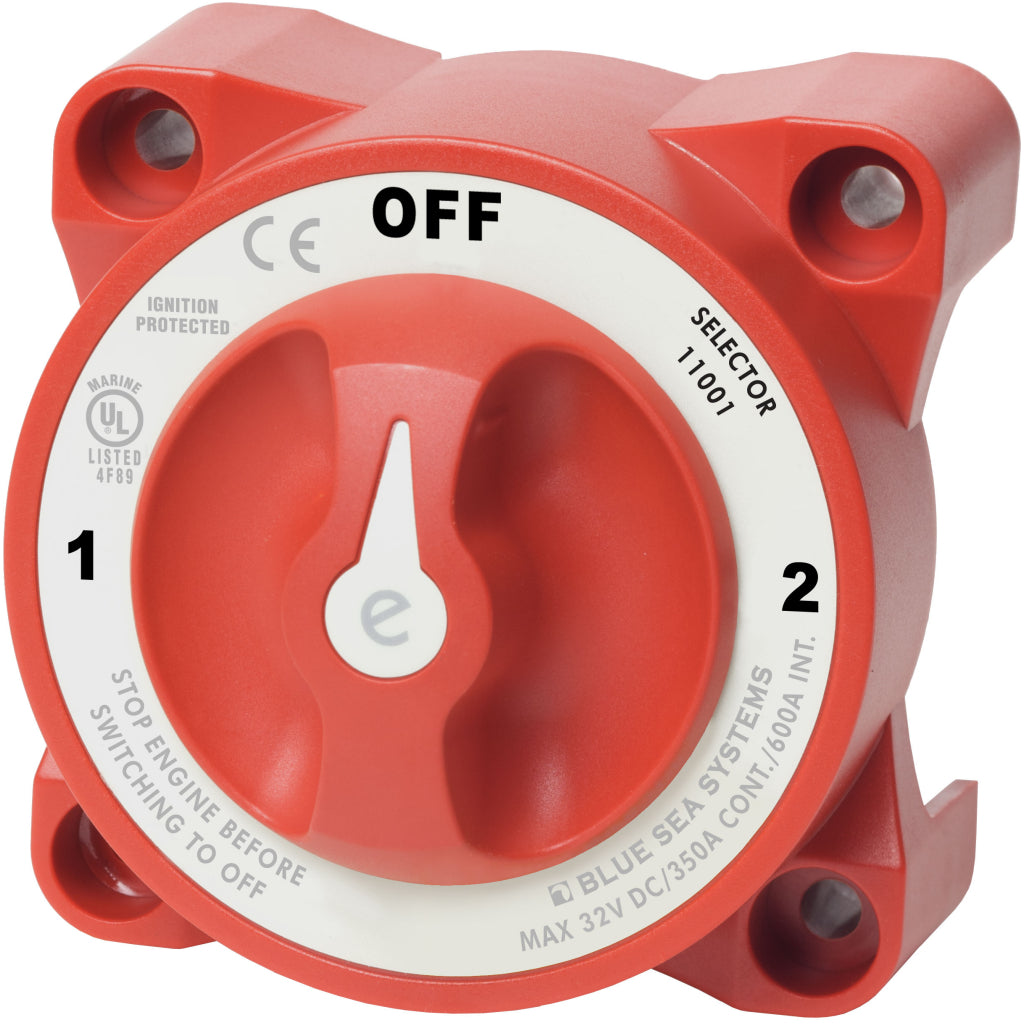

Blue Sea Selector 3-Pos. Battery Switch

SKU# BS11001
$7999
Check Delivery Time

Blue Sea Selector 3-Pos. Battery Switch may require an additional to 2 days to ship.

Shipping

Rigging Shoppe ships to Canada only. ALL prices listed on this website in Canadian dollars.

Shipping within 24 hours if possible. Delivery usually 2 - 5 business days in Canada.

Shipping charges will be visible before entering credit card information when ordering.

Learn about our complete shipping policy here.

✕
//riggingshoppe.com/cdn/shop/files/happy-child-on-sailboat_e18ec5af-8b2e-4722-ae68-af51a4129615_500x500.jpg?v=1667832716

Check Delivery Time


Item# 11001

Switches a single battery to a single load group.

Features:

  • Includes AFD (Alternator Field Disconnect)
  • Ignition protected—safe for installation aboard gasoline powered boats

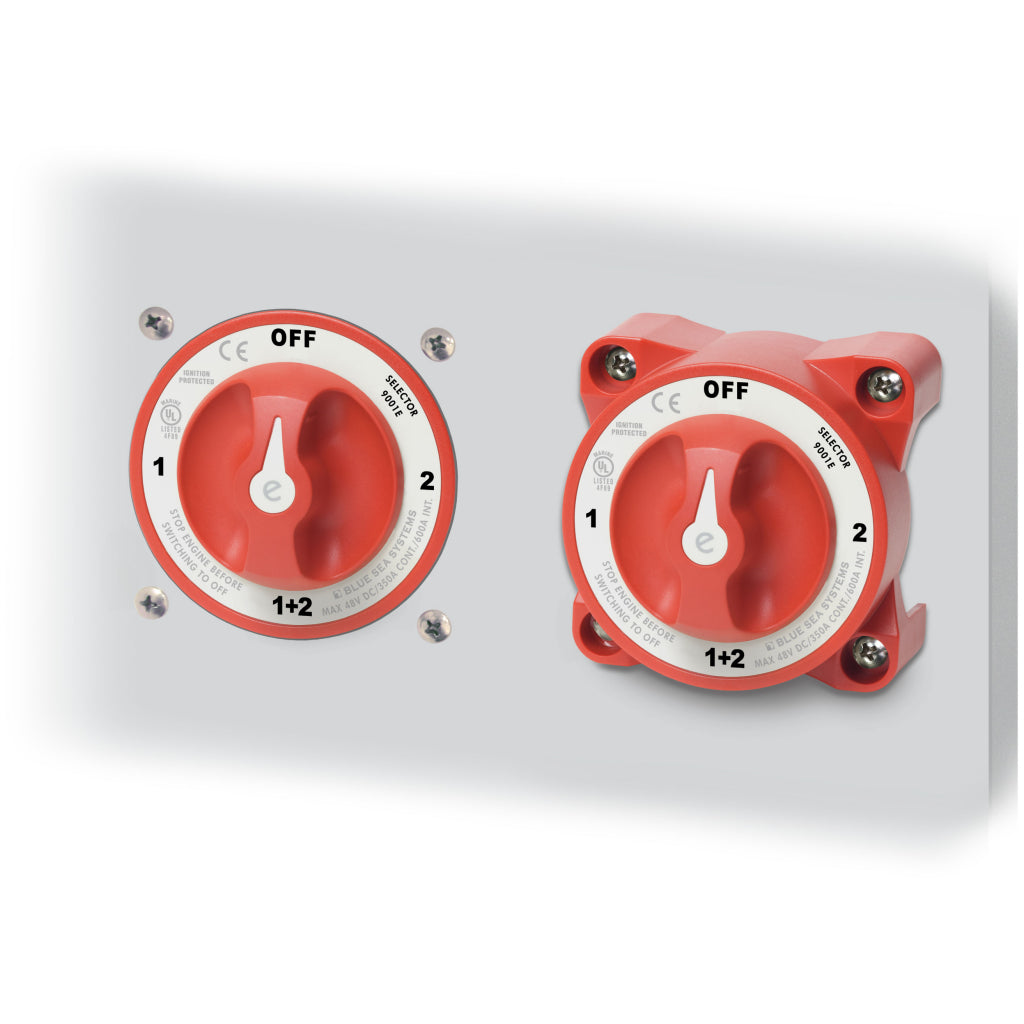

  • Case design allows surface or rear panel mounting

Specifications:

  • Switch Type: Selector 3 Position
  • Color:Red
  • Switch Positions:3
  • Battery Combine:No
  • Alternator Field Disconnect: Yes
  • Maximum Voltage:32V DC
  • Terminal Stud Torque:140 in-lb (15.82 Nm)
  • Continuous Rating: 350A
  • Intermittent Rating: 600A (5 min)
  • Cranking Rating: 30 sec 1200A
  • Battery Inputs:2
  • Cable Clearance For 4/0 AWG Cables:1.10in (27.94 mm)
  • Cable Size to Meet Ratings:4/0 AWG (120mm²)
  • Mounting Holes:Accept 1/4" (M6) Screw
  • Stud Material:Tinned Copper
  • Terminal Stud Size:3/8" - 16 (M10)
  • Weight:1.30lb (0.59 kg)
