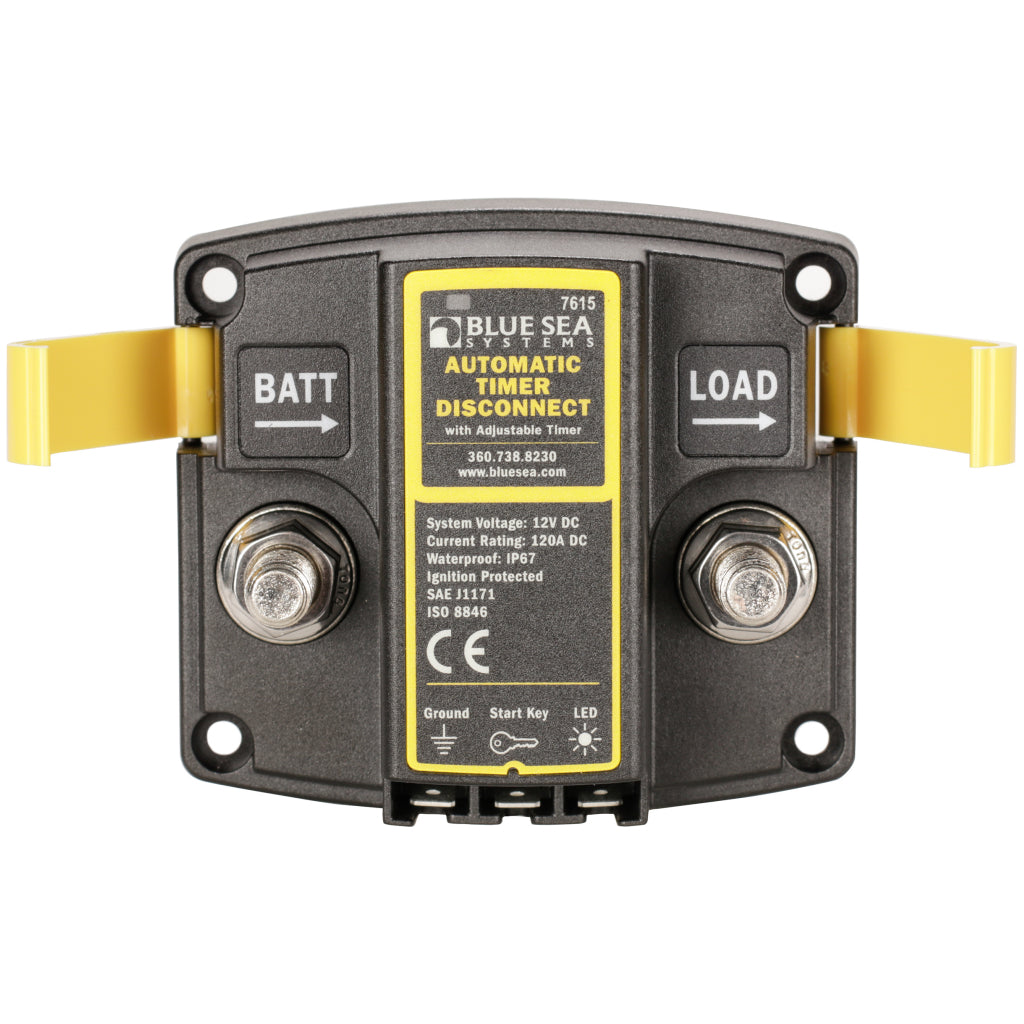

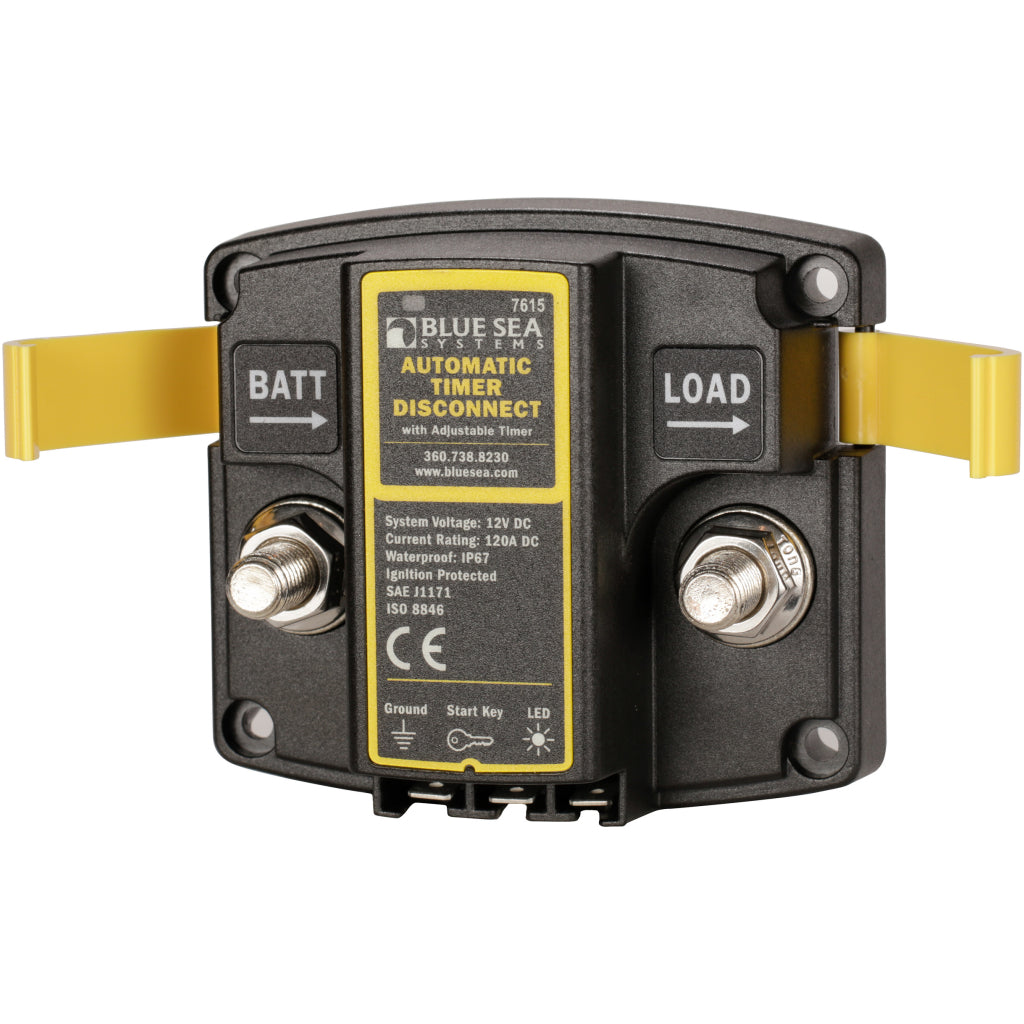

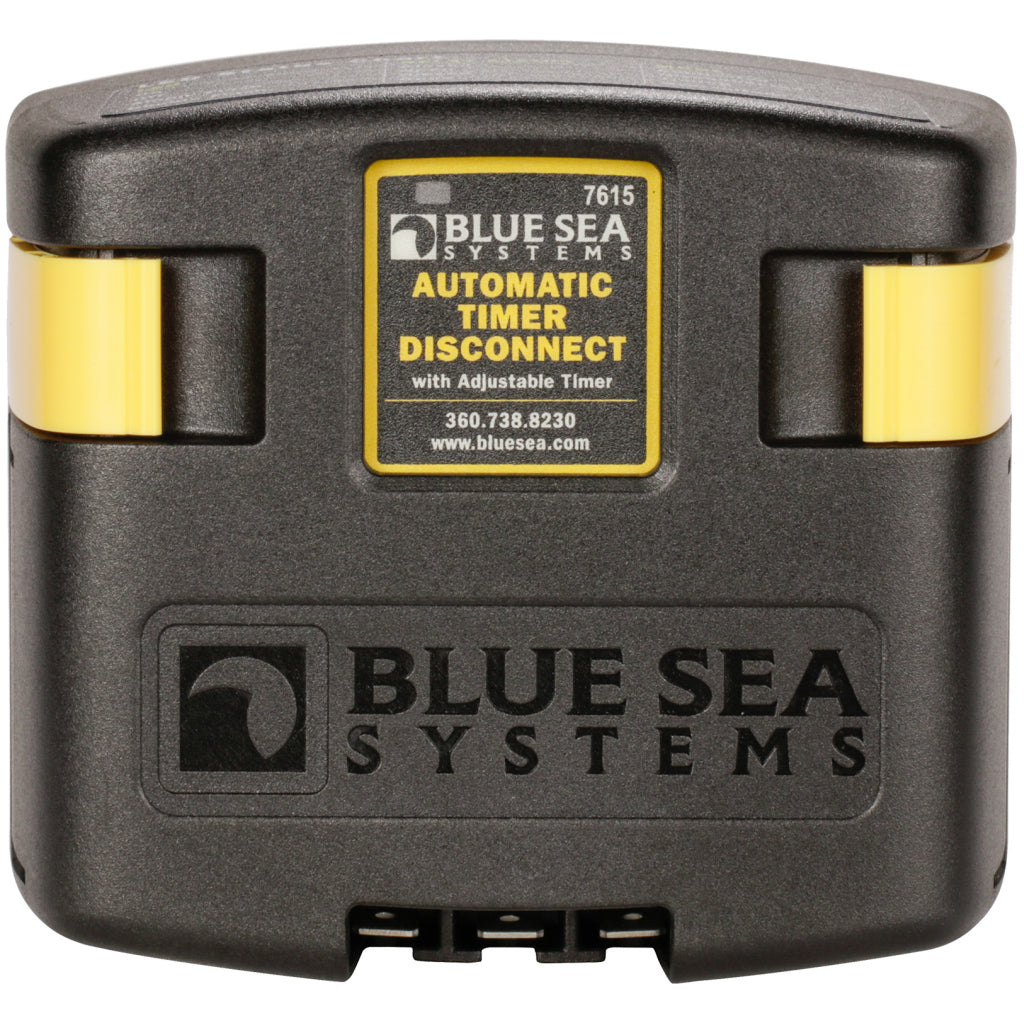

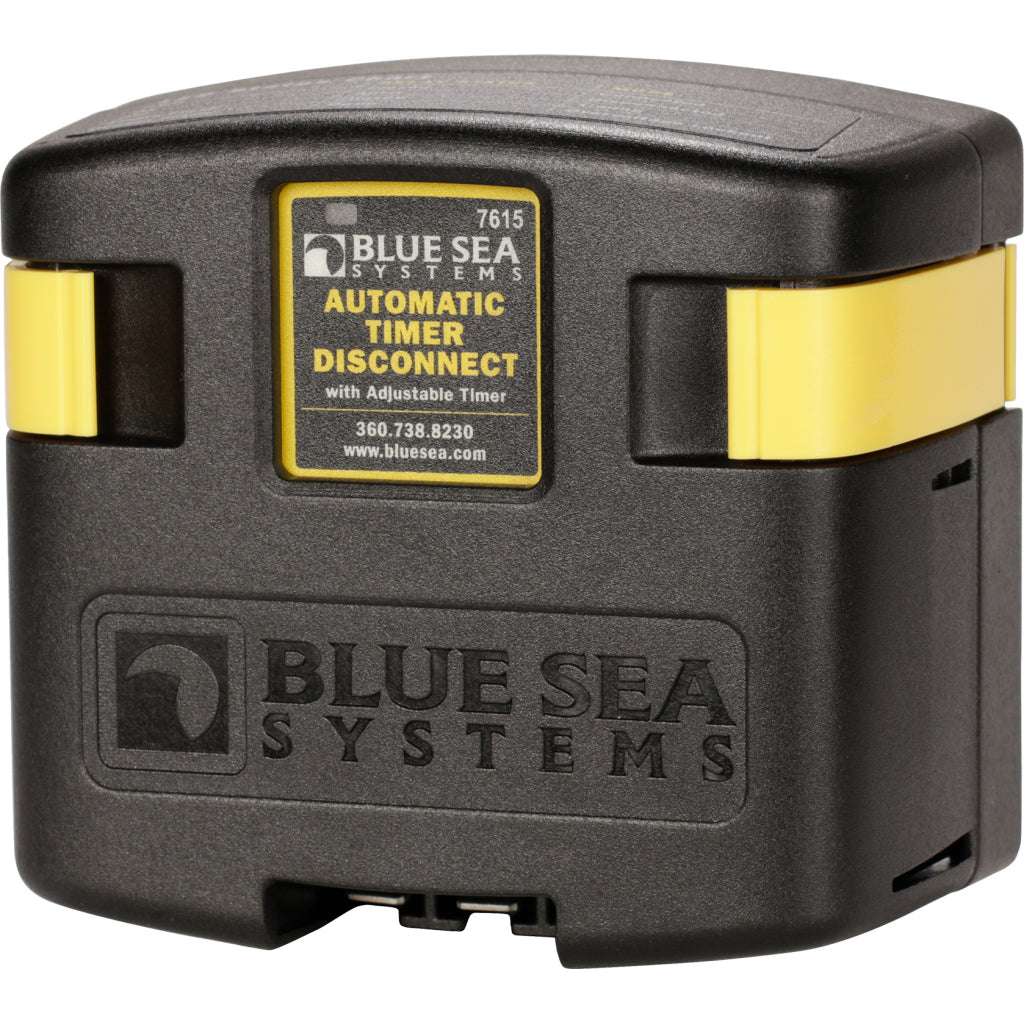

Blue Sea Solenoid Automatic Timer

SKU# BS7615
Check Delivery Time

Blue Sea Solenoid Automatic Timer may require an additional to 2 days to ship.


Rigging Shoppe ships to Canada only. ALL prices listed on this website in Canadian dollars.

Shipping within 24 hours if possible. Delivery usually 2 - 5 business days in Canada.

Shipping charges will be visible before entering credit card information when ordering.

Learn about our complete shipping policy here.

Item# 7615

Can be configured to be used as one of the following battery saving products.


Timer Disconnect
  • 12V signal triggers relay to connect battery power to devices
  • When signal is removed the timer is activated and will disconnect devices after a preset time
  • Timer ranges from 15 minutes to 4 hours
Low Voltage Disconnect
  • 12V signal triggers relay to connect battery power to devices.
  • After 12V signal is removed, device senses low battery voltage and automatically disconnects devices.
  • Low voltage setting can be used in conjunction with Timer Disconnect. Low voltage will disconnect devices prior to preset time to preserve battery power
Automatic Charging Relay
  • Automatically combines two batteries when charging, and isolates them when discharging
  • Single side sensing design only monitors the voltage of the start battery
  • Ideal for auxiliary batteries that are AGM or significantly larger than the start battery
  • 12V signal will connect or disconnect relay without any time delay


  • Nominal Voltage:12V DC
  • Amperage Operating Current:175mA (closed)
  • 4mA (open)
  • Terminal Stud Torque:140 in-lb (15.82 Nm)
  • Continuous Rating: 120A
  • Intermittent Rating: 210A (5 Min)
  • Cable Size to Meet Ratings:1 AWG (50mm²)
  • Charge Sense Connect:13.0V (3 sec)
  • Charge Sense Disconnect:12.75V (10 sec)
  • Disconnect Time:5 sec, 15 min, 30 min, 1 hr, 1.5 hr, 2hr, or 4hr
  • Input Voltage Range:9.5-16V
  • Low Voltage Disconnect:11.0V (10 sec)
  • 11.5V (10 sec)
  • 12.0V (10 sec)
  • Maximum Cable Size:1/0 AWG (50mm²)
  • Stud MaterialTinned Copper:
  • Terminal Ring Diameter Clearance:1.12in (28.45 mm)
  • Terminal Stud Size:3/8"-16 (M10)
  • Over Voltage Lockout:16.0V (5 sec)
  • Weight:1.25lb (0.57 kg)
