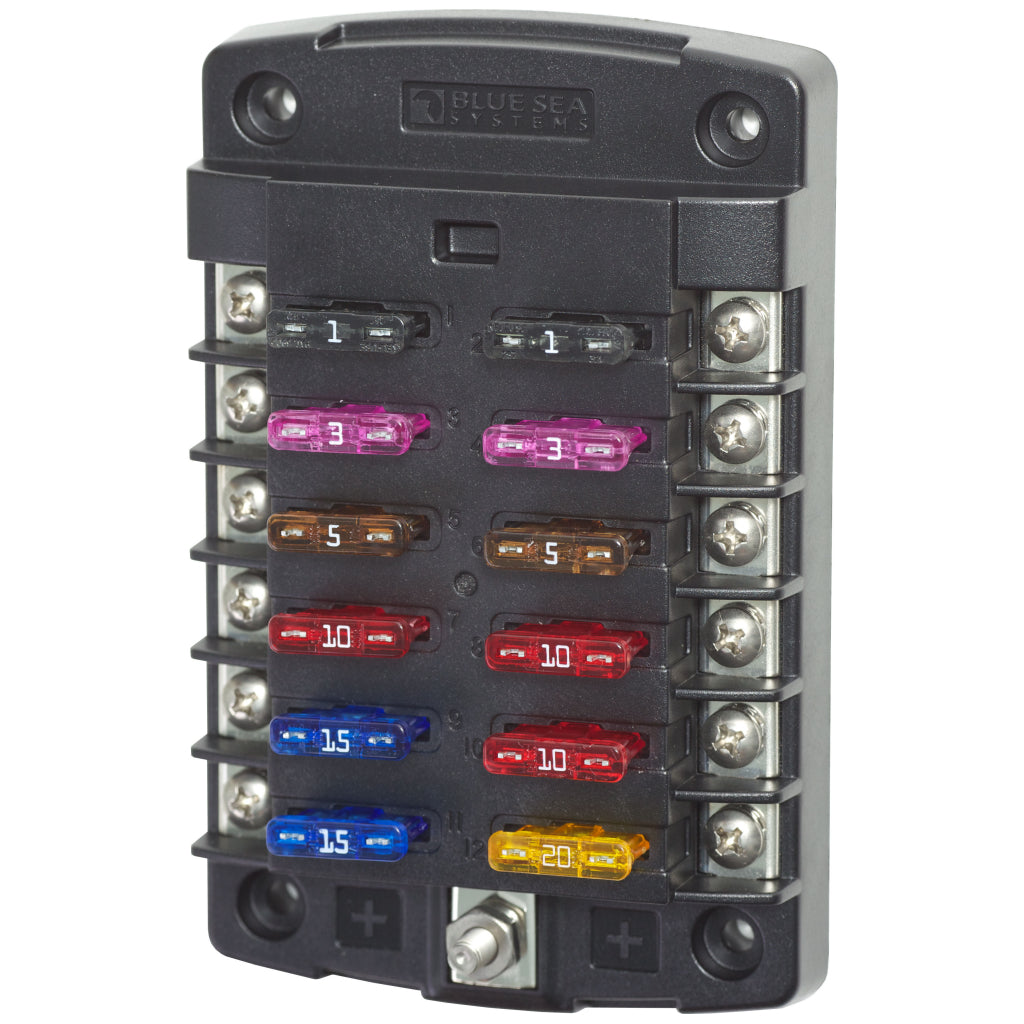

Item# 5034
Consolidates branch circuits and in-line fuses.
Features:
- Positive distribution bus with 10-32 stud
- Can be used for 24-hour circuits
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Accepts ATO® and ATC® fast acting blade fuses
- Fuses sold separately
Specifications:
- Circuits:12
- Maximum Amperage: 100A per block
- 30A per circuit
- Maximum Voltage:32V DC
- Mounting:8 Screw (M4)
- Positive Bus:10-32 Stud
- Recommended Torque:24 in-lb (2.71 N·m)
- Screw Terminal Torque:18 in-lb (2.03 Nm)
- Screw Terminal Type:8-32 Screws with captive star lock washer
- Weight:0.60lb (0.27 kg)
