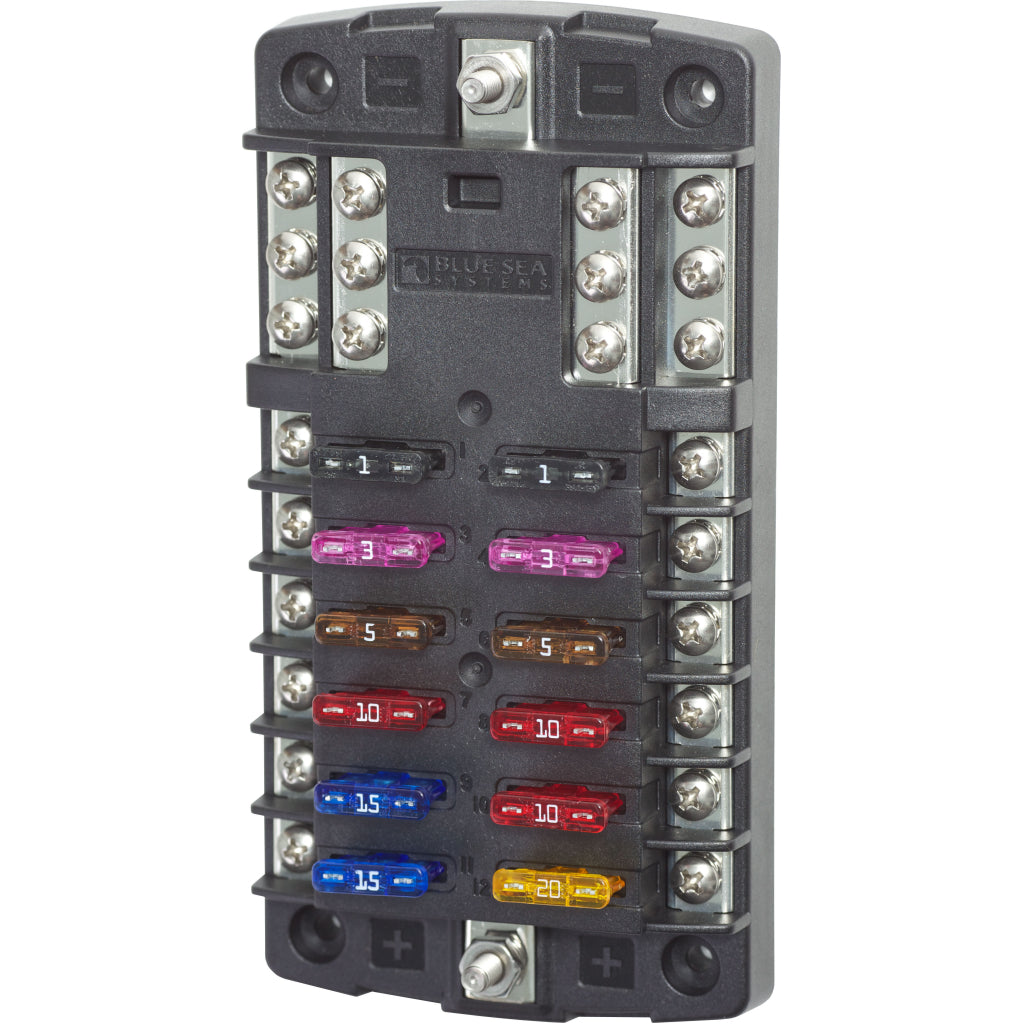

Blue Sea ST Blade Fuse Block

Item# 5031

Consolidates branch circuits and in-line fuses.

Features:

• Positive distribution bus with 10-32 stud
• Can be used for 24-hour circuits
• Models available with or without a cover
• Tin-plated copper buses and fuse clips
• Accepts ring or snap fork type terminals
• Accepts ATO® and ATC® fast acting blade fuses
• Fuses sold separately

Specifications:

• Circuits:12
• Maximum Amperage: 100A per block
• 30A per circuit
• Maximum Voltage:32V DC
• Mounting:8 Screw (M4)
• Negative Bus:10-32 Stud
• Positive Bus:10-32 Stud
• Recommended Torque:24 in-lb (2.71 N·m)
• Screw Terminal Torque:18 in-lb (2.03 Nm)
• Screw Terminal Type:e8-32 Screws with captive star lock washer
• Weight:0.65lb (0.29 kg)
