Item# 5054

The advantage of a resettable circuit breaker over a fuse is well known however people find circuit breakers more expensive and difficult to install.

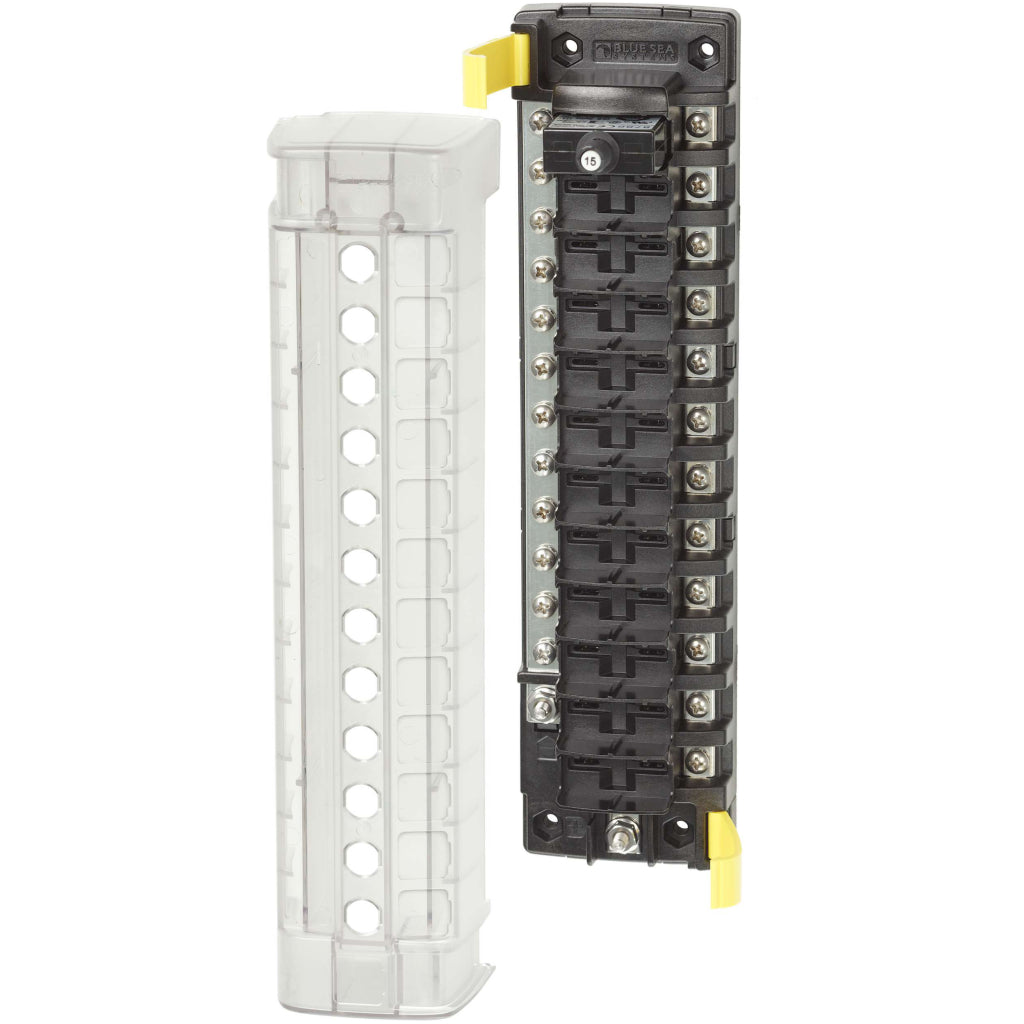

The ST CLB Circuit Breaker Block solves this issue by using the compact, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse.

Features:

• Quick connect clips allow circuit breakers to snap easily into place
• Tin-plated copper busses and screw terminals
• Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements

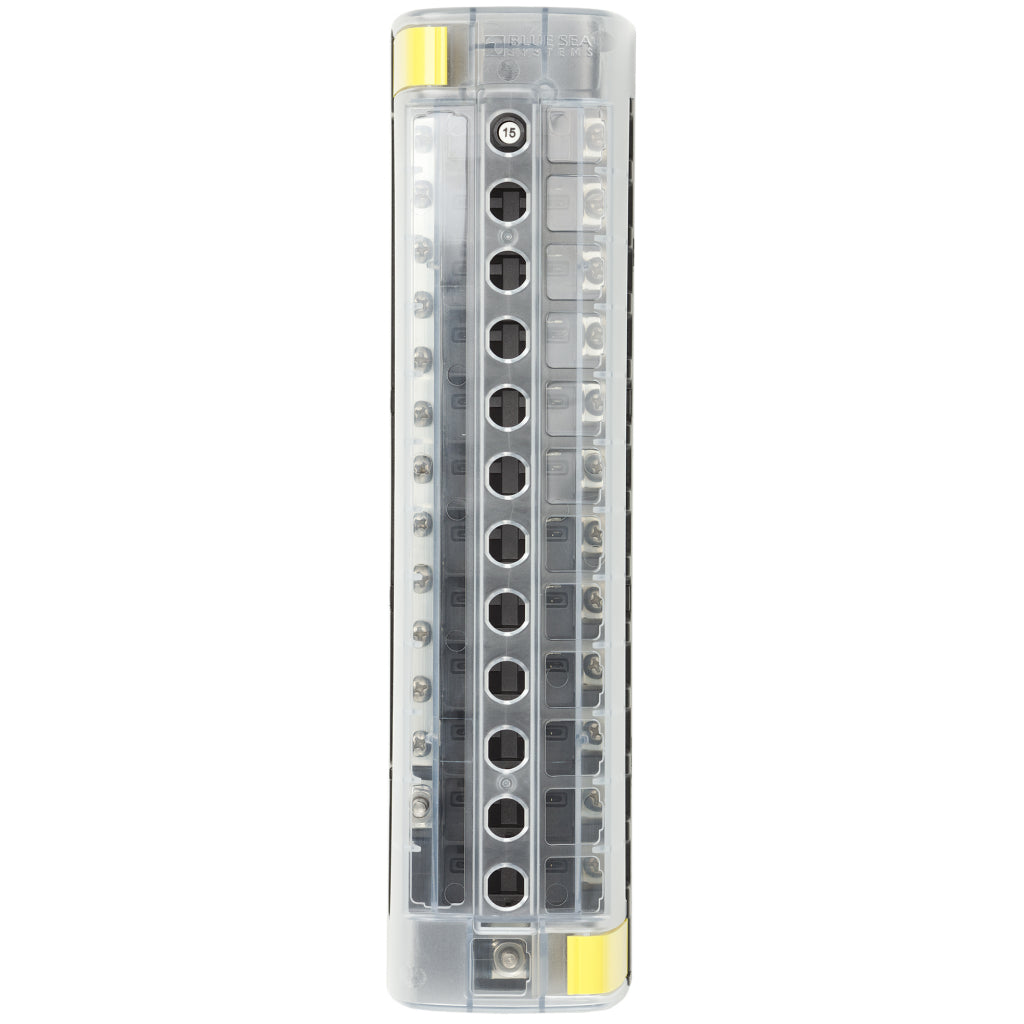

• Easy to open clip on cover
• Breakouts allow wire access in two directions
• Accepts ring terminals

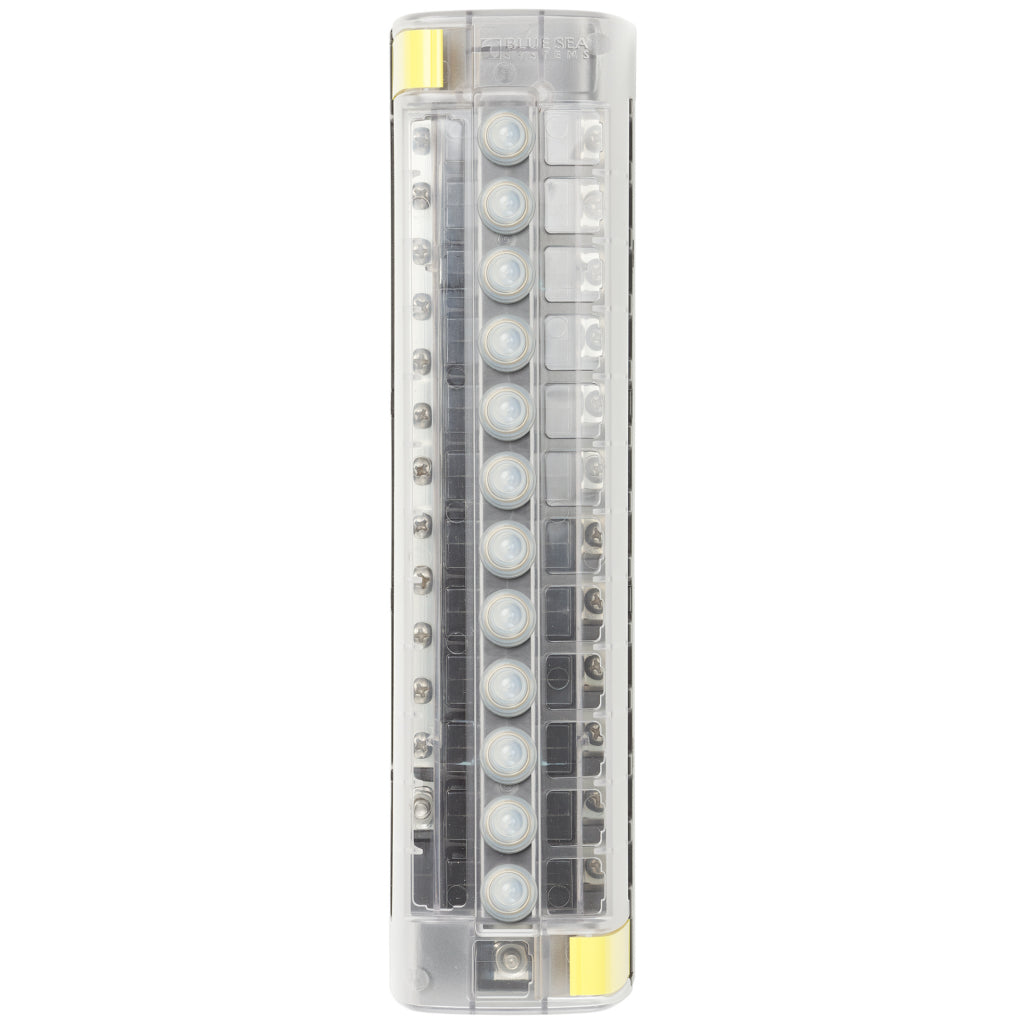

• Optional push button waterproof boots or dress nuts can be installed over cover
• Accepts square labels

Specifications:

• Circuits:12
• Maximum Amperage: 100A (per block)
• 32A (per circuit)
• Maximum Voltage:32V DC
• Mounting:8 Screw (M4) or 8 Nut
• Negative Bus:10-32 Stud
• Positive Bus:10-32 Stud
• Source:Common Source
• Minimum Operating Temperature:-10° C
• Maximum Operating Temperature: 60° C
• Mounting Centers:10.13in (257.3 mm)
• Screw Terminal Type:8-32 Screws with Captive Star Lock Washer
• Height:11.19in (284.23 mm)
• Weight:1.50lb (0.68 kg)
