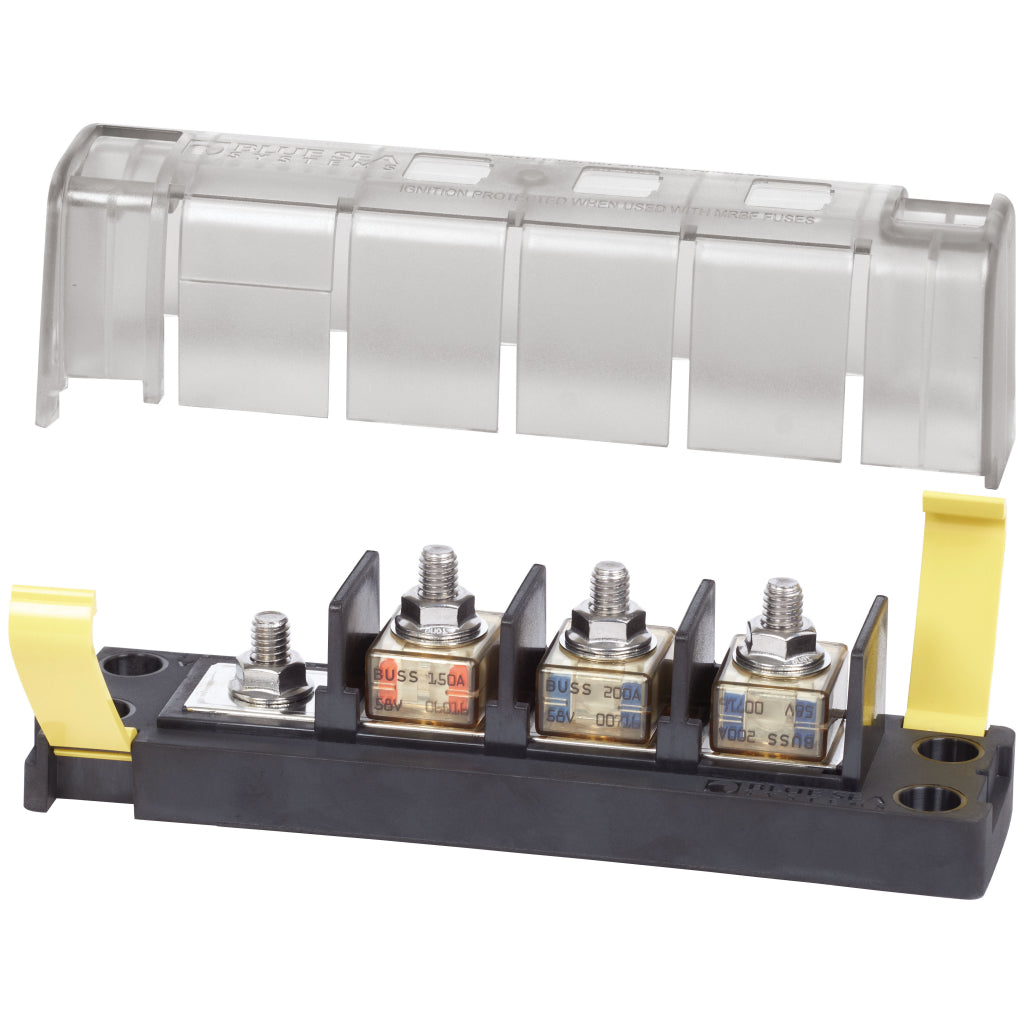

Blue Sea Surface Mount Fuse Block

Item# 5196

Features:

• Accommodates three MRBF fuses for consolidated high amperage circuit protection
• Safely provides power to three loads from a single source
• Clip-on insulating cover satisfies ABYC/USCG insulation requirements
• Versatile wiring options allow all wires to come out a single side
• Label recesses accommodate Blue Sea Systems square format labels for easy circuit identification
• One-piece stainless flange nuts ensure safe, secure connections
• Fuses sold separately

Specifications:

• Ignition Protected: Yes
• Maximum Amperage: 300A per block
• 240A per circuit
• Maximum Voltage:58V DC
• Mounting:Surface Mount M5 (10)
• Maximum Torque:100 in-lb (11.3 Nm)
• Terminal Stud Size:M8 (5/16"-18)
• Weight:1.20lb (0.54 kg)
