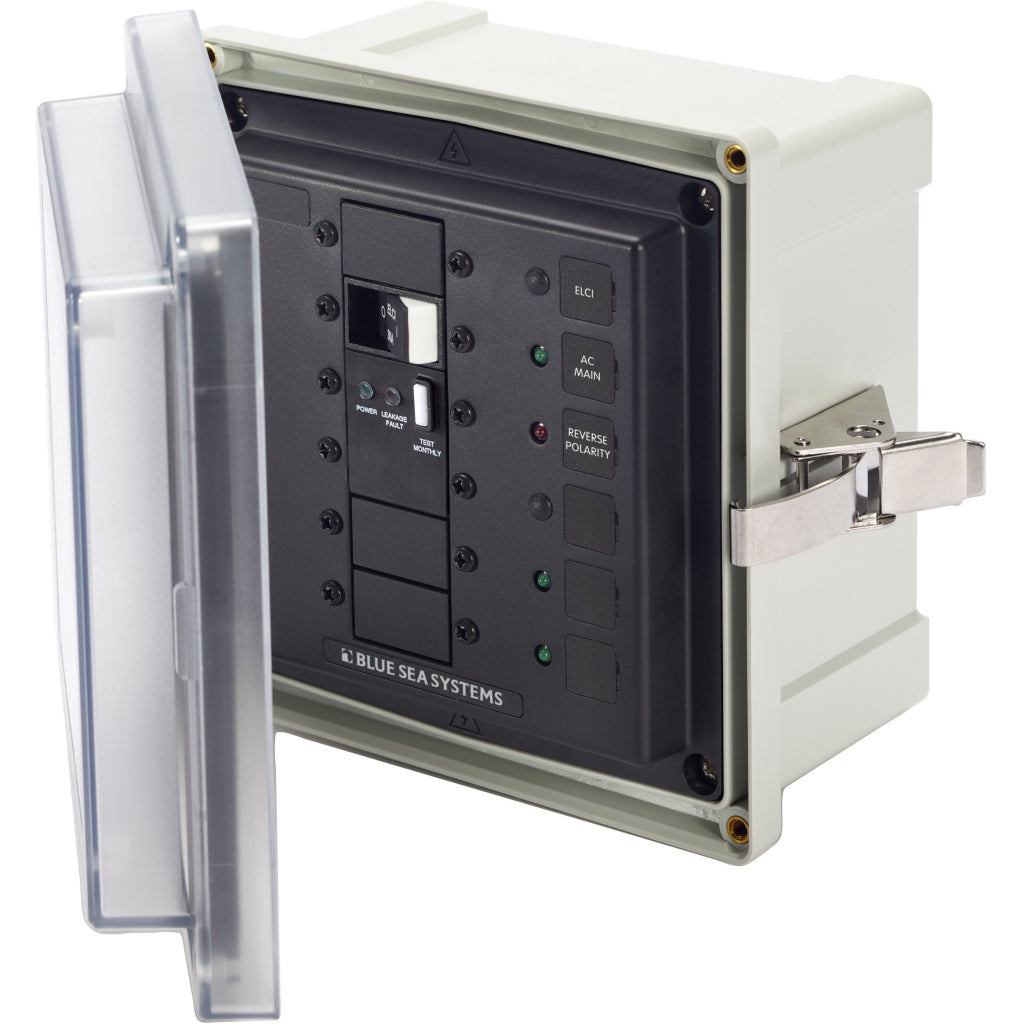

Blue Sea Surface Mount System Panel Enclosure

$748.99
Item Number: BS3118

Blue Sea Surface Mount System Panel Enclosure usually available 2-5 business days upon ordering.

Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet

Features:

  • Includes one 120V AC / 50A ELCI Main and two blank positions
  • Blank apertures for custom breaker loading
  • Glass filled polycarbonate mounting box
  • Clear cover allows easy view of circuit breaker status
  • Overlapping cover for strength and increased gasket protection
  • Oversized, formed in place seamless PUR gasket
  • Easily removable stainless steel hinge pin for unobstructed installation
  • Stainless steel latch secures cover without penetrating the enclosure
  • Blank circuit positions accommodate Carling Technologies˜ A- and C- Series Flat Rocker and ELCI Main circuit breakers
  • Stainless steel mounting hardware included
  • Includes waterproof glands
  • LED lights for back lighting and ON indication

Specifications:

  • Minimum Operating Temperature:-40° C
  • Maximum Operating Temperature:85° C
  • Cover Screws and Hardware:10-32 Stainless Steel
  • Enclosure Size:6.0" x 6.0" x 4.0"
  • (152mm x 152mm x 102mm)
  • Exterior Overall Dimensions:7.6" x 7.4" x 4.7"
  • (192mm x 188mm x 120mm)
  • Mounting Hardware:1/4" Diameter, 12 (6 mm)
  • Weight:7.00lb (3.18 kg)
