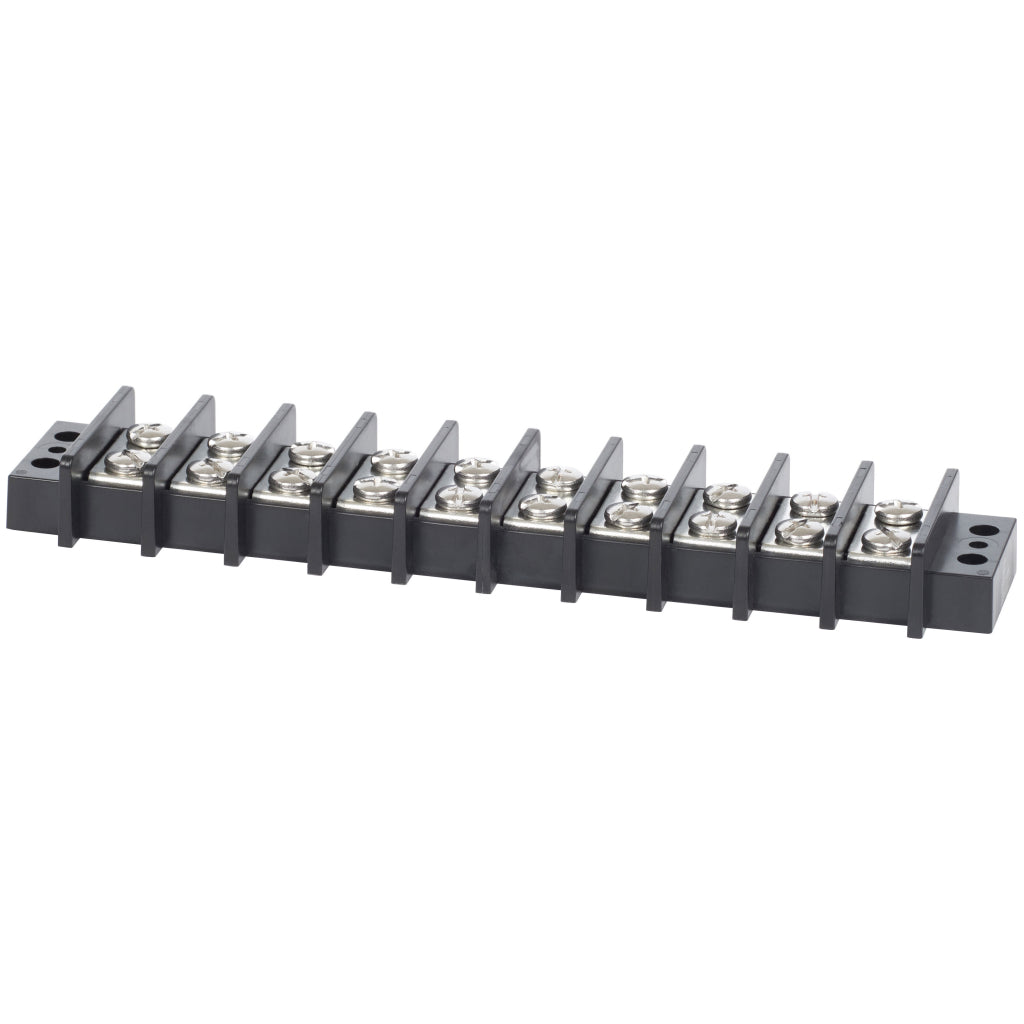

Blue Sea Terminal Block

Item# 2610

Features:

• Closed back design completely insulates power from the mounting surface
• Each screw pair is one isolated circuit
• Jumpers allow creation of common circuits

Specifications:

Circuits:10

Length:8.01in (203.45 mm)

Maximum Voltage:600V AC/DC

Continuous Rating: 65A

Base Material:UL 94 V0, PC

Bus Material:Nickel-Plated Brass

Mounting Screw:10 M5

Screw Material:Stainless Steel

Screw Size:10-32

Screw Terminal Torque:19 in-lb (2.15 Nm)

Terminal Screws:M5

Wire Terminal Size:10 M5

Weight:0.52lb (0.24 kg)
