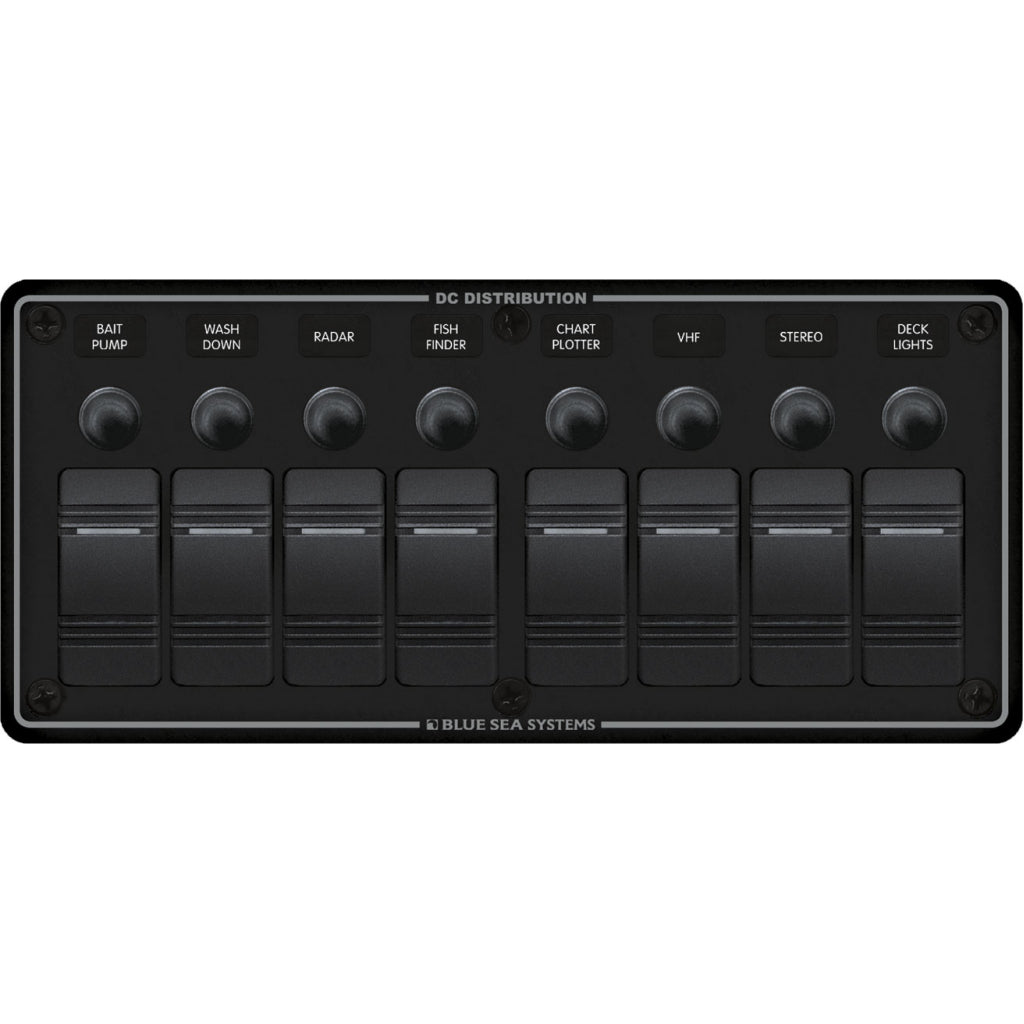

Blue Sea Water Resistant Circuit Breaker Panel

Item# 8371

Features:

• Designed for flybridge and open cockpit applications
• Panel front is rated IP66—Protected against powerful water jets
• Ignition protected—safe for installation aboard gasoline powered boats
• ON-OFF Contura Switches
• ON indicating LEDs embedded in switch
• Watertight mounting gasket
• Push Button Reset-Only circuit breakers with waterproof boots

Specifications:

• Weatherproof: Water Resistant
• Positions:8
• Nominal Voltage:12V DC
• 24V DC
• Panel Cumulative Rating:90A
• Switch Rating:20A 12V DC
• 15A 24V DC
• Height:4.25in (107.95 mm)
• Width:9.37in (238 mm)
• Depth:3.25in (82.55 mm)
• Weight:1.70lb (0.77 kg)
