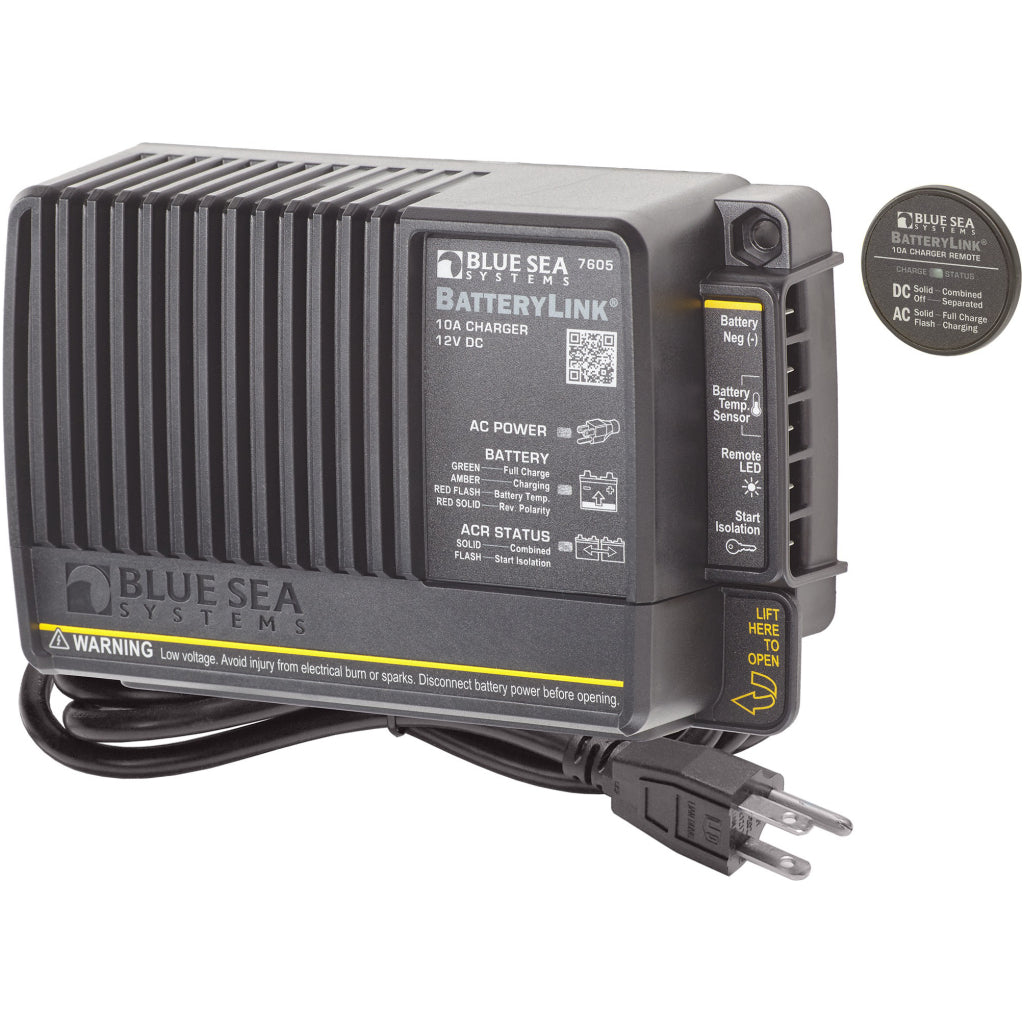

Blue Seas Systems 10A BatteryLink Charger

SKU# BS7605
Check Delivery Time

Blue Seas Systems 10A BatteryLink Charger may require an additional to 2 days to ship.


Rigging Shoppe ships to Canada only. ALL prices listed on this website in Canadian dollars.

Shipping within 24 hours if possible. Delivery usually 2 - 5 business days in Canada.

Shipping charges will be visible before entering credit card information when ordering.

Learn about our complete shipping policy here.

Item# 7605


  • AC charging at the dock: Use AC shore power to charge two isolated battery banks with the 3 Stage 10 Amp battery charger.
  • DC charging away from the dock: Share the DC power from the alternator with both the Start and the Auxiliary battery through the integrated 65A ACR.
  • Battery Temperature Compensation prolongs battery life.
  • Start isolation protects sensitive electronics from voltage sags and spikes.
  • Includes LED remote indicator for charge status at the helm.
  • Snap-on insulating cover.
  • One-piece stainless flange nuts ensure safe and secure connections.


  • Total Output Current:10A
  • Nominal Voltage:12V DC
  • Number of Outputs:
  • 1 negative
  • 2 positive
  • Terminal Stud Torque:60 in-lb (6.78 Nm)
  • Continuous Rating: 65A
  • Intermittent Rating: 115A
  • Universal AC Input Voltage:90-265V AC
  • AC Input Frequency:50/60Hz
  • Typical Float Voltage:13.5V DC
  • Battery Types:
  • AGM
  • Flooded
  • TPPL
  • Cable Size to Meet Ratings:
  • 10 AWG Negative Cable
  • 6 AWG Positive Cable
  • Maximum Battery CCA:850CCA
  • Maximum Cable Size:1/0 AWG (50mm)
  • Operating Current:
  • 10mA
  • 60mA
  • Plug Style:North American: NEMA 5-15P
  • Recommended Battery Bank Sizes:
  • 120Ah Maximum
  • 60Ah Minimum
  • Terminal Stud Size:1/4"-20
  • Combine 30 sec:13.5V
  • Combine 2 Min:13.0V
  • Open 10 sec:12.35V
  • Open 30 sec: 12.75V
  • Weight: 4.00lb (1.81 kg)
