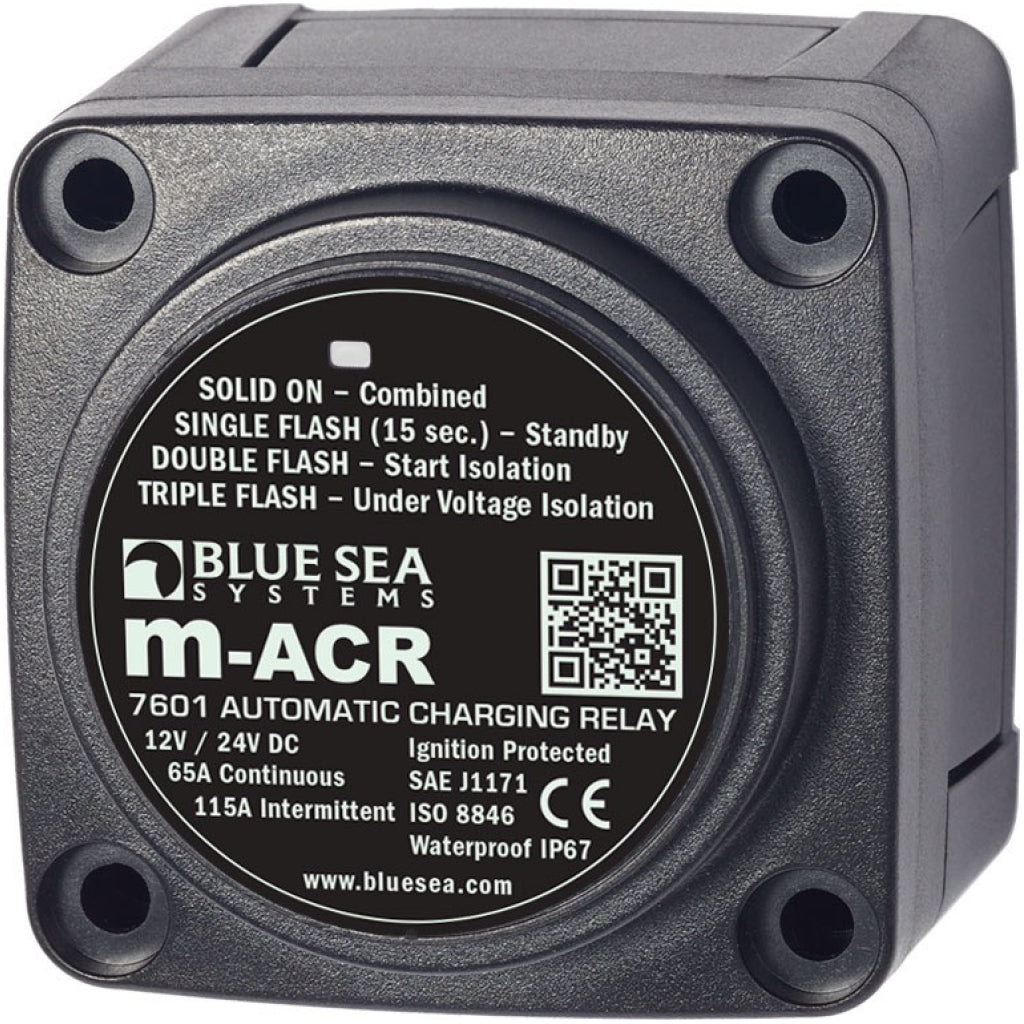

Item# 7601

Features:

• Senses charging on two battery banks.
• Pull off and snap on insulating cover.
• LED indicates ACR status.
• 1 4" x .032" male quick connect terminal for ground.
• 7 16" (11 mm) stud length to accept multiple cable terminals.
• Waterproof – rated IP67 for temporary immersion.

Specifications:

• Nominal Voltage:
• 12V DC
• 24V DC
• Start Isolation:Yes
• Amperage Operating Current:
• 90mA (Combine)
• 15mA (Open)
• Terminal Stud Torque:60 in-lb (6.78 Nm)
• Continuous Rating: 65A
• Intermittent Rating: 115A (5 min)
• Cable Size to Meet Ratings:6 AWG
• Maximum Cable Size:1/0 AWG
• Stud Material:Tinned Brass
• Terminal Stud Size:1/4" - 20 (M6)

• Relay Contact Position:

• Combine 30 sec:13.6V DC
• Open 10 sec:12.35V DC
• Open 30 sec:12.75V DC
• Open High:16.0V
• Under Voltage Lockout: 9.5V
• Weight:0.80lb (0.36 kg)
